| Operating Temp/Humidity:: | -20~+50℃/10~90%RH | Protection Level:: | IP65/IP54 |
|---|---|---|---|
| LED Type: | SMD3535 | Colour Temperature:: | 3500K-9500K(adjustable) |
| Best Viewing Distance:: | 8m~150m | Refresh Rate: | >1500HZ |
| High Light: | curved led panels,hd led screen |
||
IP65 P8 outside SMD curved LED video screen seamless splicing convex and concave
Description:

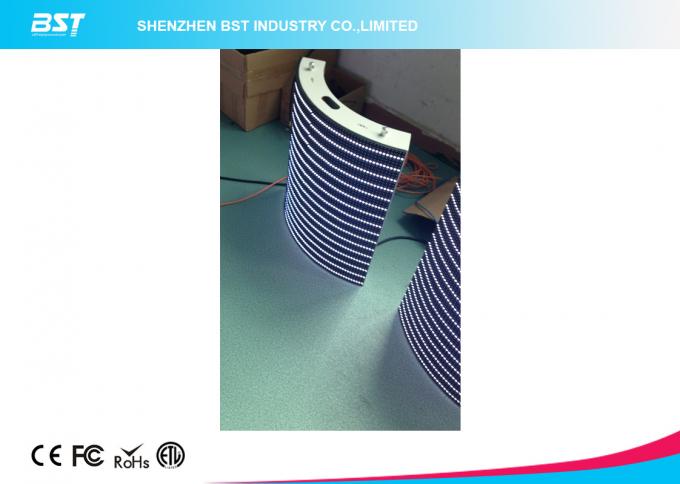

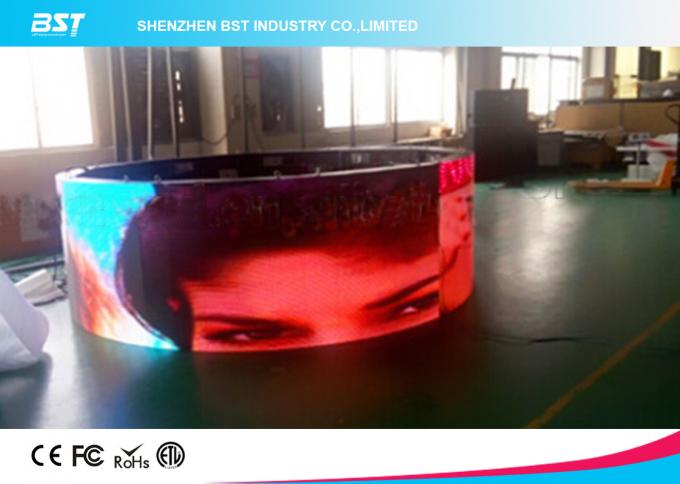

1. It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can
be shaped into column to wrap pillars for animation decoration.
2. Easy to maintain and Operation
3, High resolution, high contrast ratio, wide viewing angle.
4. The brightness can be adjustable for different environment.
5. We make best design with high cost- efficiency due to different demands and we can offer OEM service
as well.
6. Good quality, the brightness is adjustability
7. Wide viewing angle
8. Good consistency,large stock
9. More than 100,000hours life span
10. With good lightening accordance and no mosaic
11.Led advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
12. Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
Specification:
|
Item |
Technical Specification |
|
Pixel |
Pixel pitch: 8mm |
|
Pixel configuration: SMD3535 1R1G1B |
|
|
Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm |
|
|

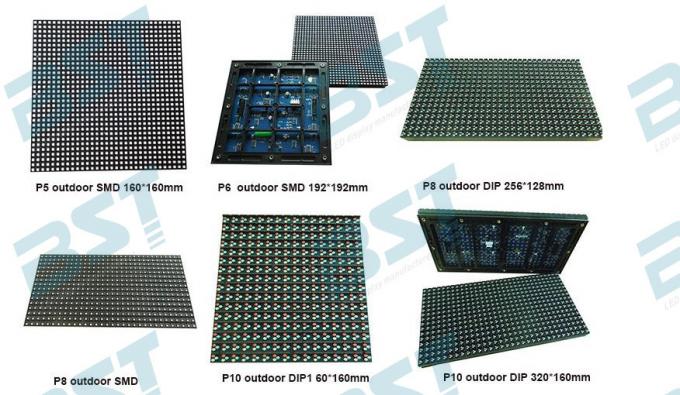

Module resolution: 32×32pixels |
|
|
Module |
Module size: 256mmx256mm |
|
Cabinet size: 1024mm×1024mm×150mm |
|
|
Cabinet |
Cabinet resolution: 16384 pixels |
|
Cabinet material: Steel |
|
|
Gross weight: 65kg |
|
|
Module quantity: 16pcs= 4(w) x 4(h) |
|
|
Power consumption : Max.:800W/m² Everage: 300W/m² |
|
|
Screen parameter |
Drive method: 1/4 scan |
|
Brightness: 6500cd/m² |
|
|
IC driver: MBI 5214 |
|
|
Density: 15625 pixel/m² |
|
|
Whole display flatness: ≤ 1mm juncture |
|
|
Best view distance: ≥ 8m |
|
|
Viewing angle: Horizontal: 140° Vertical: 140° |
|
|
Humidity(RH): ≤ 90~95% |
|
|
Working temperature: from -30°C to +60°C |
|
|
Working voltage: AC220V/110V±10% |
|
|
Refresh frequency: ≥ 1500Hz |
|
|
Frame rate: ≥ 60Hz |
|
|
Protection grade: IP65 |
|
|
MTBF: More than 10000hrs |
|
|
Life time: 100,000 hrs |
|
|
Control system |
Control system: Linsn |
|
Signal interface: DVI |
|
|
Communication distance: Internet cable: ≤120m / Fiber cable: 1000m |
|
|
Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000, WIN8) |

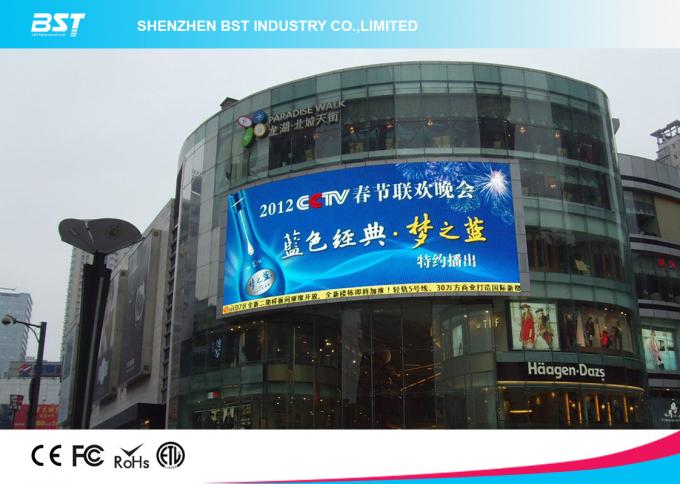

P8 outdoor curved LED video screen
Application:
Video, graphics, stadiums, studio, sports, animation, advertising, banks, stock exchange centers, bus station, schools, railways, airports, harbors, telecommunications, customs, exhibitions,shopping malls, etc;
