| Pixel Pitch: | 4.81mm | Led Type: | SMD2121 |
|---|---|---|---|
| Warranty: | 2years | Screen Dimension: | Customized |
| Driving Method: | 1/16 Scan, Constant Current | Display Function: | Video |
| High Light: | advertising led display screen,led wall display screen |
||
P4.81 1R1G1B Die Casting Aluminum Indoor Advertising Led Display Screen With 1/16 Scan
Quick Detail:
1. Clear picture without flicker and distortion
2. Play effect: bright colors, high contrast, show natural signal
3. Low consumption, stable performance, highly durable
4. High flatness: using CNC cabinet,the cabinet flatness ≤0.1mm
5. 2 years warranty, easy to install & maintenance
6. Standing/hanging Verticaily/horizontally
7,Large area splicing: play HD video and advertisements
Description:
1. Seamless Connection

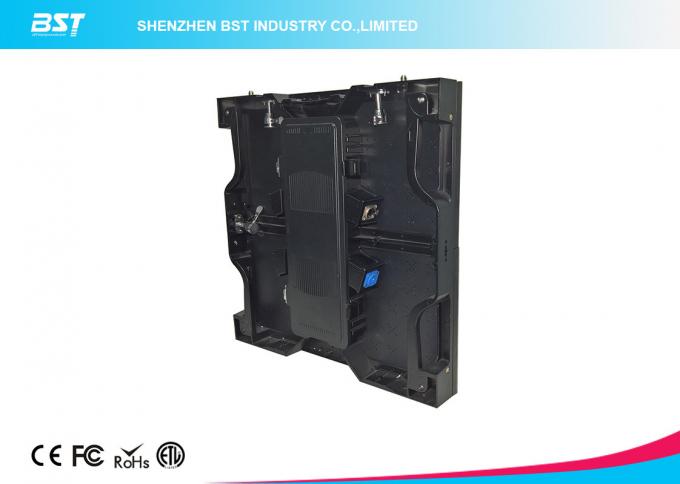

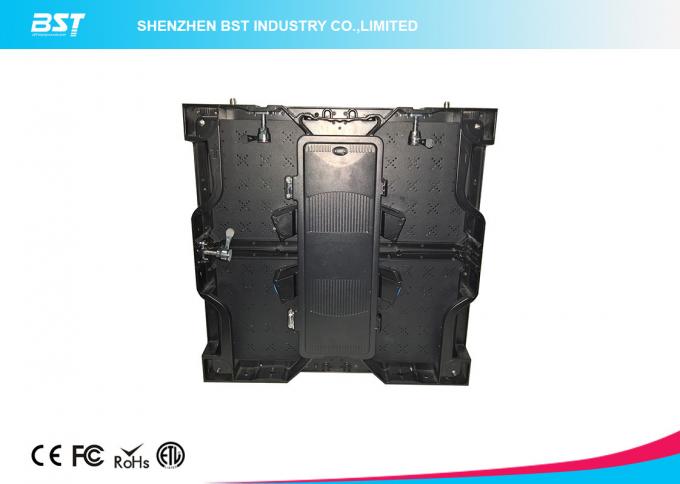

New design, suitable for indoor use, brightness adjustable facing the sunshine directly, neither flick nor color blocks.Die casting aluminum cabinet size 640mm*640mm, seamless connection, 0.1mm gapline between 2 cabinets.
2. Quick and Easy Installation in 5 Seconds
Fast lock for quick and easy installation. Maximum support 50pcs hanging in a column. Fast locks design, cabinets can be easily assembled in 5 seconds.
3. Support All Media Format and Display Mode
Support all media format, also support DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program, VCD/DVD and live show.
4. Cost Saving for Installation and Maintenance
Dual-maintenance, fanless, noiseless, low power comsumption. Vertical / Horizontal viewing angle 140 degree.Calibration for high quality picture. Cost saving for installation and maintenance.
5,Portable and easy transport which can save transport cost and labor cost
6,Very competitive price in the market. We have strict purchasing control system and company operation management system.
7,Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 140 degrees

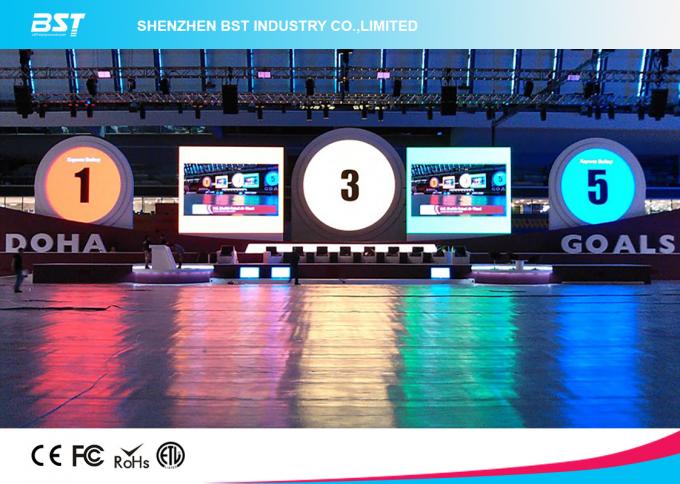

Applications:
Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
Competitive Advantage:
1. 2years guarantee with life-time maintenance and charge for the raw materials only.
2. 7×16h after-sales service by E-mail, call, skype, whatsapp, or other ways for free.
3. Free training for buyers in factory. We provide the operation manual, software, test report and so on.
4. Monthly phone call feedback.
5. We will send our engineers to your country by negotiation.
6. Provide local installation guidance by negotiation
Specification:
|
BST-IA-4.81 Indoor full color led display screen ( Specification ) |
||
|
Unit module
|
Module size |
250mm(W)*250mm(H) |
|
Pixel pitch |
4.81mm |
|
|
Pixel density |
43264dots/square meter |
|
|
Pixel configuration |
1R1G1B |
|
|
Pixel resolution |
52dots(W)*52dots(H) |
|
|
Screen thickness |
≤75mm |
|
|
Dimension of cabinet |
500*500mm |
|
|
Best viewing distance |
3.5~45m |
|
|
Best viewing angle |
140°(H)/ 140°(V) |
|
|
Operation humidity |
10%-95% |
|
|
Material |
Die casting Aluminum |
|
|
Power |
Avg. Power consumption |
500W/square meter |
|
Max. Power consumption |
≤900W/square meter |
|
|
Control system |
Control system |
DVI display card plus full color control card |
|
Operating system |
WIN2000/NT/XP/7/8 |
|
|
Control method |
Synchronization/asynchronism |
|
|
Main technical parameter |
Scan mode |
1/16 scanning
|
|
Refresh frequency |
≥1500Hz/s |
|
|
Gray scale |
256 levels of each color (R/G/B) |
|
|
Colors |
16.7M colors |
|
|
Brightness |
≥1200nits/sqm |
|
|
Life span |
≥100,000 hours |
|
