| Pixel Pitch: | 2.5mm | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Material: | Die Casting Aluminum | Led Type: | SMD212 |
| Cabinet Size: | 480mm X 480mm | Color: | Full Color |
| Brightness: | > 1000nits/sqm | ||
| High Light: | indoor led display screen,led wall display screen |
||

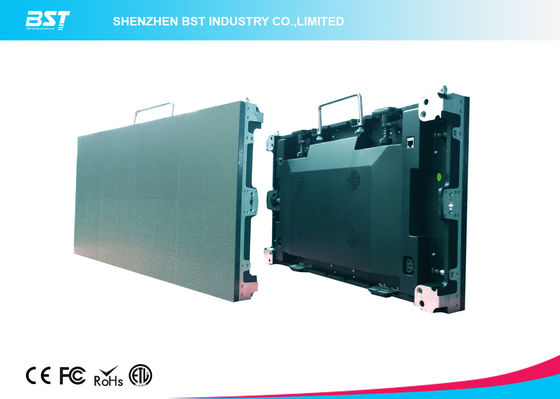

P2.5 indoor advertising LED Display, HD Flexible LED Video Display 480 x 480mm Cabinet Size
Quick Detail:
1. Random dismantling, convenient maintenance
2. High Brightness can be adjusted, so can meet the request of the customers according the application environment.
3. High refresh,Ghost-free image;
4. Good quality, commendable solve the problem of the mosaic, have the excellent consistency of light
5.Signal and power double backup for module interfaces
6.Customized design is available,OEM & ODM are welcomed.
Description:
1. Widely application field and short ROI time.
2. High contrast ratio:4000:1. Which is a pretty high level to ensure vivid image of Led display screen
system.
3. First-level Led chip. Supplied by Nicha of Japan, CREE of USA, and other high strictly selected Led
chip to ensure long lifespan and high brightness of Led display screen system.
4.Clear Vivid image quality displaying. Even in direct and full-on sunlight day to ensure you attract more
audience to get short ROI of your Led display screen's investment.
5. Easy installation and programming. Easy and simple installation interface, use friendly software to ensure the user programme the Led display screen system.
6. Convenient servicing. Front and rear cabinet access makes maintenance work very convenient and
low cost to help you concentrate more time and energy on your main marketing promotion business.
Applications:
Commercial advertising Led display screen, Stadium perimeter Led display screen, mobile trailer led display,led screen for mobile media, shopping mall led display, screen for logo showing,led display for bank or stock exchange rate showing, led moving sign for train and bus station, Led display screen for air port,telecommunication led display screen for information showing and instruction and ect.
Competitive Advantage:
1.Performance advantage: Best equality, high consistency ,big viewing angle ,can repair each led lights.
2.The cabinet adopts advantages in high strength, excellent ductility, and good precision and is difficult to deform.
3. Price advantage: we have the best competitive price and the same even better quality at the market
4.The cabinet design is simplified to be compatible within different dot pixels; also it is with good cooling design without fan or air condition etc. which reduces cabinet weight, and lowers noise; low installation cost and low consumption save operating cost.
5,Product advantage: we have 16 years experience to encapsulate.
6.Module designed cabinet is easily assembled and installed at any location, its maintenance is very convenient.
7.The led screen cabinet is light weight. It could be carried by one hand, could be installed quickly within 10 Seconds.
8.Service advantage: Better service at the same situation, better cooperation at same service!
Specification:
| odel Number | Ultral HD indoor full color P2.5 led display |
| Description | Die-casting Aluminum cabinets with hanging function |
| Application | Indoor use, AV rental |
| Pixel configuration | SMD2121 black led |
| Pixel pitch | 2.5mm |
| Cabinet pixel resolution | W 192 x H 192pixels |
| Cabinet dimension | W: 480mm, H: 480mm, T: 75mm |
| Module size | W: 240mm, H: 240mm |
| Module pixel resolution | W 96 x H 96 pixels |
| Pixel density | 160,000dots/sqm |
| Minimum viewing distance | 2m |
| Brightness | 8,00nits |
| Grey scale | 16 bits |
| Color Number | 68.7194billion |
| Display Mode | Synchronous with video source |
| Data refresh rate | ≥2880HZ |
| Driver IC | MBI5124 |
| LED drive | 1/30 scanning, constant current |
| Control system type | Novastar, Linsn |
| Control software name | Nova studio, LED studio |
| Viewing angle | Vertical 140° Horizontal 140° |
| Temperature range | -20℃ to +60℃ |
| Ambient Humidity | 10%-99% |
| Service access | Rear |
| Cabinet weight | 7kg |
| Power Consumption | Max: 600 w/m2; Average : 300w/m2 |
| Protection Level | Front: IP43 Rear: IP43 |
| Lifetime to 50% brightness | 100,000hr |
| LED Failure Rate | <0,00001(Led display line standard <0,0001) |
| MTBF | > 100.000 hours |
| Input power cable | AC110V to 220V |
| Signal input | DVI |
| Warranty | 2 Years quality warranty |
