Product Details:
Payment & Shipping Terms:
|
| Power Supply Brand:: | Meanwell | Driving Method:: | 1/2 Scan ; 1/4 Scan |
|---|---|---|---|
| Drive IC:: | JXI5020/MBI5120/MBI5124 | Luminance Of White Balance:: | ≥6000 Nits |
| Standard Cabinet Size:: | 960*960mm | LED Chip:: | Epistar/Silan |
| High Light: | curved led panels,hd led screen |
||

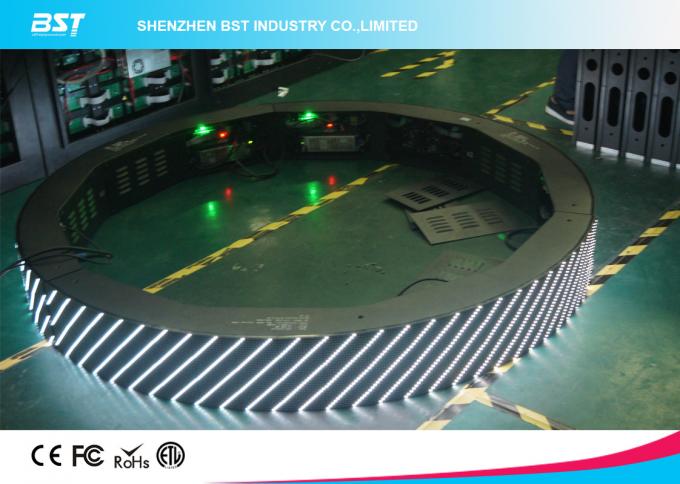

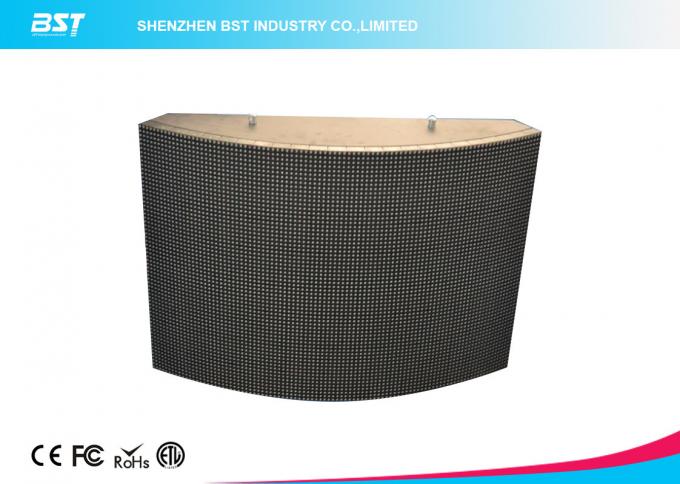

IP65 wateproof P10mm Flexible Curved Led video Screen For Outdoor Wall Decoration
Products Description:
1. Good quality, the brightness is adjustability
2. Wide viewing angle
3, 45degree of inclined frame design is suitable for assembly into arbitrary curve display surfaces
4. Good consistency,large stock
5. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens etc.
6. High anti-aging material, as well as high protection level, which makes it perfect for any complicated application
7. Inner or outer curve 0-45 degreen, seamless connection
8. Professional flight plugs, stable and safe
9. RGB meticulous gray level adjustment to make a abundant and exquisite colors and clear nature images
10.Wind resistance, good heat dissipation
11. Extremely narrow gap between modules contributes to clear image and smooth transition between modules without interval.
12.Stable performance, wide applicability, high brightness, high protection grade.
13.Outdoor P4,P4.81,P5, P6, P6.25, P6.94, P7.62, P8.928, P10, P12, P12.5, P14, P16, P20, P25 ,P31.25, P45
14. Indoor P1.6,P1.9,P2.5,P3, P4, P5, P6, P7.62, P8, P10, P12
Specification:
|
Curved LED Display Series |
BST-OCV-8 |
BST-OCV-10 |
|
Pixel Pitch(mm) |
8 |
10 |
|
Color Temperature(after calibration)K |
6500 |
6500 |
|
Pixel Density(dots/m2) |
15625 |
10000 |
|
Horizontal/Vertical Viewing Angle(º) |
H140º/V140º |
H140º/V140º |
|
Grey Scale(bit) |
R’G’B 16bit |
R’G’B 16bit |
|
Life Time(H) |
≥100000 |
≥100000 |
|
Avr Power Consumption (W/M2) |
≤600 |
≤600 |
|
Module Size(W*H*D)(mm) |
256x256 |
160x160 |
|
Weight(kg/Panel) |
65 |
75 |
|
Brightness Max(cd/m2) |
≥6500 |
≥4500 |
|
Weight(kg/m2) |
65 |
65 |
|
LED Type |
SMD3535 |
SMD3535 |
|
Cabinet Material |
Epoxy paint coated, aluminum / iron |
Epoxy paint coated, aluminum / iron |
|
LED Chip |
Epistar |
Epistar |
|
Malfunction dot rate |
1 / 10000 |
1 / 10000 |
|
Recommended Viewing Distance(m) |
8--100 |
10-100 |
|
Driving Chip |
MBI5124 |
MBI5124 |
|
Contrast |
2000:1 |
2000:1 |
|
Refresh Rate(Hz) |
≥1500 |
≥1500 |
|
Driving Method |
1/4 |
1/4 |
|
Frame Rate(Hz) |
50/60 |
50/60 |
|
Protection |
Outdoor |
Outdoor |
|
Protection |
IP65 |
IP65 |
|
Max Power Consumption(W/M2) |
1000 |
1000 |
|
Working Temperature |
-20C°/40C° |
-20C°/40C° |
|
Working Humidity |
10%-95% |
10%-95% |
|
Control Input |
DVI/HDMI/HDSDI |
DVI/HDMI/HDSDI |

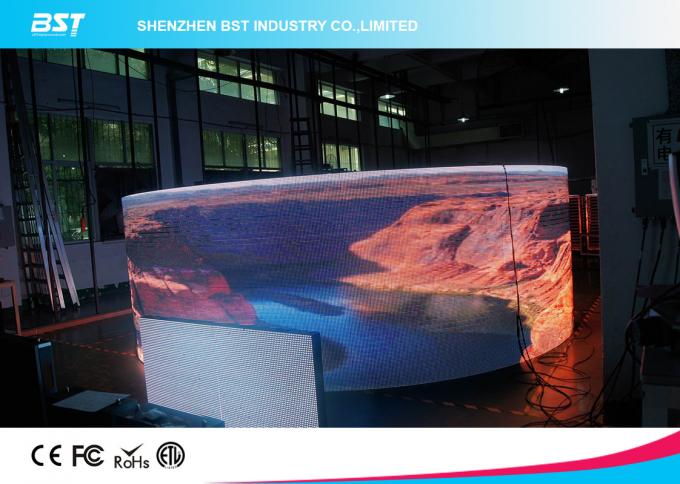

P10 outdoor Curve LED Display

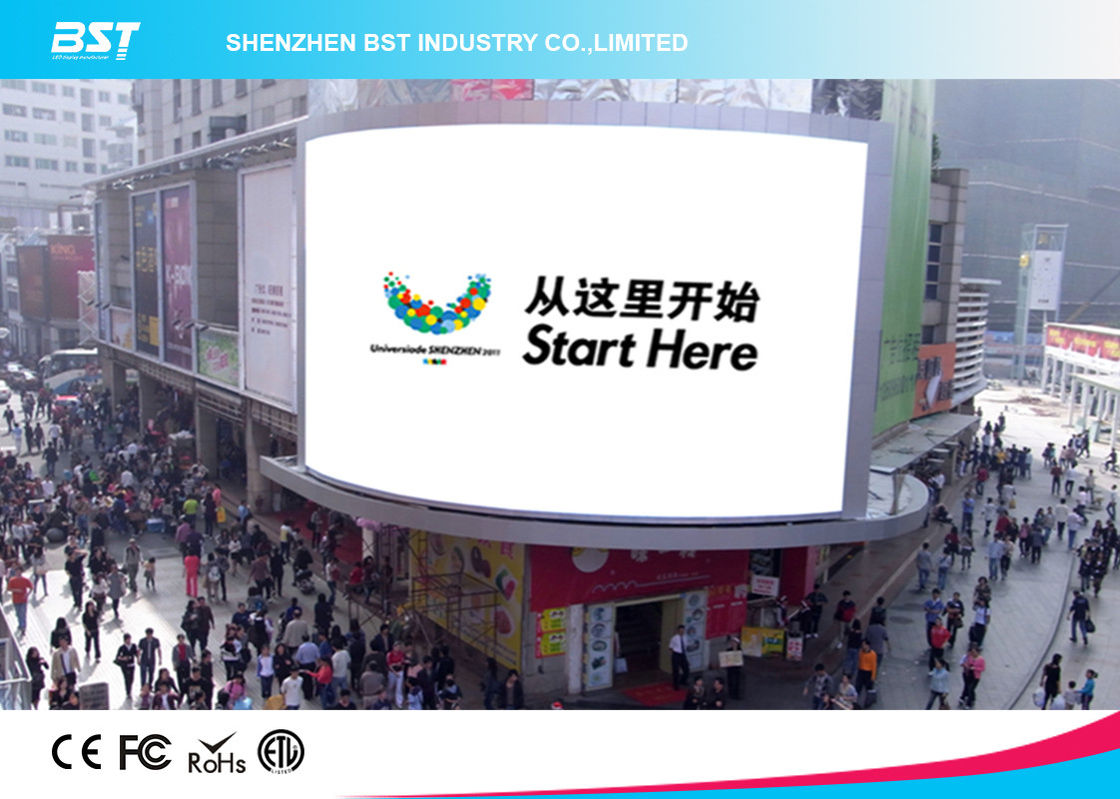

Application:
Video, graphics, stadiums, telecommunications, customs, exhibitions,shopping malls animation, advertising, banks, stock exchange centers, bus station, schools, studio, sports,railways, airports, harbors,, etc;
