Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Video Wall | Pixel Pitch: | 10mm |
|---|---|---|---|
| LED Type: | SMD3535 | Density: | 10000dots/sqm |
| Module Size: | 160mm X 160mm | Cabinet Size: | 1280mm X 960mm |
| High Light: | curved led display,curved led panels |
||

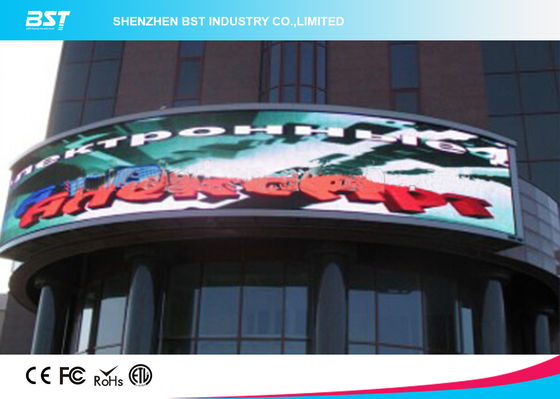

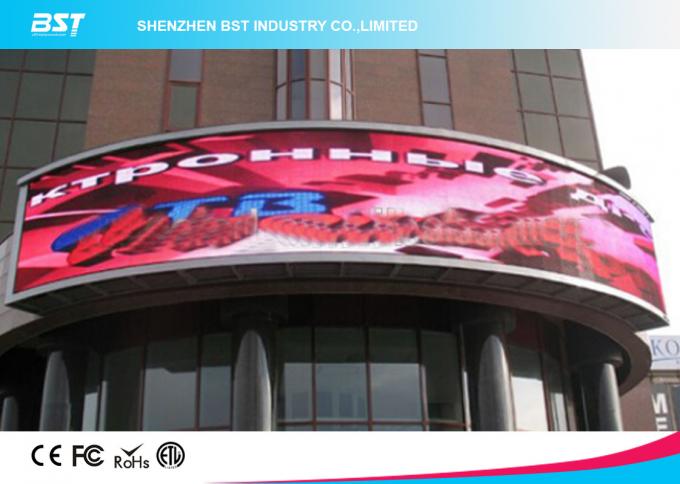

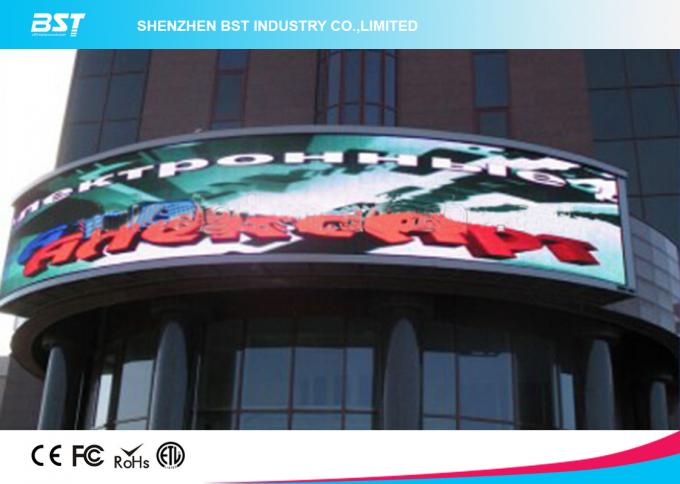

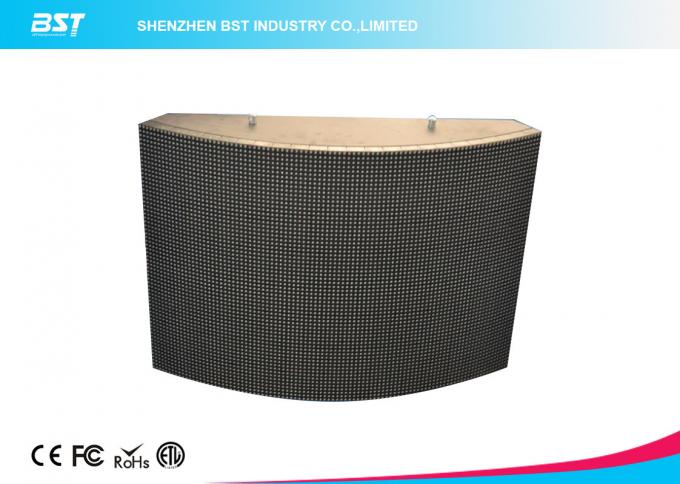

Circular P10 Curved Led Screen Pixel Pitch 10mm Outdoor Full Color Led Display
Quick Detail:
1, Easy and fast installation and maintaining design
2, Performance advantage: vivid and colorful display, quick response
3, 2 year warranty and long term after-sale service
4, High quality with competitive price
5, General Module design makes perfect flatness and uniform on the surface
6, Stable and short delivery time

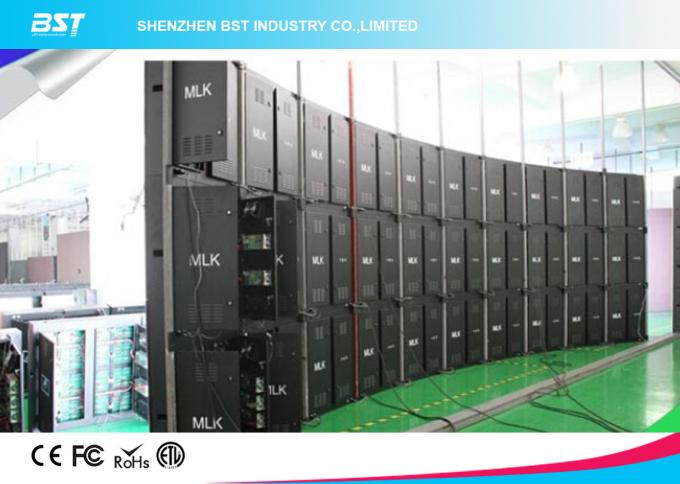

7,15degree of inclined frame design is suitable for assembly into arbitrary curve display surfaces
8,Elegant structure, highly waterproof IP65 protection rating and excellent heat dissipation.
9, Customized LED display size and structure
10, High brightness: > 5500cd / sqm, can be adjustable
11, Auto power on/off, work unattended & Electrical surge protection.
|
BST-OCV-10 (Pitch 10mm outdoor full color) |
|
|
Colour temperature |
5000~9000 k |
|
Pixel structure |
SMD3535, 1R1G1B |
| Input voltage | AC 110/220 volts |
|
Pixel pitch |
10mm |
| Module resolution | 16 pixel(W) * 16 pixel mm(H) |
|
Pixel density |
10000 dots/㎡ |
| Cabinet area | 1.2288 sq. meter |
|
Luminance |
5000cd/㎡ |
|
Cabinet dimension |
1280 * 960mm |
| Module dimension | 160mm(W) * 160mm(H) |
|
Optimal visual distance |
>10m |
|
Visual angel |
140 / 140 degree (H/V) |
|
Max power consumption |
≤1000w / ㎡ |
| Refresh frequency | ≥1500HZ |
|
Brightness adjustment |
Adjust according to the environment |
|
brightness software (0%-100%adjustable) |
|
|
Gray scale |
point by point 4096 gray grade levels of |
|
each color, 16 bits γ correction available |
|
|
Drive mode |
Static, constant current |
| Cabinet resolution | 128 * 96 |
|
Frame frequency |
≥60HZ |
| Average power consumption | ≤600w / ㎡ |
|
Operation temperature |
﹣40℃~ +65℃ |
| Input signal | S-video, RF, RGB, Yuv, YC, composite… |
|
Control system |
DVI card + master control card + receiver card |
|
MTBF |
>5000 hrs |
| Operation humidity | 10％～90％ |
|
Life span (50% brightness) |
100, 000 hrs |
|
Malfunction dot rate |
1/10000 |
| Cabinet material | Epoxy paint coated, aluminum / iron |
|
Ingress protection rate (Front/ rear) |
IP65 / IP54 |
|
Application: |
Rental / Permanent installation available |
Application:
Stadium, sports, exhibitions,shopping malls, banks, stock exchange centers, bus station, schools, telecommunications, customs, railways, airports, harbors,video, graphics, animation, advertising, stadiums, studio, etc;
• Guarantee and Service:
(i) Warranty is for 1-3 years.
In the warranty Period, we will maintain and replace the defect components for free, if the problem belongs to us. But you should pay for both sides shipping fee.
After warranty, we only charge the material cost, you should be responsible for shipment.
(ii) Free training:
You can send your engineers to our factory for one week free training, which includes the software operation, installation, adjustment, basic repairing, etc.
(iii) Technical Support:
If needed, we can send our engineer to guide the installation for you. But the relevant cost should be paid by your company such as visa, hotel, food, both trip plane ticket, and also USD100/day/staff (from our engineer’s departure from Shenzhen) and should help to arrange our staff visa.
