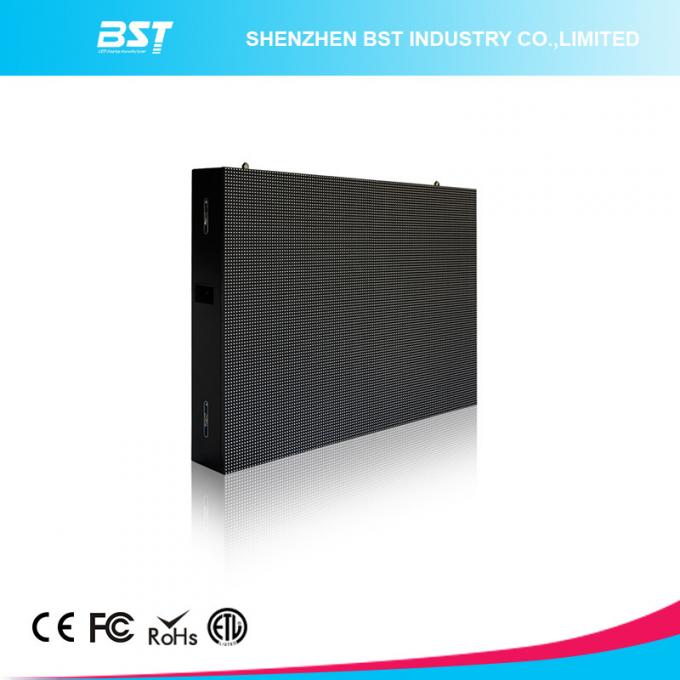

High Resolution P3 Indoor Advertising LED Display with Epistar SMD2121 Black LEDs
Quick Detail:
1. Pixel pitch: 3mm,Pixel Density: 111111 dots/m2
2. SMD2121 Epistar black LEDs with Full color
3. 15000 pcs modules per day and 50000 square meters display screen per month
4. module Size: 192*192mm,resolution: 64*64pixels
5. Own designing team for new products development
6,Accept OEM and ODM
Description:
1. Screen cabinet is made of aluminum material, the effect of heat dissipation is remarkable.
2. Light weight, the weight of the cabinets less than 25 kg; with fast spring lock and easy installation.
3. The module can be quickly removed and easy to maintain.
4. Simply perfect appearance, cabinet is adopted die casting molding, high precision and can be realized fine adjustment.
5. Has a great universality and easy to upgrade.
6. Different pixel pitches are available.

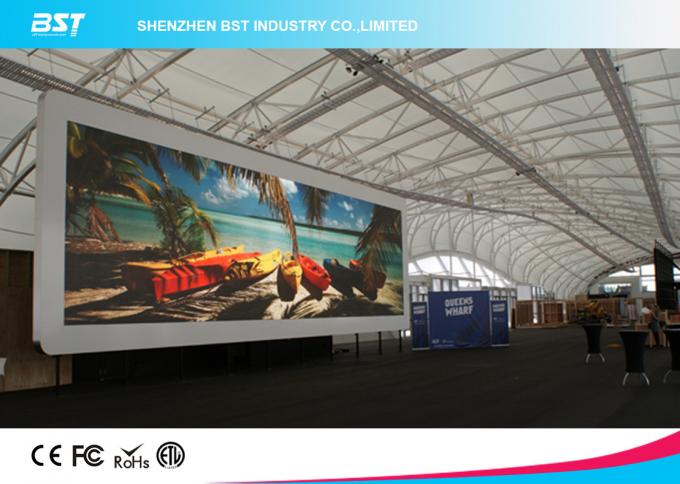

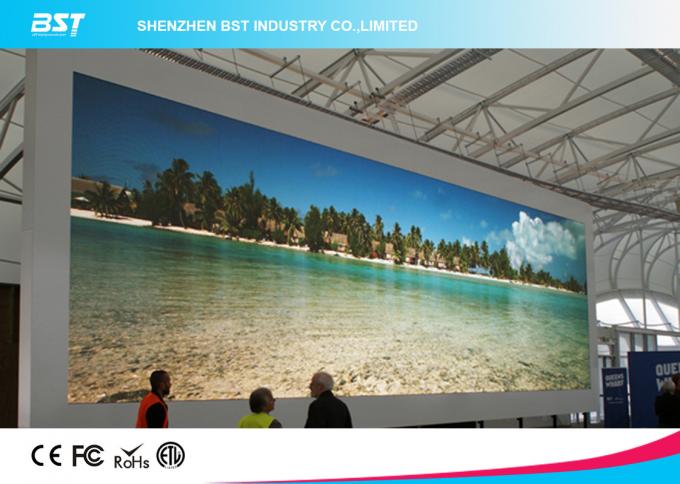

Applications:
Entertainment complexes, Churches, Restaurants, Showrooms, Casinos, Convenience Stores, Banking,
Government facilities, Theatres and Retail outlets etc.
Competitive Advantage:
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.During this time, we will replace or repair our goods for free if there is something wrong with them.
2. 7 days a week, 18 hours a day on-line technical support for any clients by E-mail, call, Skype or other ways for free.
3. Free training for customers in factory which contains the operation training and maintenance training in the factory.
4. Local Installation Guidance Service. We also will send our engineers to your country by negotiation
Specification:
| P3 Full Color Indoor Module | ||
| Item | Unit | Parameter |
| Pixel Pitch | mm | 3 |
| Pixel Density | dots/sqm | 111,111 |
| Resolution of Module | dots | 64×64 |
| Module Size | mm | 192×192 |
| HUB | 75A | |
| Led Package | SMD2121 Black LEDs | |
| Pixel Configuration | 1R1G1B | |
| Chip Brand of LEDs | Epistar | |
| Module Weight | kgs/pc | 0.3 |
| Brightness (White Balance) | nits(cd/sq.m) | 1200 |
| Red Wavelength | nm | 620-625 |
| Green Wavelength | nm | 520-525 |
| Blue Wavelength | nm | 470-475 |
| Scan Mode | 1/16 Scan | |
| View Distance | M | 3~100 |
| Best View Distance | M | 5~30 |
| Viewing Angle-Horizontal | deg. | 140 |
| Viewing Angle-Vertical | deg. | 140 |
| Module Maximum Power | W | 12 |
| Max. Power Consumption | W/sq.m | 600 |
| Avg. Power Consumption | W/sq.m | 200 |
| Working Voltage | 40A 5V | |
| Power Supply | AC 110/220V | |
| Waterproof Grade | IP43 | |
| Refresh Rate | Hz/S | >1,500 |
| Frame Rate | Hz/S | ≥ 60 |
| Gray Scale | 4096 grades gray | |
| Display Color | 256*256*256 | |
| Display Function | Text,news,advertising,flash,animation | |
| Input Signal | RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI | |
| Luminance Degradation | Less than 5% after 1000 hours Ageing test | |
| Defective Dot Rate | <0.0002 | |
| Life Span | hours | 100,000 |
| MTBF | hours | >10,000 |
| Storage Temperature | °C | 45 |
| Working Temperature | °C | 60 |
| Working Humidity | 10%-90%RH | |
| Control System | Synchronization or Asynchronization | |
| Warrenty | 2 Years | |
| Working Environment | Indoor | |
| Other Fertures | LED&ICs in Departed PCB | |
