| LED Chip:: | Epistar Cree Nicha | Power Consumption (Max):: | 700W/sq.m |
|---|---|---|---|
| Power Supply:: | Meanwell G-enery | Pixels Per Sqm:: | 3906pixel/sqm |
| Viewing Distance:: | Distance: 16~300m | LED Type:: | SMD3535 |
| High Light: | curved led display,curved led panels |
||
P16 SMD3535 Outdoor Flexible Curved LED Display screen with higher brightness & water proof for shopping certer
Quick Detail:
1, Strict predelivery test
2, Different video frequency can be changed freely at the same time, and the image
can be enlarged and reduced.

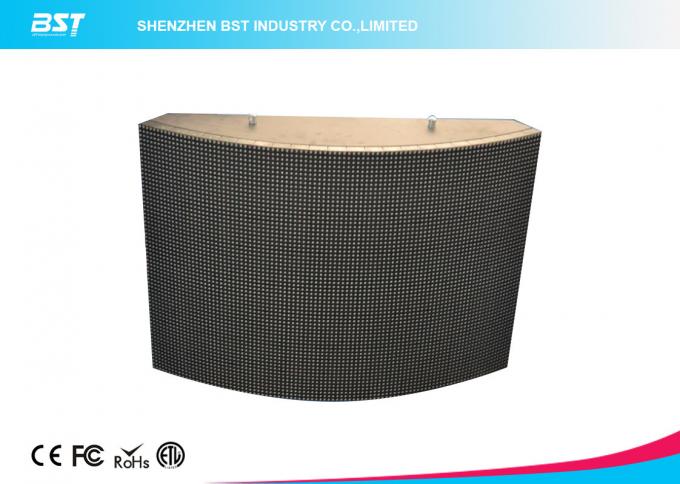

3, 45degree of inclined frame design is suitable for assembly into arbitrary curve display surfaces
4, High quality with reasonable price
5, Low power consumption, energy saving
6, Any led in each pixel can be respectively replaced, which reduce the cost of the display maintaince.
7, Large viewing angle,both H/V can reach 140 degree;getting vivid effect within any position of the viewing range;
8. Can show dynamic video frequency real time and locale hookup.

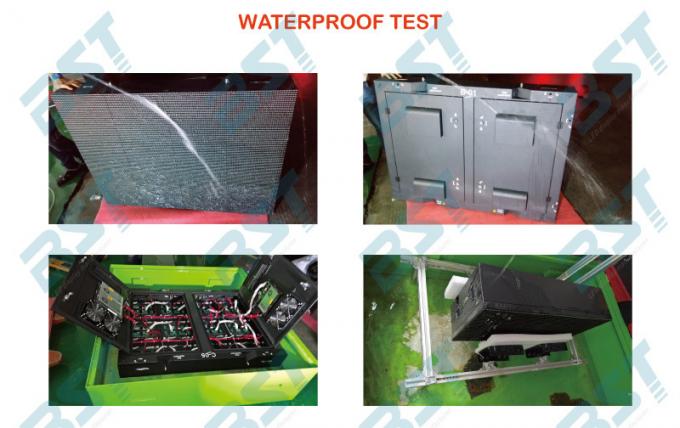

9, High protective rank: reach IP65 protection.
10, High contrast ratio and good evenness, high uniformity,without mosaic
11, Can compile facture and play through the computer.
12. Major used dynamic advertisement information issuance system.

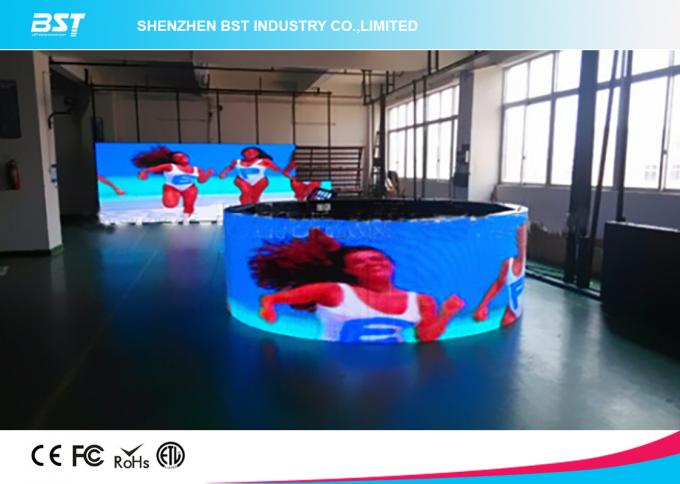

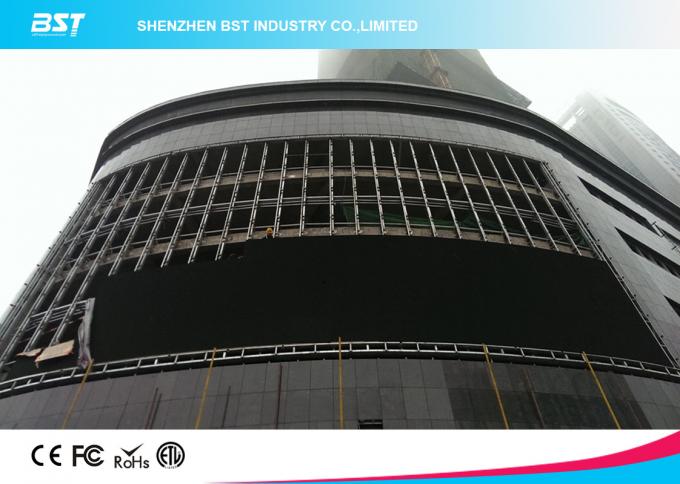

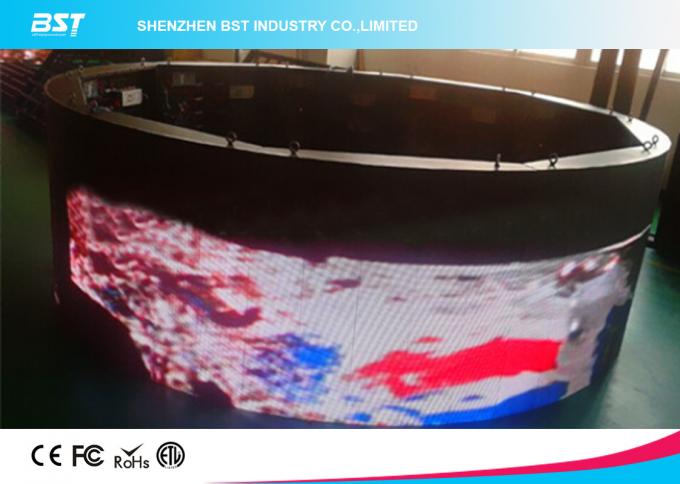

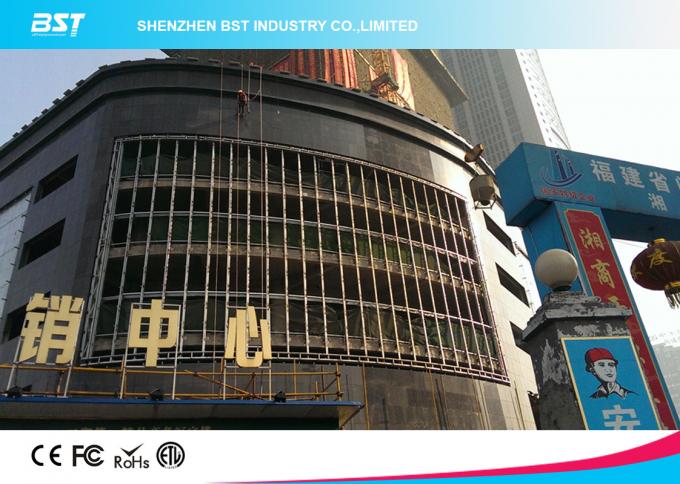

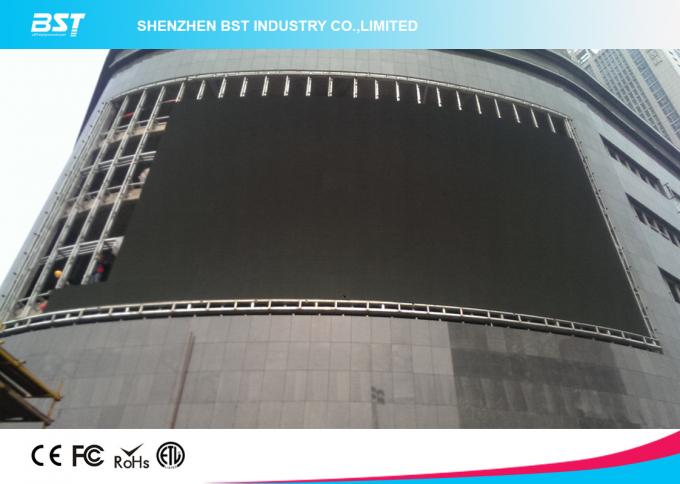

13,It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can
be shaped into column to wrap pillars for animation decoration.
Specifications:
Outdoor LED Display Technical Parameter
|
Model No. |
BST-OCV-16 |
|
Pixel Pitch |
16mm |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Module Size |
256mm×256 mm |
|
Refresh Frequency |
>1500HZ |
|
Pixel Density |
3906dots/m2 |
|
LED Type |
SMD3535 |
|
Pixel Configuration |
1R1G1B |
|
Color Capability |
16777216 |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
1024×1024×150mm |
|
Installation |
Wall mount, stand structure |
|
Cabinet Resolution |
64dots×64dots |
|
Brightness |
≥5000 cd/m2 |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
16m |
|
Grey Scale |
10bits/1024levels |
|
Color Temperature |
5000-9300K |
|
Graphics Card |
DVI Graphics Card |
|
Average Power Consumption |
300 W/m2 |
|
Frame Frequency |
60-85 HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000/Win 8 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Operating Humidity |
10-90% RH |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Maximum Power Consumption |
1000W/m2 |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN OR DB-STAR |
|
LED Lifespan |
100,000 hours |
|
Waterproof Level |
IP65 |
|
Working Voltage |
AC 220V/110V s±10% 50-60 HZ |
|
Out of Control Rate |
0.01 % |

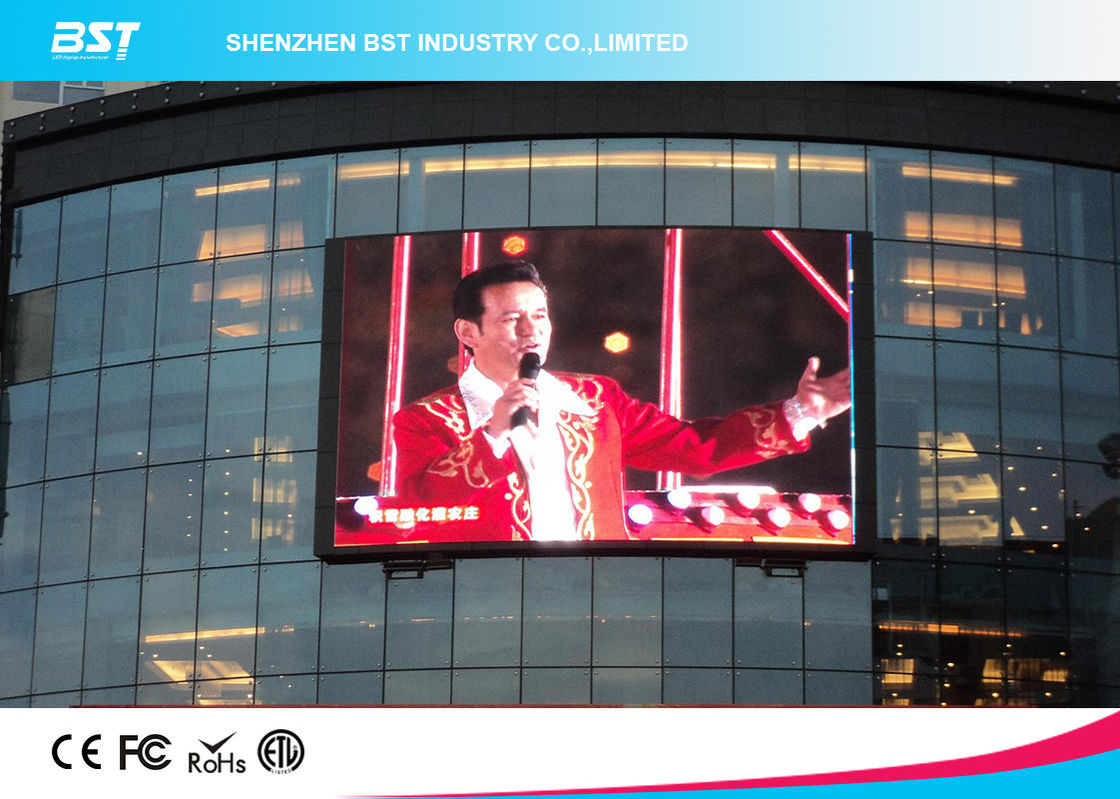

Application:
Commercial advertising, animation, advertising, stage backdrop, stadium, business establishments,TV shows, car shows, Video, graphics,sports, entertainment, events,Stadium perimeter, mobile media, shopping center,exhibitions, fashion shows, concerts etc
