Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Display Screen | Pixel Pitch: | 16mm |
|---|---|---|---|
| LED Type: | SMD3535 | Density: | 3906dots/sqm |
| Module Size: | 256mm X 256mm | Cabinet Size: | 1024mm X 1024mm |
| Highlight: | curved led panels,hd led screen |
||
Rugged Wall P16 Building Outdoor Curved Led Video Screen For Commercial Advertising
Products Description:
1. Steady performance and low death rate of light
2. Good consistency,large stock
3, Elegant structure, highly waterproof IP65 protection rating and excellent heat dissipation.
4, 15degree of inclined frame design is suitable for assembly into arbitrary curve display surfaces
5. Adopted with self developed steel structure and special kits will be kept in good flatness and smoothness.
6. More than 100,000hours life span
7. It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can
be shaped into column to wrap pillars for animation decoration.
8, High brightness, and can be adjustable, meets the need of changing requirement
of customer in environment..
9. We make best design with high cost- efficiency due to different demands and we can offer OEM service
as well.
10. RGB meticulous gray level adjustment to make a abundant and exquisite colors and clear nature images
Specification
|
Item |
Technical Specification |
|
|
Pixel pitch: 16mm |
|
Pixel configuration: SMD3535 1R1G1B |
|
|
Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm |
|
|
Module resolution: 16×16pixels |
|
|
|
Module size: 256mmx256mm |
|
Cabinet size: 1024mm×1024mm×150mm |
|
|
|
Cabinet resolution: 4096 pixels |
|
Cabinet material: Steel |
|
|
Gross weight: 65kg |
|
|
Module quantity: 16pcs= 4(w) x 4(h) |
|
|
Power consumption : Max.:800W/m² Everage: 300W/m² |
|
|
|
Drive method: Static drive |
|
Brightness: 5500cd/m² |
|
|
IC driver: MBI 5214 |
|
|
Density: 3906 pixel/m² |
|
|
Whole display flatness: ≤ 1mm juncture |
|
|
Best view distance: ≥ 16m |
|
|
Viewing angle: Horizontal: 140° Vertical: 140° |
|
|
Humidity(RH): ≤ 90~95% |
|
|
Working temperature: from -30°C to +60°C |
|
|
Working voltage: AC220V/110V±10% |
|
|
Refresh frequency: ≥ 1500Hz |
|
|
Frame rate: ≥ 60Hz |
|
|
Protection grade: IP65 |
|
|
MTBF: More than 10000hrs |
|
|
Life time: 100,000 hrs |
|
|
|
Control system: Linsn |
|
Signal interface: DVI |
|
|
Communication distance: Internet cable: ≤120m / Fiber cable: 1000m |
|
|
Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000, WIN8) |

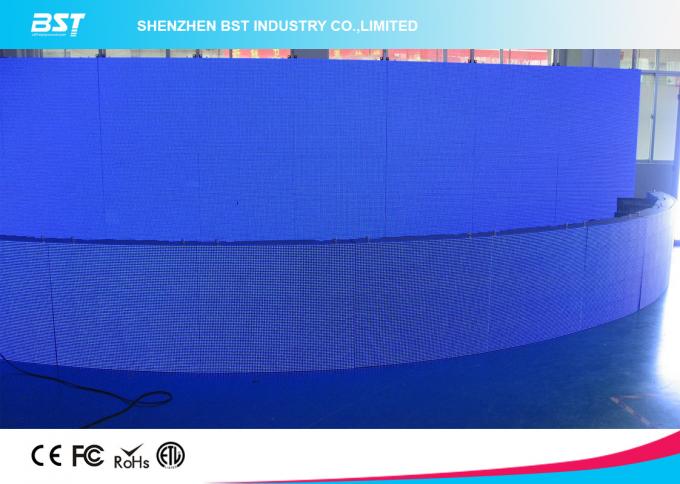

P16 curve LED display
Controller and Accessory

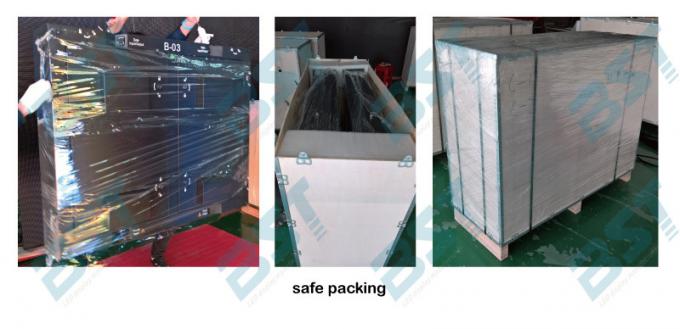

Packing & Shippment
1, Delivery time:For LED module 1-5days,for led display and rental led cabinet 5-12days after received of deposit.All our products proceeded aging test before shipment.
2,Packing: (1)carton (2) anti-shaking wooden box (3) flight case
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM , any your customized led display we can help you to design and put into production.
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms
1. Payment: T/T, 40% deposits before production, 60% balance to be paid before shippment
2. Freight charges are quoted under your requests
3. Shipping port: Shenzhen, China
4. Warranty time: 2years.If there is no manmade problems,we will repair for you freely.
