Product Details:
Payment & Shipping Terms:
|
| Model: | P4mm | LED Type: | SMD2121 Black LEDs |
|---|---|---|---|
| Module Size: | 128mX128mm | Cabinet Size: | 768mmX768mm |
| Warranty: | 2 Year | OEM: | Yes |
| Highlight: | curved led display,hd led screen |
||

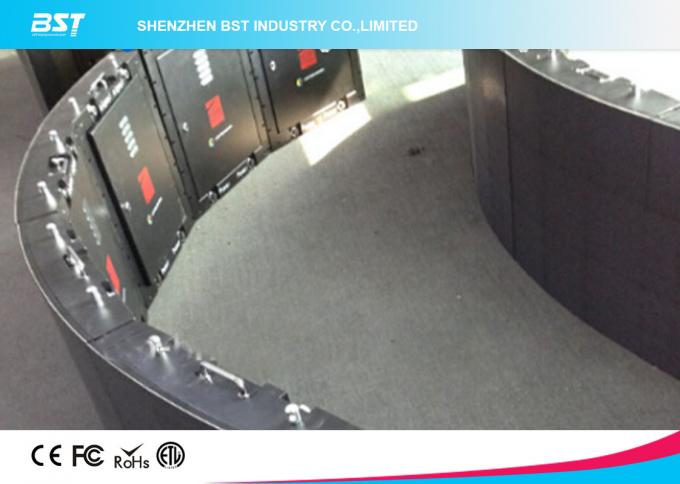

P4mm Indoor Curved LED Display screen , SMD2121 full color led screen for TV Station
Products Feature:
1 Good color and brightness uniform
2. Strong quality control and R&D ability
3. Performance advantage: vivid and colorful display, quick response
4. Wide viewing angle
5. 2 year warranty and good after-sale service
6. Long life time,Excellent contrast
7, Customized LED display size and structure.
8, Adopted with self developed steel structure and special kits will be kept in good flatness and smoothness.
9, Steady performance and low death rate of light,
10, Auto power on/off, work unattended & Electrical surge protection.
11, It can be curved into different shape to fit convex or concave wall or rugged wall or building
Applications:
Commercial advertising, Luxor hotel, railways, airports, harbors, night club, business establishments, such as banks, customs, stadiums, studio, stock exchange centers, bus station, schools, telecommunications,
shopping malls, etc;
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
BST-IFC-4 |
|
Pixel Pitch |
4mm |
|
Module Size |
128mm×128mm |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Pixel Density |
62500dots/m2 |
|
Graphics Card |
DVI Graphics Card |
|
Pixel Configuration |
1R1G1B |
|
Waterproof Level |
IP43 |
|
Drive Mode |
Dynamic 1/16 Duty Constant Current |
|
Grey Scale |
10bits/1024levels |
|
Brightness |
≥1200cd/cd2 |
|
Installation |
Wall mount, hung and stand structure |
|
Contrast |
≥4000:1 |
|
Minimum Viewing Distance |
4m |
|
Color Capability |
16777216 |
|
Cabinet Size |
768×768×135mm |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
400W/m2 |
|
Average Power consumption |
180W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85HZ |
|
Refresh Frequency |
>1500HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C~+85°C Working:-20°C~+60°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000/Win 8 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Cabinet Resolution |
192dots×192dots |
|
Control System |
LINSN OR DB-STAR |
|
Software |
LED studio 10.0 |
|
Module Resolution(Pixel) |
32dots×32dots |
|
LED Type |
SMD 3 in 1 |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Out of Control Rate |
0.01 % |
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
1. Can we make any size of led display?
Nope, according the led module size and cabient size, such as ph4.81mm is 500x500mm for smallest unit.
2,What's best size of led display?
The best aspect ratio of LED display are W16:H9 or W4:H3
3,How to install led display?
We will provide drawing of steel structure or hanging truss,then you can install led display very easy.
4,How to order LED display?
Please tell me indoor or outdoor do you need,size of led display,where will be application of led display.
5,How to shipment?
Normally,it will be shipped by air and dhl, becayse the value is high than other product.
6,How to payment?
You can transfer payment by TT,western union,
