Product Details:
Payment & Shipping Terms:
|
Tube Chip Color: | Full Color | Display Function: | HD Video, Image |
---|---|---|---|
Power Supply:: | YHY/G-energy Slim Module | Driving Method:: | 1/8 Scan |
Brightness: | >1200nits | View Angle: | 140degree |
Highlight: | curved led display,curved led panels |

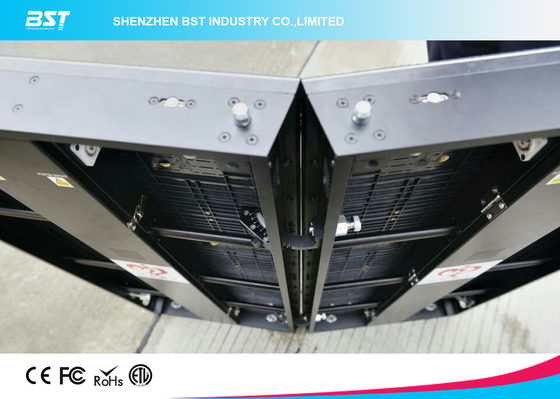

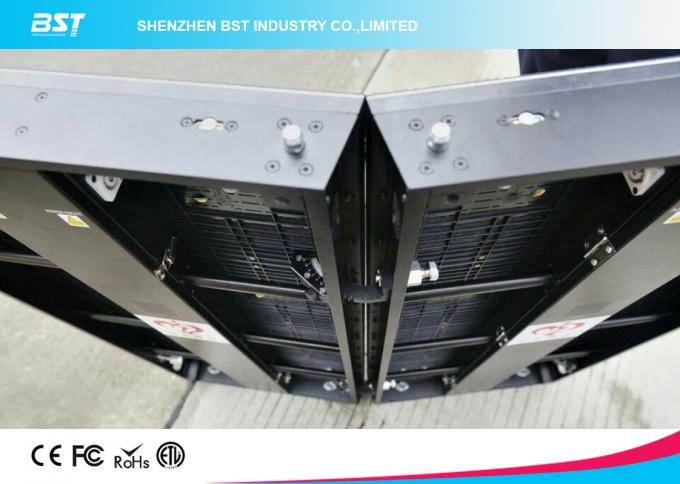

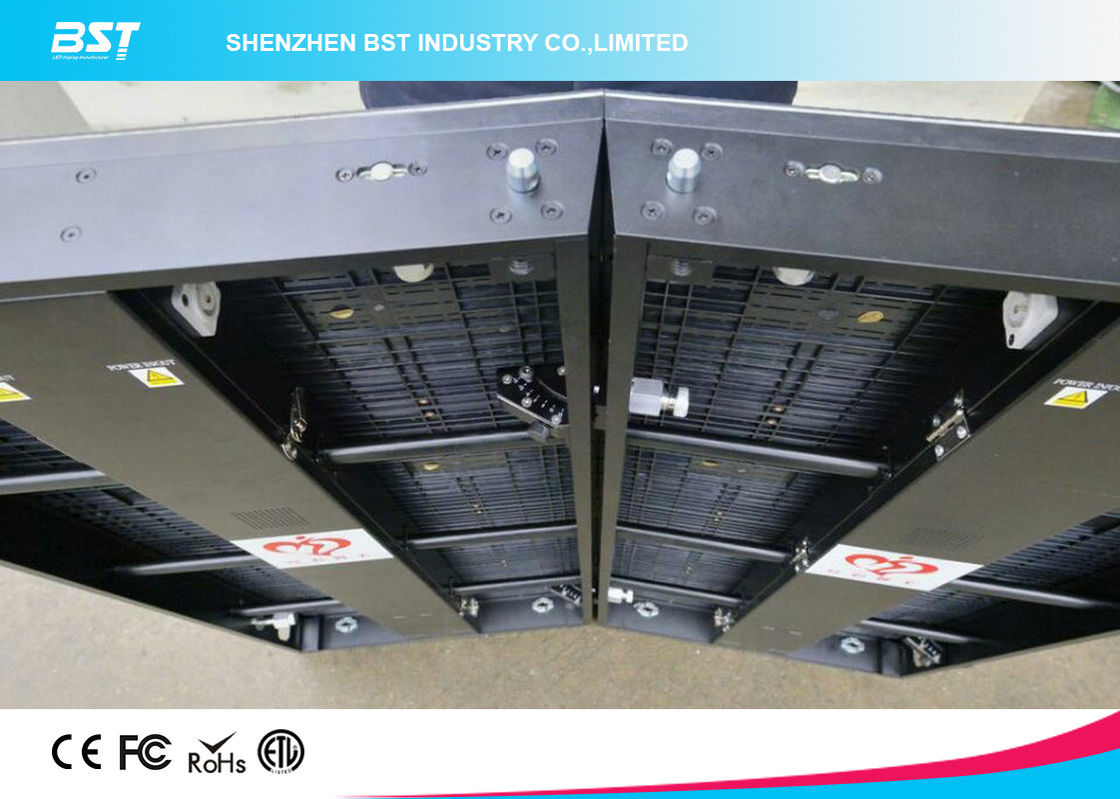

Flexible 1R1G1B 43264 dot/m2 60HZ P4.81mm Full Color Curve Large Led Display Screen
Quick Detail:
1. Light weight and easy to install

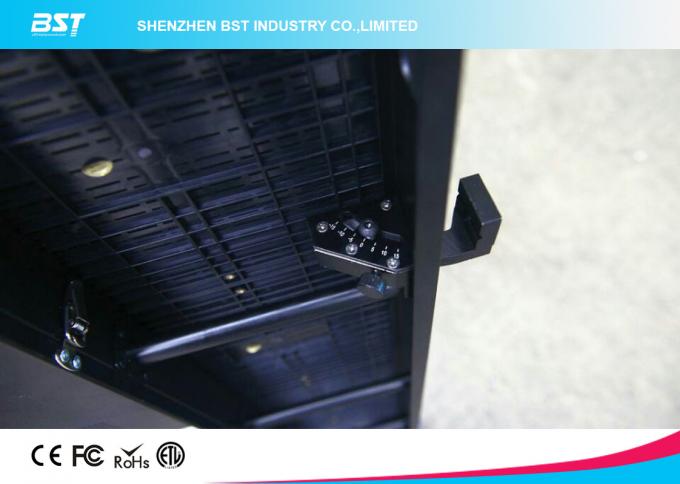

2. Portable and set-up and dismantle with two fast locks on each panel
3, Strong quality control and R&D ability
4, Easy to maintain, remove and replace the defect part individually
5, Anti-corrosion, oxidation resistance
6, Grayscale processing&color calibration techniques ensures amazing graphic quality

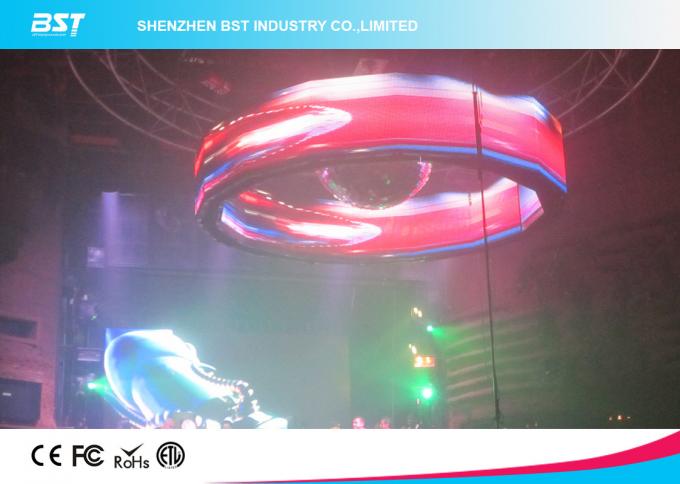

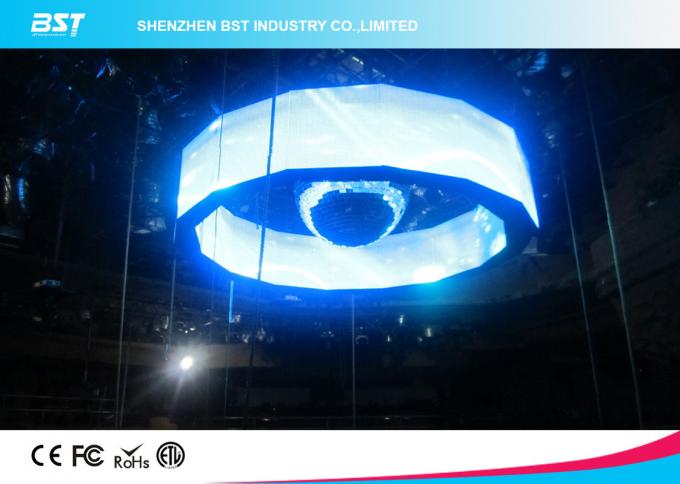

7. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens etc.
8. Curve degrees can be adjusted accordingly to different requests of architectural design
9. Extremely narrow gap between modules contributes to clear image and smooth transition between modules without interval.
10. Good performance in color uniformity, large view angle, high brightness, low fault rate and easy for maintaining;
11. Available models: P3.91,P4.81,P6.25,
12. High gray scale, high refresh, high contrast, with vivid display effect;
Specifications:
1. Indoor LED Display Technical Parameter
Item |
Module Technical parameters |
pixel pitch |
4.81mm |
driving mode |
1/8 constant current |
pixelc omposing |
1R1G1B |
voltage control |
AC220V/110±10%,50HZ |
control |
Asynchronism or Synchronism |
Resolution of cabinet |
104*208=21632pixel |
Led parameter |
R:620-630mm;G:520-525mm;B:465-470mm |
brightness of white balance |
>1200Nits |
viewing angle |
H:140°/V:140° |
display mode |
highest 1920*1080 |

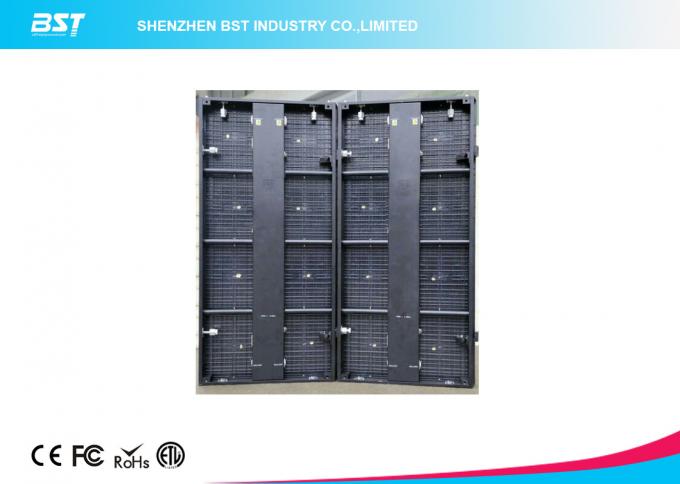

size of cabinet |
500mm*1000mm |
best viewing distance |
>5m |
Led type |
SMD2121 |
Max.consumption |
400W / sqm |
lifespan |
100000H |
module size |
250mm*250mm |
Modules QTY of a cabinet |
8pcs |
Resolution of module |
52*52=2704 Pixel |
pixel density |
43264dots/m2 |
Application

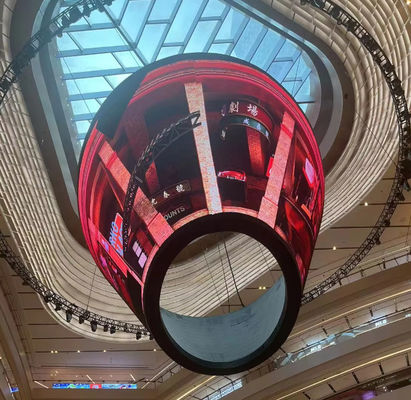

Shopping mall LED display for logo showing , airport , Mobile led display for mobile media train & bus station , telecommunication LED screen system for information showing and instruction , Stage performances ,advertising LED display,bank & stock exchange outdoor LED display screen for rates showing ,and so on .
