Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Display Billboard | Pixel Pitch: | 16mm |
|---|---|---|---|
| LED Type: | DIP346 | Density: | 3906dots/sqm |
| Cabinet Size: | 1024mm X 768mm | Package: | Wooden Case |
| High Light: | outdoor advertising led display screen,outdoor led display boards |
||
High Brightness Outdoor Advertising Led Display Screen 16mm For Building / Airport
Products Feature:
1. Good LEDs:use DIP346 LEDs,it has excellent performance in antistatic ability and UV protection;Waterproof grade IP65,all weather available.
2. Energy saving:low electric current,high-brigh lamps,equipped with PFC swithing power supply,save 30% electricity.
3. High refresh rate,high gray level:it can reach 16bit by using PWM driving IC,refresh rate is more than 1000HZ,the gray level is still high even under the condition of low brightness.
4. Color correction:support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens.
5. Dual back-up:both power supply and system dual back-up are optional,reliable performance.
6. Error detection and monitoring:it can monitor the inner temoerature,voltage,cooling fans etc and error detection automatically.
8. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
9.Good waterproof IP65 for front and IP 54 for rear,anti-corrosion,andtifogging,long life span>10000 hour
10.Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed auctomatically
11.Cabinet size and material can customized according different projects.
P16 outdoor Advertising LED display
Control connection
Application:

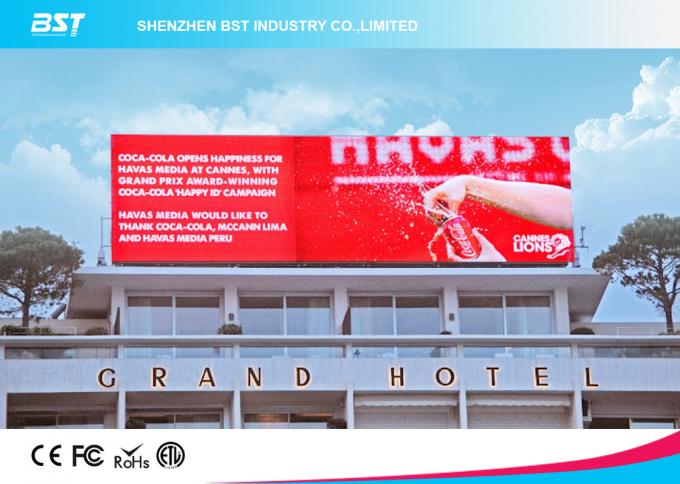

Outdoor comercial advertising, building, stadium, hotel, airport etc. Use for video on display.
Specification:
| Model No. | BST-OA16 |
| Pixel Pitch | 16mm |
| Module Size | 256mm*128mm |
| Module Resolution (W*H) | 16 dots*8 dots |
| Pixel Density | 3906 dots/ ㎡ |
| LED Type | 3mm Oval Lamp |
| Pixel Configuration | 1R1G1B |
| Wavelength (R.G.B) | R:625±2nm G:525±2nm B:470±2nm |
| Drive Mode | Static Drive Constant Current |
| Cabinet Size | 1024×768×165mm |
| Cabinet Resolution | 64dots×48dots |
| Brightness | ≥6500cd/㎡ |
| Contrast | ≥2000:1 |
| Viewing Angle | 120°(Horizontal )/60°(Vertical ) |
| Best Viewing Distance | 16m-300m |
| Grey Scale | 14bits/1024levels |
| Color Capability | 16777216 |
| Color Temperature | 5000-9300K |
| Maximum Power Consumption | 700 W/m2 |
| Average Power Consumption | 300 W/m2 |
| Working Voltage | AC 220V/110V s±10% 50-60 HZ |
| Frame Frequency | 60-85 HZ |
| Refresh Frequency | >1500HZ |
| Brightness Correction | Pixel, Module, Cabinet Correction |
| Operating Temperature | Static:-40℃~+85℃Working:-20~+65℃ |
| Operating Humidity | 10-90% RH |
| LED Lifespan | 100,000 hours |
| MTBF | ≥50,000 hours |
| Computer Operation System | Win 98/ Win XP/ Win 2000/WIN7 etc |
| Video Signal Input | RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
| Video Signal Output | RF, S-Video, RGB, RGBHV, YUV, YC etc. |
| Graphics Card | DVI Graphics Card |
| Control Distance | LINSN / NOVA / DB-STAR |
| Software | LED studio 10.0 |
| Waterproof Level | IP65(Front Side), IP54 (Back Side) |
| Installation | Wall mount, hung and stand structure |
| Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
| Module Size (W*H) | 256mm*128mm | Pixel Configuration | 1R1G1B |
| Pixel Pitch | 16mm | Resolution (W*H) | 16 dots*8 dots |
| Pixel Density | 3906 dots/㎡ | LED Type | 3mm Oval Lamp |
3. Outdoor LED Display Cabinet
| Cabinet Size (W*H) | 1024mm*1024mm | Module Qty | 32 pcs |
| Cabinet Resolution (W*H) | 64 dots*64 dots | Cabinet Pixel | 4096 |
| Weight | 60 kg/ Cabinet | Area | 1.048㎡ |
| Average Power Consumption | 300w/㎡ | Max Consumption | 700 W/m2 |

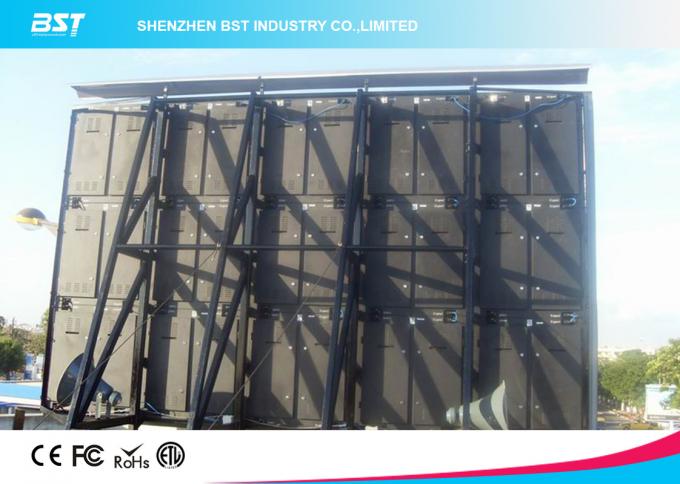

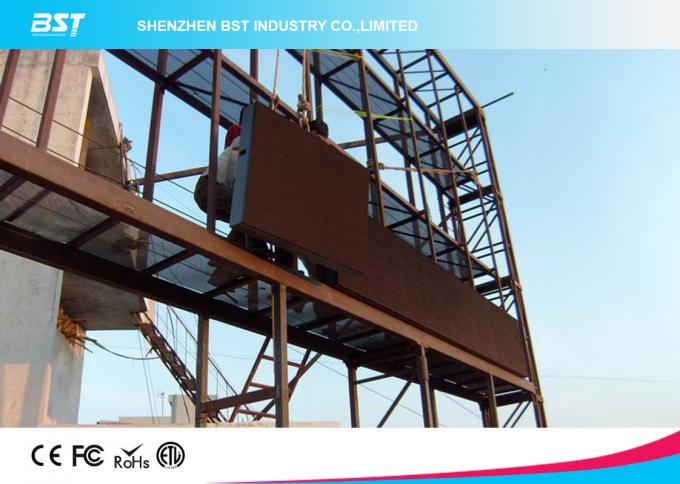

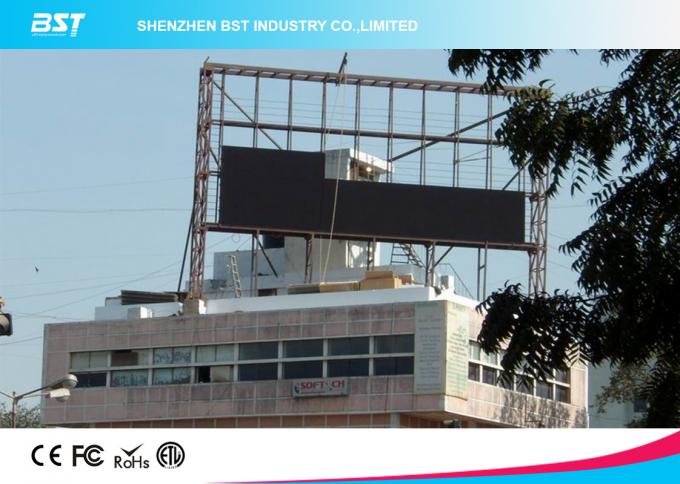

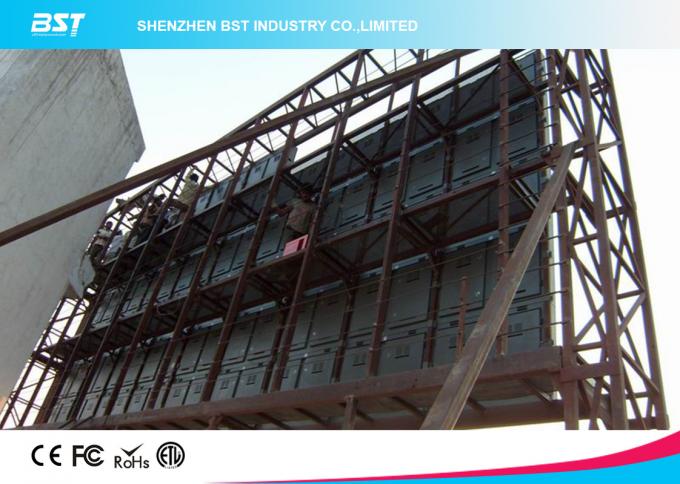

Outdoor LED Display Installation
Our Service:
1.Spare parts
We will send some spare parts for our clients after you take an order.
2.Two years warranty
Two year warranty for outdoor led display indoor led display.we are committed to free repair or replacement during warranty.
3.Fastest Delivery and Best Online Services
provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.
4.Best Quality Guaranteed
Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. So you may always rest assured about best quality products.
5.After sale-service
If your LED Display is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
Trade Terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before shippment
2. Freight charges are quoted under your requests
3. Shipping port: Shenzhen, China
4. Warranty time: 2years.If there is no manmade problems,we will repair for you freely.
FAQ:
Q1. Can I have a sample order for LED display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 15-20 days for order quantity more than
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LED display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on LED display product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.02%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
