Product Details:
Payment & Shipping Terms:
|
| Production Name: | P6mm Indoor Rental LED Display | Pixel Pitch: | 6mm |
|---|---|---|---|
| LED Type: | SMD3528 | Module Size: | 192mmX192mm |
| Cabinet Size: | 576mmX576mm | Density: | 27776 Pixel / Sqm |
| High Light: | rental LED screen,LED video wall rental |
||
High Definition 3 In 1 SMD Rent Video Wall Displays , Small 6mm Led Screen 1R1G1B
Products Feature:
1, High refresh rate with software adjustable, suitable for videos, picture and filming
2, First-calss LED chip
3, High Contrast ratio (2000:1) with self-developed black mask and black coating technique
4, High refresh rate with software adjustable, suitable for videos, picture and filming.
5, High reliability and long lifespan (MTBF ≥ 5000 hours)
6. Clear vivid image quality
7. Long using life & MTBF
8. Ultra Slim and light weight (only 8Kg/panel), portable handy
9. Stable and short delivery time
10. 2 year warranty and good after-sale service
Parameters of BST-IR-6
|
BST-IR-6 (Pitch 6mm indoor full color-1/8 scan) |
|
|
Technique |
SMD |
|
Pixel structure |
1R1G1B 3in1 |
|
Pixel pitch |
6mm |
|
Pixel density |
27, 777 dots/㎡ |
|
Luminance |
1500cd/㎡ |
|
Module dimension |
192mm(W) * 192mm(H) |
|
Module resolution |
32 pixel(W) * 32 pixel mm(H) |
|

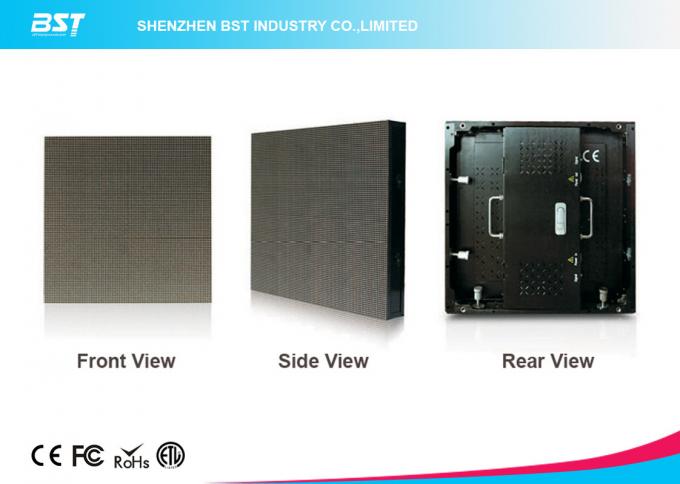

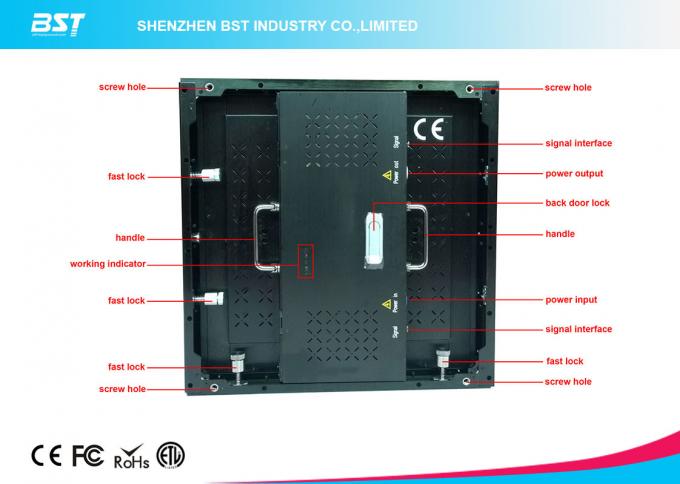

Cabinet dimension |
576* 576mm |
|
Cabinet resolution |
96 * 96 |
|
Cabinet area |
0.33 sq.meter |
|
Optimal visual distance |
>6m |
|
Visual angel |
140 degree (H/V) |
|
Max power consumption |
≤800w / ㎡ |
|
Average power consumption |
≤400w / ㎡ |
|
Brightness adjustment |
Adjust according to the environment |
|
brightness software (0%-100%adjustable) |
|
|
Gray scale |
point by point 4096 gray grade levels of? |
|
each color, 16 bits γ correction available |
|
|
Drive mode |
1/8 dynamic scan, constant current |
|
Frame frequency |
≥60HZ |
|
Refresh frequency |
≥1500HZ |
|
Input voltage |
AC 110/220 volts |
|
Operation temperature |
﹣40℃~ +60℃ |
|
Operation humidity |
10％～90％ |
|
Input signal |
S-video, RF, RGB, Yuv, YC, composite… |
|
Control system |
DVI card + master control card + receiver card |
|
MTBF |
>5000 hrs |
|
Life span (50% brightness) |
100, 000 hrs |
|
Malfunction dot rate |
1/10000 |
|
Ingress protection rate |
IP40 |
|
Cabinet material |
Section aluminum |
|
Application: |
Rental / Permanent installation available |
Application:
Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments;
Usage Considerations of LED Display
1.Switching sequence
1) screen switching sequence: on: first turn on the computer, then screen off: first shut off screen, then computer.
2) Interval of switching LED display must be greater than 1 minute.
2. Ambient temperature
When ambient temperature is too high or cooling condition is bad, users had better not to turn on the screen for a long time.
Screen shall be installed in temperature from-10 °C to 40 °C.Over environment temperature range, temperature control equipment must be installed.It is forbidden to install LED display near any heat source.
3.Ambient humidity
When installing screen, ambient relative humidity should be in the range from 30% to 70%.It is prone to get static electricity when the indoor humidity is below 30%; when the indoor humidity is higher than 70%, electronic components are easy to get damp.
4.Corrosive gas environment
Please do not install the display in corrosive gas environment containing acid or base components, such as chemical warehouse.
5. Electromagnetic radiation environment
Please do not install display when electromagnetic radiation and radio frequency radiation environment is over field strength 5V/m.
If necessary, isolation treatment should be taken.
6.Steady power supply

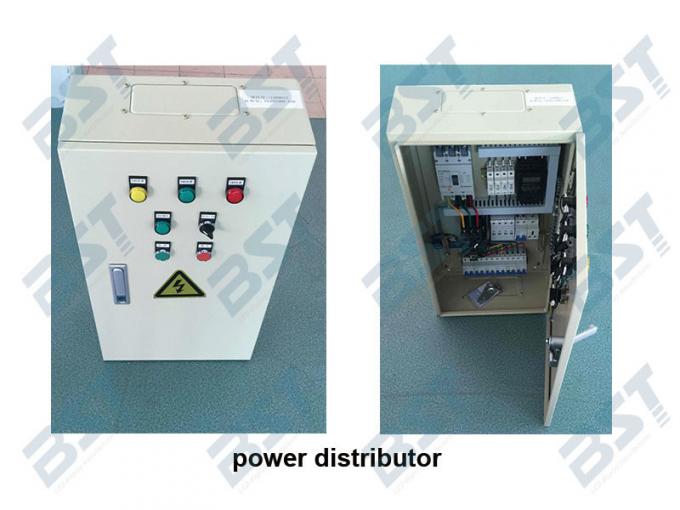

If necessary, users have to install surge switches in the distribution box and ground fault protection to avoid lightning strikes.
Do not use the display in strong lightning and other severe weather.
7. Conductive material is strictly prohibited to contact display, such as metal dust and water.
Screens are placed in the environment of low dust as far as possible, otherwise it will affect the display effects, as well as damage the circuit.If exposed to water for various reasons, please immediately power down until the screen unit dry.
8.Controlling colors
Do not display a long time in a white, red, green, blue or other bright screen, because this will affect the display lifetime.
9.Controlling time
LED display at least rest 2 hours a day. Normally turn on the screen at least twice a week or more (Especially in the rainy season it is necessary to turn on the display every day).And it maintains more than 2 hours every time.
10.Regular overhaul
LED display requires regular inspection to check circuit damage. If it does not work, change it in time. If circuit damages, it should be repaired or replaced.
11.Security alerts
Users must ensure safety while installing Led display. The factory only offers products and reference programs of frame fixation.
Users can ask relevant authorities to confirm according to local conditions and field conditions.
