| Production Name: | P4.81mm Stage Video Wall | Pixel Pitch: | 4.81mm |
|---|---|---|---|
| LED Type: | SMD2121 Black LEDs | Module Size: | 250mmX250mm |
| Cabinet Size: | 500mX500mm | Density: | 43264 Pixel / Sqm |
| High Light: | rental LED screen,hire led screen |
||

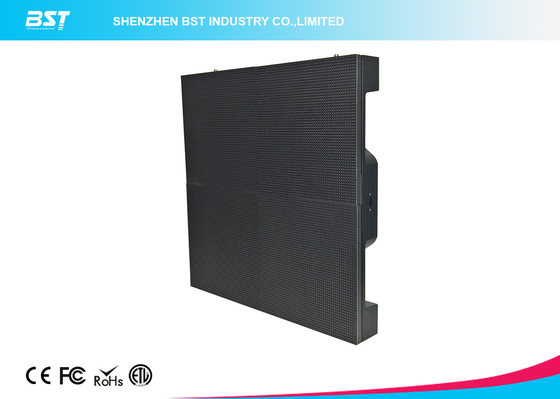

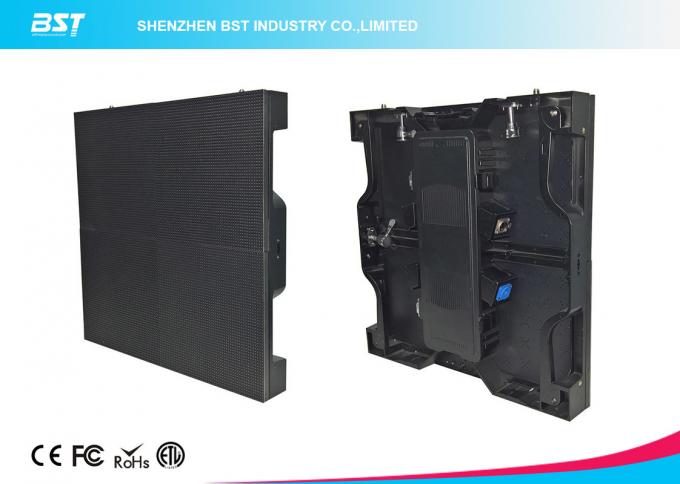

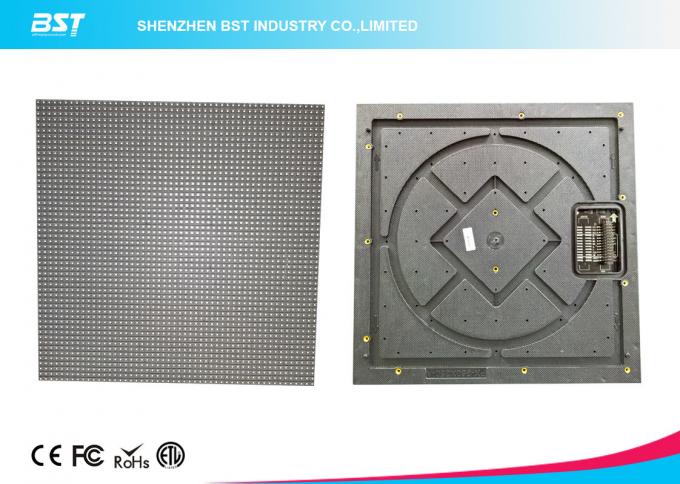

Super Slim Aluminum P4.81 SMD2121 Black LEDs Rental LED Display For Concert Show
Quick Detail:
1, Fanless design and ernergy saving
2, Steady performance and low death rate of light
3, High color uniformity and clear image can bring you a vivid audio visual effect
4, Own designing team for new products development
5, Wide visual angle, smooth surface
Parameters of BST-IRD-4
|
Model No. |
BST-IRD-4 |
|
Pixel Pitch |
4.81mm |
|
Module Size |
500mm*500mm |
|
Module Resolution (W*H) |
104dots*104dots |
|
Pixel Density |
43264dots/ ㎡ |
|
LED Type |
SMD2121 Black LEDs |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/8 Duty Constant Current |
|
Cabinet Size |
500 ×500 ×65mm |
|
Cabinet Resolution |
104dots ×104dots |
|
Brightness |
≥ 1500cd/㎡ |
|
Contrast |
≥ 4000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
4m-30m |
|
Grey Scale |
16bits/1024levels |
|
Color Capability |
16,777,216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
800 W/㎡ |
|
Average Power Consumption |
400 W/㎡ |
|
Working Voltage |
AC 220V/110V s±10% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
>1500HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
-40~+60℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000/Win 7/ Win 8 |
|

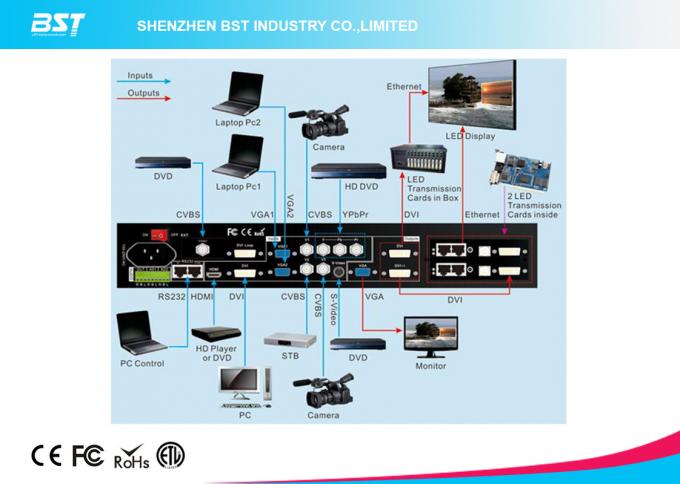

Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Installation |
hung and stand |
|
Out of Control Rate |
0.01 % |
Products Feature:
Lightweight:The aluminum die-casting technology makes the single cabinet as light as 7KG,which is convenient for assembly and transportation.
Seamless connection:The aluminum die-casting technology,togrther with the high-precision CNC procession,makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.
Low power consumption:Combined with the brightness auto-adjusting technology and PFC power supply,low current can save energy over 35%,which in other words is to save money .

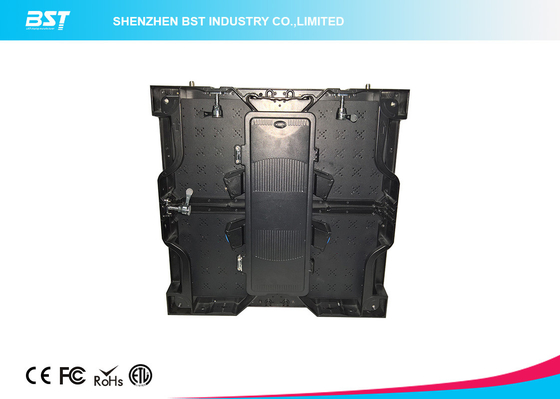

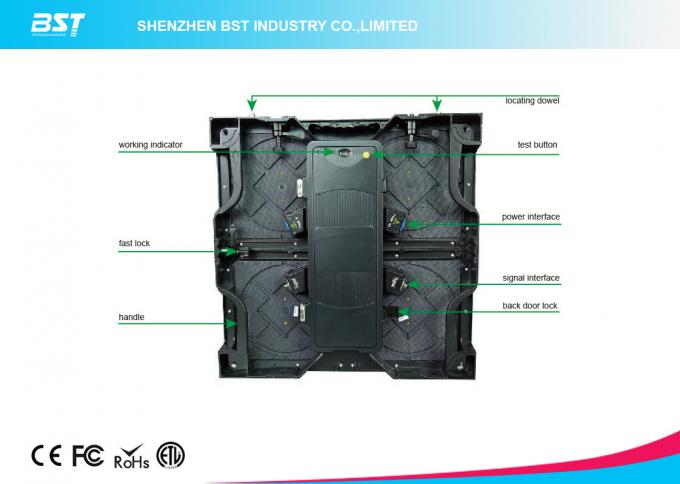

Easy to maintain:No need to disassemble the shile screen for maintenance.Each component can be detached individually for that purpose.
Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
Ghost canceling:Exquisite and clear pict quality with no ghost.Both upstream and downstream ghosts can be automatically canceled.
High refresh rate:Over 1980Hz refresh rate to ensure the picture wrinkle-less,line-less and stable.
Low brightness and Hight gray scale:14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.

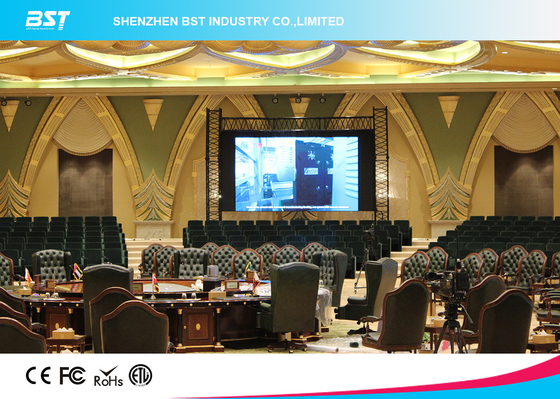

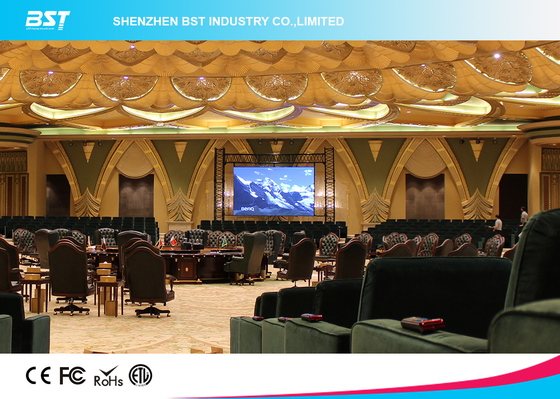

P4.81mm Indoor Rental LED Display
Application:
Stadium perimeter, telecommunications, customs, stadiums, studio, railways, airports, harbors, mobile media, Commercial advertising, stock exchange centers, bus station, shopping malls, such as banks,schools,night club, business establishments,entertainment events, etc;
