Product Details:
Payment & Shipping Terms:
|
Production Name: | P6.25mm Stage Video Wall | Pixel Pitch: | 6.25mm |
---|---|---|---|
LED Type: | SMD3535 LEDs | Module Size: | 250mmX250mm |
Cabinet Size: | 500mX500mm | Density: | 25600 Pixel / Sqm |
Highlight: | rental LED screen,hire led screen |
6500nits P6.25 RGB Waterproof Outdoor Rental Led Display with 500 x 500mm Cabinet
Products Description:
1. Stable and short delivery time
2. Low maintenance cost
3. Easy and quick assemble and removable, convenient for maintenance
4, Rental and events application
5. High Precision- Tolerance ≤0.1mm
6. Perfect quality and stability, 24/7 running
7, Clear picture without flicker and distortion
8, Excellent quality,original epistar chip,MBI driving IC from taiwan
9, Indication lights to show status of power and signal status
10, Providing easy operation & flexible information of displaying control

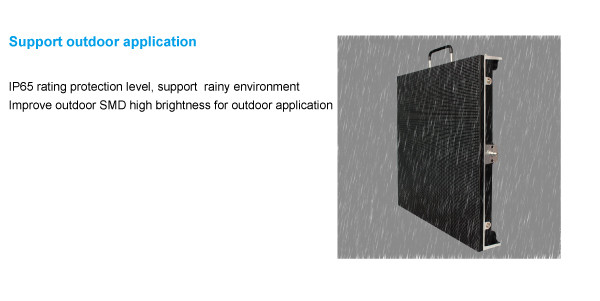

11, High Brightness more than 6500cd/sqm and IP65 waterproof
Parameters of BST-ORD-6
Module Parameter
Pixel pitch | 6.25mm |
Configuration | RGB |
LED Type | 3 -in 1 SMD3535/2727 |
Module Size | 250*250mm |
Module resolution | 40*40 |
Cabinet Parameter
Cabinet size | 500*500mm |
Cabinet resolution | 80*80 |
Cabinet material | Die casting aluminum |
Cabinet weight | 8KG |
Screen Parameter
Brightness | 6500nits |
Viewing angle | H≥140° V≥140° |
Min. viewing distance | 6M |
Max power consumption | 700w/sqrm |
Ave power consumption | 300w/sqrm |
Working voltage | 110~220VAC±15% |
Interface | HUB75 |
Colors | 16.7M |
Grey levels | 16bits |
Frame frequency | 60Hz |
Refresh rate | >1920Hz |
Life span | 100,000 Hours |
Working temperature | -30℃ ~ +60℃ |
Relative humidity | 10-80% no condensation |
Storage temperature | -20℃ ~ +60℃ |
Storage humidity | 10-85% no condensation |
Power supply | G-energy/Meanwell |
Control System
Brand | Nova/Linsn/Xixun/Colorlight |
Type | Synchronous/Asychronous |
Network | LAN/3G/WIFI |

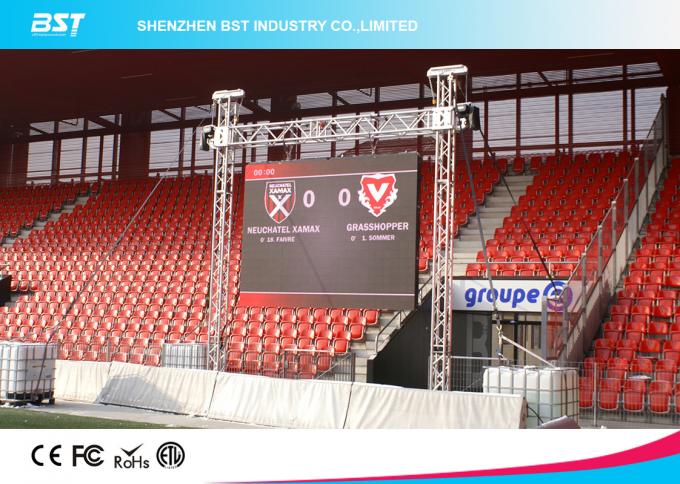

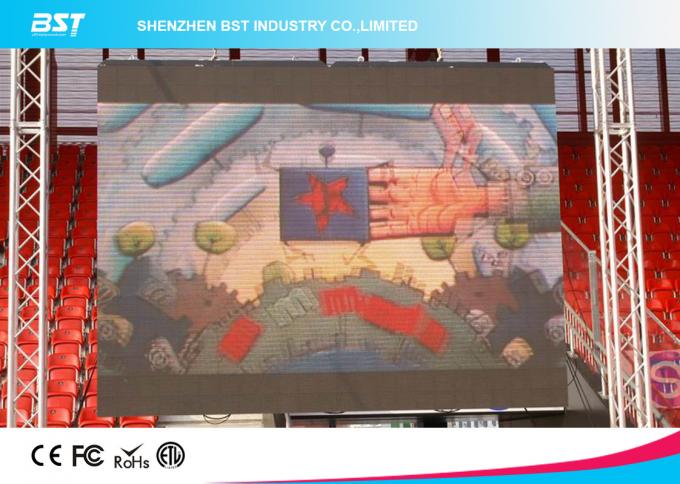

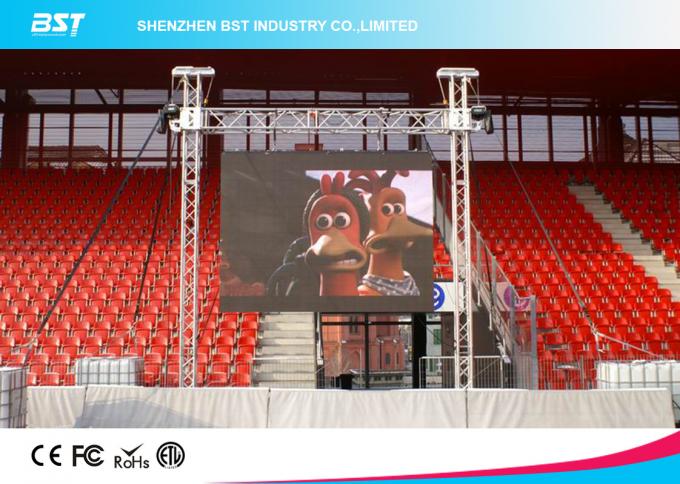

P6.25mm outdoor Rental LED Display
Packing and Shipment
Application:
Business establishments,entertainment events,railways, airports, harbors, mobile media, night club, commercial advertising, stock exchange centers, bus station, telecommunications, customs, stadiums, studio,shopping malls,stadium perimeter, such as banks,schools, etc;
1. How to choose the led display most suitable for my project? And what is the best price you can offer?
First of all, you’d better to know the application of the screen ( Indoor or Outdoor); the size of the screen would be ( Length & Height); what will the screen will be used for ( advertising, on live event, need to be installed somewhere permanently or for rental use). We will check out the best price and screen upon your conditions
2. What is your lead time?
Under the normal condition, sample order for 3-7 working days, regarding mass order, if we have available raw material,the lead time will around 15 working days, otherwise, would be 20-30 working days
3. What is your payment method?
Our usually practice for payment is by T/T for the mass order and also LC
4. What is your shipping and packing way?
Our standard packing for modules are carton box and for the led cabinet, we do wood box or flight case as per customers’ requests. For the mass order ( fit for a container), we do shipment by Sea and for others usually by express or airlin
5. Can i place a sample order before i decide to do the mass production?
Yes, we acceptable sample orders, please let us know your detail request then we will send you the sample asap for confirmatio
6. Can i have a free sample?
We offer free sample for some models, please advise what you need to see if we have available free samples here to be sent
