| Product Name: | P5mm Taxi Top Full Color LED Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| Density: | 40000 Pixel Per Sqm | OEM: | Yes |
| Type: | Double Side | Control Method: | 3G,4G,WIFI, Ethernet Cable |
| High Light: | taxi top advertising signs,Taxi roof LED Display |
||

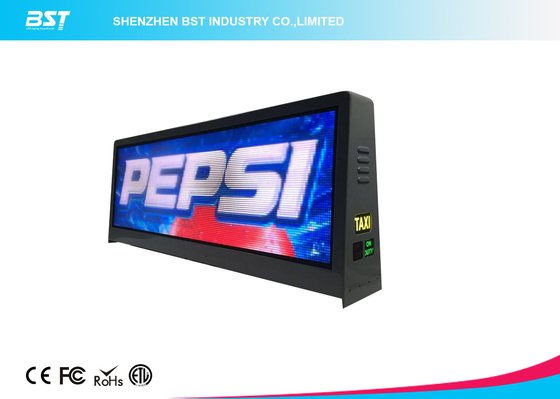

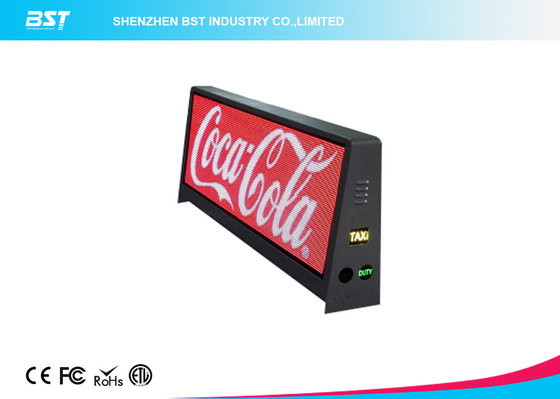

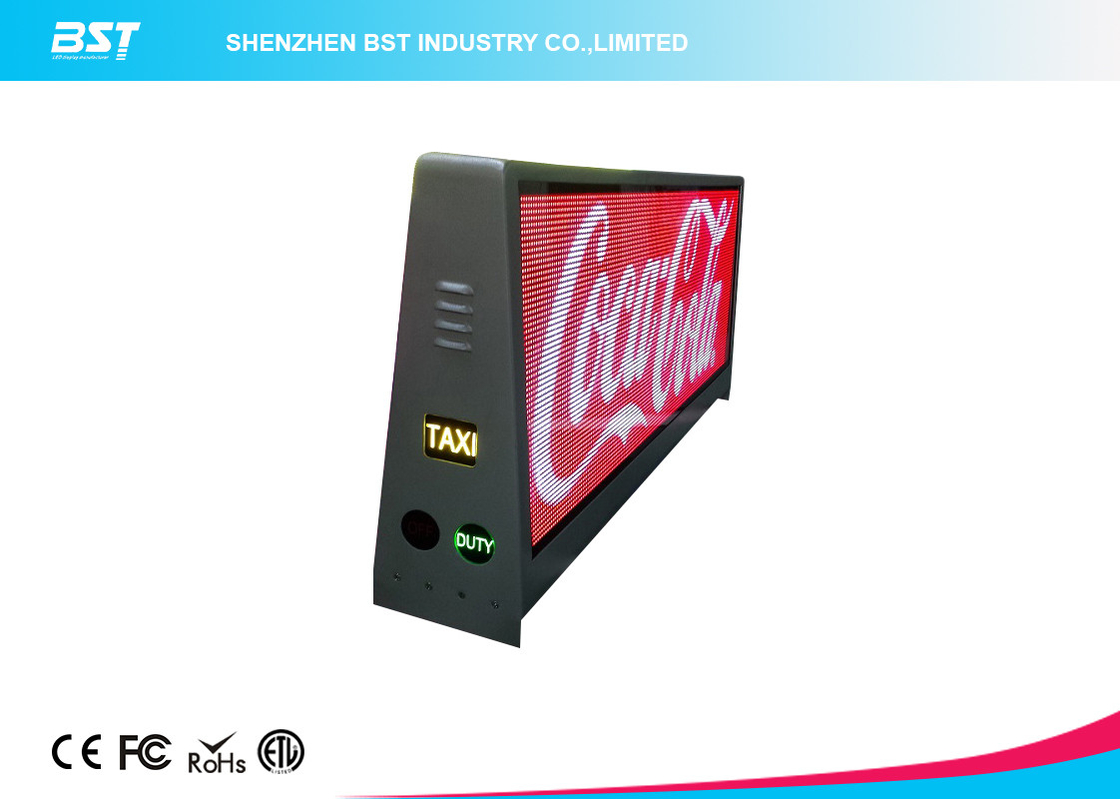

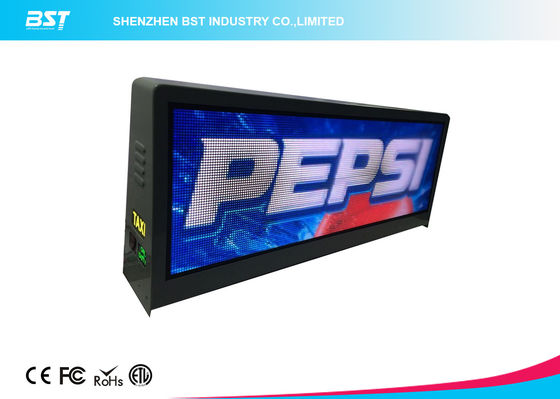

Waterproof IP65 Led Light Display Taxi Roof Advertising Signs With Aluminum Cabinet
Quick Detail:
1, Waterproof, rust-proof, dust-proof, anti-static, anti-mildew
2. Perfect quality and stability, 24/7 running
3. High quality acrylic cover
4. Steady performance and low death rate of light
5. Ultral slim 75mm deepth on the top, ultral lightweight 18kg per pcs only
6, Over-temperature, over-current, over-voltage protection design
Description:
1. Low power consumption.12V DC input. Vehicle battery is enough to make the taxi
top LED sign work.
2. Wide color range, excellent color uniformity, no rainbow effect, broadcasting strong stability
3. High reliability. 24h/7day advertising all the time and all weather conditions
4, High brightness, and can be adjustable, meets the need of changing requirement
of customer in environment.
5. Aluminum waterproof cabinet with special design;
Parameters of BST-TTF-5
| Item | Parameter | ||
| Module | Pixel Pitch | 5mm | |
| Pixel Density | 40000 pixels/m2 | ||
| Pixels Composition | SMD2727 1R1G1B | ||
| Module Resolution(H×V) | 64 pixels × 32pixels | ||
| Module Dimension(H×V) | 320mmX160mm | ||
| Drive IC | MBI5124 | ||
| LED Chip | Epistar | ||
| Drive Mothod | 1/8 scan | ||
| Max. Power Consumption | 500w | ||
| Average. Power Consumption | 250w | ||
| Screen | Display size | 960x320mm | |
| Resolution | 192pixelsX64pixels | ||
| Cabinet Quantity | 1PCS | ||
| Frame Size | L:1100mm H:410mm,W:157mm(bottom),75mm(top) | ||
| Control System | 4G cluster controller | ||
| Main Particular | Cabinet Material | aluminum | |
| Ingression Proof Grade | IP 65 waterproof cabinet | ||
| Brightness(static) | ≥4000cd/m2 | ||
| Optimal Viewing Distance | >5m | ||
| Inputting Voltage | DC12V | ||
| Optimal Viewing Angle | H≤140°, V≤140° | ||
| LED Life Span | 50,000 - 100,000 hrs | ||
| Operating Enviroment | -20°C~+60°C; Humidity: 10% -90% | ||
Application:

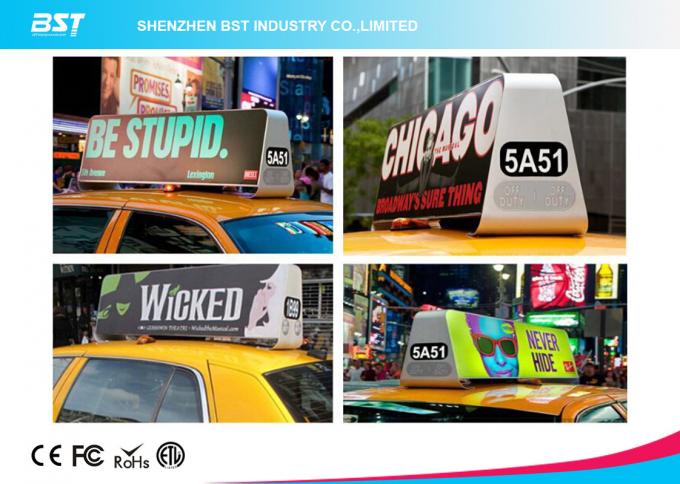

Taxi top advertising to show Animation, commercial advertising, customs video, graphics etc;
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&OM, any your customized screens which we can help you to design and put into product.
4.Distributor ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information .
Q1: Where is it used for?
A1: Indoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q2: Can it play HD video?
A2: Yes, it can realize HD video function with Novastar controlling system.
Q3: What's the controlling system?
A3: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q4: How about the size of project?
A4: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
