Product Details:
Payment & Shipping Terms:
|
| Product Name: | P5mm Taxi Top Full Color LED Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| Density: | 40000 Pixel Per Sqm | OEM: | Yes |
| Type: | Double Side | Control Method: | 3G,4G,WIFI, Ethernet Cable |
| High Light: | taxi top led display,taxi top advertising signs |
||

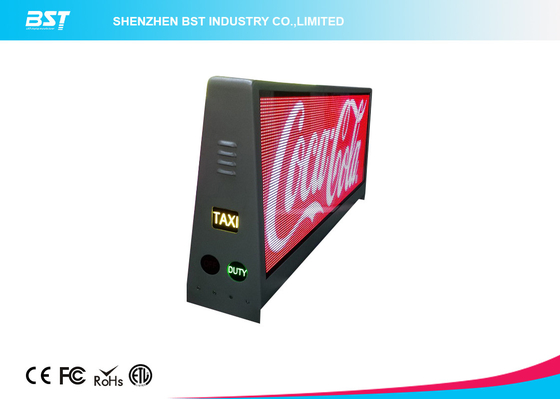

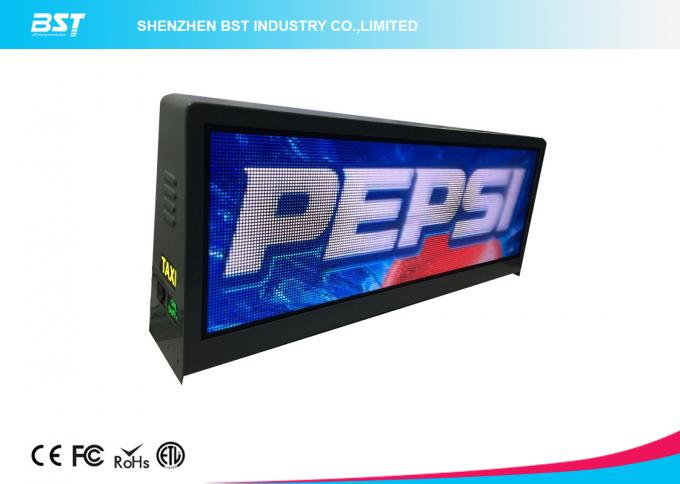

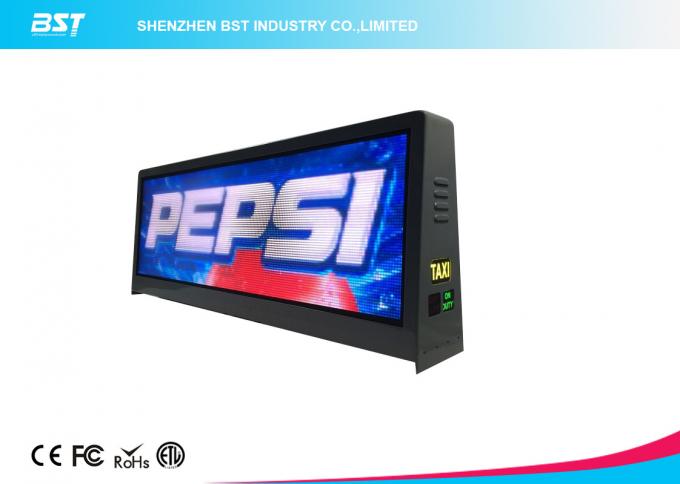

Outdoor Double Sided P5 Cab roof LED Display / Full Color Car Top Sign
Products Description:
1, Waterproof, rust-proof, dust-proof, anti-static, anti-mildew
2. Low power consumption, super high brightness
3. Clear picture without flicker and distortion
4. Low consumption, stable performance, highly durable
5. Ultral slim 75mm deepth on the top, ultral lightweight 18kg per pcs only
6, Over-temperature, over-current, over-voltage protection design
7. Low power consumption.12V DC input. Vehicle battery is enough to make the taxi
top LED sign work.
8. Support temperature and humidity display, brightness automatically adjustable
9. High reliability. 24h/7day advertising all the time and all weather conditions
10, Support remote control for select program and adjust brightness
11. DC 9-36V input voltage
Parameters of BST-TTF-5
|
Numbers |
Technical indexes |
P5 Taxi Top LED Display |
|
1 |
Pixel pitch |
5mm |
|
2 |
Module size |
320mm× 160mm |
|
3 |
Module resolution |
64× 32 |
|
4 |
Module density |
40, 000dots/sqm |
|
5 |
Pixel configuration |
RGB ( SMD 3 in 1 ) |
|
6 |
Red wavelength |
625± 2nm |
|
7 |
Green wavelength |
525± 2nm |
|
8 |
Blue wavelength |
470± 2nm |
|
9 |
Colors |
16777216 |
|
10 |
Best viewing distance |
more than 5 m |
|
11 |
Horizontal viewing angle |
140° |
|
12 |
Vertical viewing angle |
140° |
|
13 |
Average power consumption |
≤ 250W/m2 |
|
14 |
Brightness |
≥ 4500cd/m2 |
|
15 |
Gray scale |
16bits of per color |
|
16 |
Color temperature |
6500K |
|
17 |
Control method |
Asynchronization with 3G,4G, WIFI etc |
|
18 |
Driving method |
1/8 scanning |
|
19 |
Frame frequency |
60Hz |
|
20 |
Refresh frequency |
≥ 1000 Hz |
|
21 |
Working voltage |
DC12V |
|
22 |
IP grade |
IP65 |
|
23 |
Working temperature |
-20° C~80° C |
|
24 |
MTBF |
More than 10, 000 hours |
|
25 |
Life span |
More than 100, 000hours |

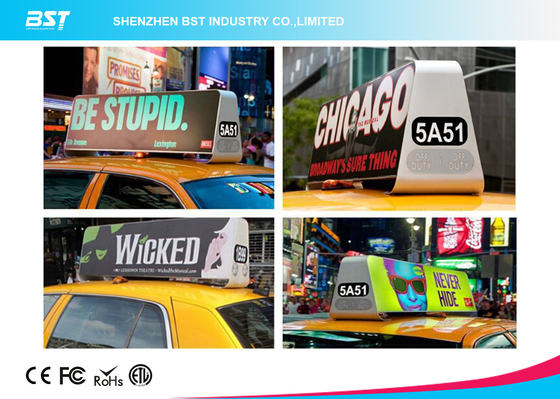

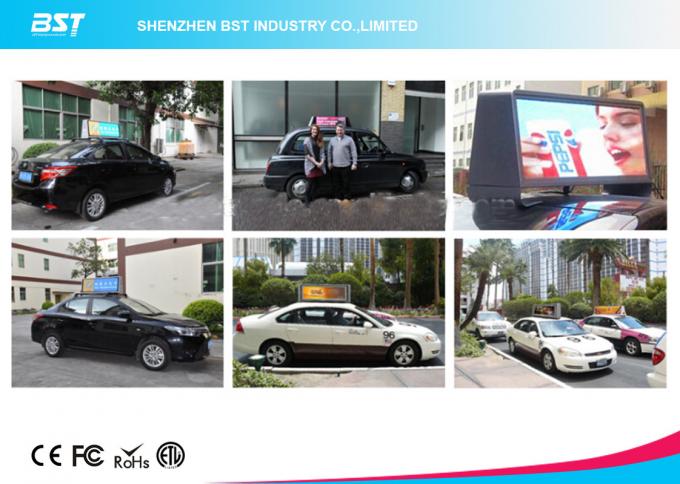

Application:
Taxi top advertising to show Animation, commercial advertising, customs video, graphics etc;
