| Product Name: | P5mm Taxi Top Full Color LED Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| IP Rating: | IP65 | OEM: | Yes |
| Warranty: | 2 Year | Control Method: | 3G,4G,WIFI, Ethernet Cable |
| High Light: | taxi top advertising signs,Taxi roof LED Display |
||
RGB Video Taxi Top Led Display Advertising Light Box With 4g / Wifi Control
Quick Detail:
1, Color can be customized
2, Ultra light, aluminum cabinet, about 18kg/pc
3, Input voltage, 12V
4, Weatherproof & shockproof, polycarbonate glass with good transparancy and chemical stability is adopted for protective purpose.
5, Support text, picture and video
6, High brightness, 5000 cd/sqm; large viewing angle (horizontally 140°, vertically 140°)
Application:
Taxi top advertising to show Animation, commercial advertising, customs video, graphics etc;
Description:
1, dual-side display of full color with 256 gray level, support broadcasting text, image, animation etc;
2, support audio play and text display simultaneously; support music playback and background music;
3, support 3G / WIFI wireless transmission, support communication through network port/serial port/U disk stably and effectively;
4, support various remote controls of instant switch, timer switch, brightness adjustment, information lifecycle setting and information partitioning capabilities;
5, high brightness, high refresh rate, good resolution; low current, low power consumption, long lifespan of screen body;
6, power supply range DC9-36V, assed various automotive electronic product performance tastings, such as the voltage performance, spark test, ISO7637 electromagnetic transient immunity performance, vibration property, impact properties etc, support under-voltage and over-current protection;
7, ultra-thin, stably, sturdy, not easy to loose, good for heat radiation, easy to maintain; external wires use three kinds of fire-retardant materials to get high security

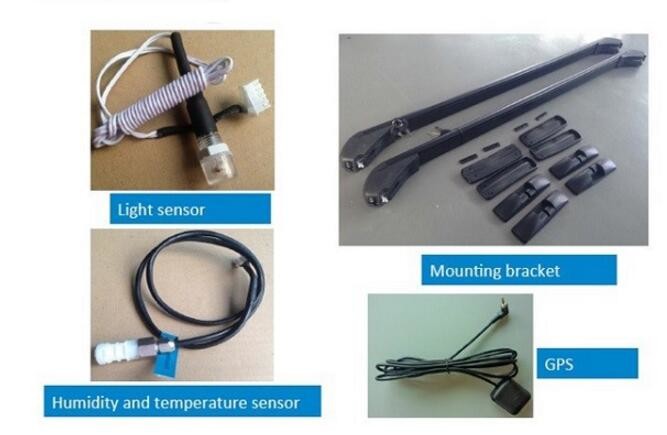

8, Use moveable mounting bracket for easy installation and maintenance

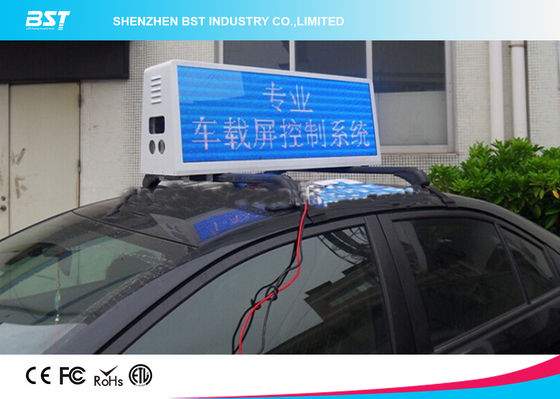

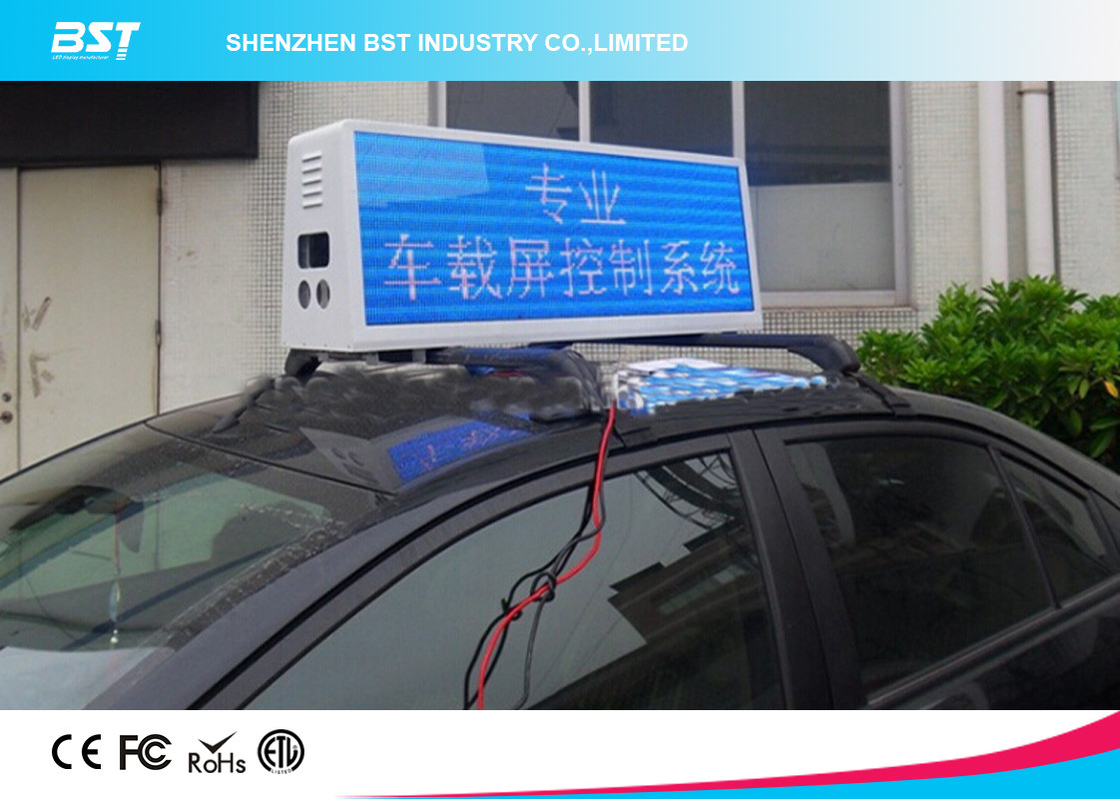

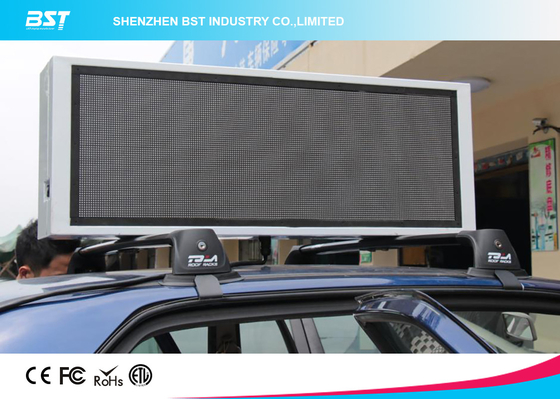

9. Location: taxi roof, for promotional advertising;
Parameters of BST-TTF-5
| Item | Car/Taxi top led sign for dynamic advertising |
| Pixel Pitch | 5mm |
| Module Size | 320*160mm |
| Pixel Density | 40000dots/sqm |
| Pixel composition | 1R1G1B |
| LED Type | SMD2727 |
| Module Resolution | 64*32 |
| The Optimum Viewing Distance | 5~120m |
| Maximum Power Consumption | 500W/sqm |
| DRIVING METHORD | 1/8 Scan Constant Current Driving |
| REFRESH RATE | ≥ 300Hz/s |
| BRIGHTNESS | ≥ 5000cd/sqm |
| WORKING TEMPERATURE | -20degree_ 60degree Optional |
| PROTECTION LEVEL | IP65 |
| POWER SUPPLY | DC12V |
| SUPPORT FORMATS | AVI, MOV, MP4, WMV, FLV, GIF, SWF, JPN, BMP, TXT, etc... |
1.18 X 7 online service
2.Enquiry will be replied in 24 hours
3.Two year warranty

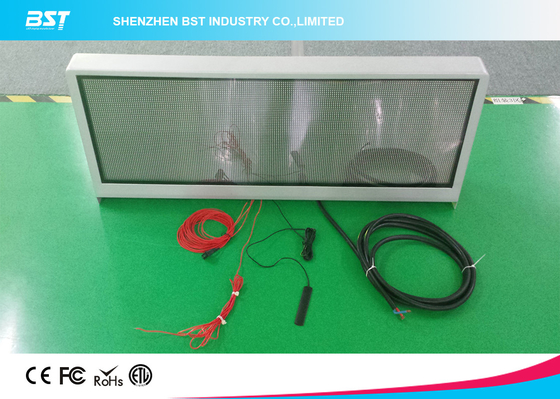

4.With all accessories
5.CKD and SKD are available
6.Free parts for any breakdown with convincing evidence
Q1:Can I have a sample for testing?
A:Yes,of course,if you need, you can buy a sample to test and check at first, we would refund the cost of this 1 pcs sample to you after you place bulk order (>50pcs).
Q2:Can I change the color of the cover?
A:Yes,if the quantity is large,the color of the cover can be customized.
The oridinary color of this product is silver, yellow etc.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send accessories,but you should pay for it.
The estamied life of the the taxi top light is 3~5years at least.
Q4:Is it easy for us to change the advertisment ?
A:Yes, the advertisement paper is directly inserted into the inside of the handle, do not need to unscrew the screws, the replacement is very convenient
Q5:Can we mix the 20ft container?
A:Yes,if the items are meet our min order qty.
