Product Details:
Payment & Shipping Terms:
|
| Product Name: | P5mm Taxi Top Full Color LED Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| Warranty: | 2 Year | OEM: | Yes |
| Type: | Double Side | Control Method: | 3G,4G,WIFI, Ethernet Cable |
| High Light: | taxi top advertising signs,Taxi roof LED Display |
||
Waterproof SMD 3 In 1 P5 Taxi Roof LED Display 1R1G1B For Commercial Advertising
Quick Detail:
1, Waterproof, rust-proof, dust-proof, anti-static, anti-mildew design
2. Repeatity, timeliness and diversity
3. Clear picture without flicker and distortion
4. Media distinctiveness of advertising and attract more viewers.
5. Ultral slim 75mm deepth on the top, ultral lightweight 18kg per pcs only
6, Over-temperature, over-current, over-voltage protection design
Description:
1. Non-stop Splendidness anywhere anytime.One server serves multiple vehicles and screens
2. Energy-saving and eco-friendly
3. High reliability. 24h/7day advertising all the time and all weather conditions
4, Support remote control for select program and adjust brightness
5. The screen is anti-moisture, anti-dust and anti-corrosion, which makes the total IP rating reach IP65.
Parameters of BST-TTF-5
|
Items |
Parameter |
|
Pixel Pitch |
5mm |
|
Resolution(W*H) |
192*64 |
|
Pixel Configuration |
1R1G1B(in 3 n 1) |
|
LED Encapsulation |
SMD 3 in 1 |
|
Pixel Density |
40000 Pixel/sqm |
|
Driving Method |
1/8 Scan |
|
Refresh Frequency |
≥1000Hz |
|
Grey Scale |
14Bit (depending on the system and IC configuration) |
|
Cabinet Dimension Size |
L:1100mm H:410mm,W:157mm(bottom),75mm(top) |
|
White balance Brightness |
4500cd/ sqm |
|
Color Temperature |
8000K±500 (can be customized for client) |
|
Viewing Angle |
Horizontal 140° Vertical 140° |
|
Optimal Viewing Distance |
5m |
|
Cabinet Working Voltage |
AC 12V ±10% |
|
Module voltage |
DC4.2V |
|
Max Power Consumption |
500W |
|
Avg. Power Consumption |
230W (Normal video playback) |
|
Lifetime |
50000hours |
|
Operating Temperature |
–10℃~ 50℃ |
|
Net weight |
18Kg/pcs |
Application:

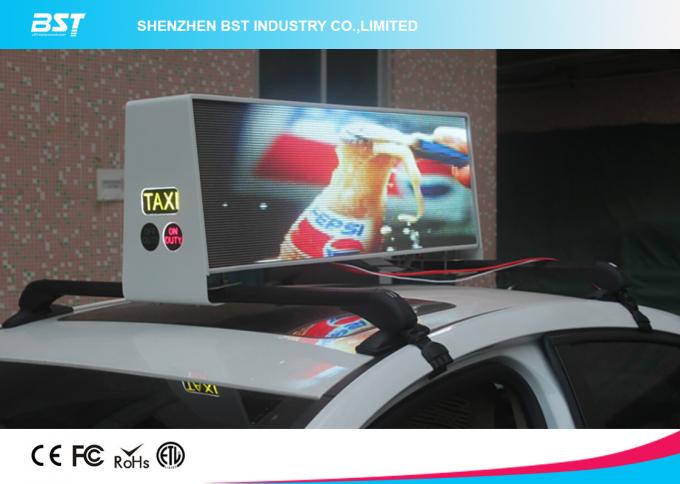

Taxi top advertising to show Animation, commercial advertising, customs video, graphics etc;
Warranty and after-service:
Warranty of LED display :
1.We guarantee all our display, modules, spare parts (Epistar Chip) for two years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty , we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you until it recovers well by remote control!
Delivery Time of LED display :
1.Delivery time: Accomplish manufacturing within 2~3 weeks after receiving the deposit.
2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.
Installation of led advertising screen:
1.We can assist the training and technical support for the customer in the factory, if the customer requires so.
2.We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
