| Type: | P5mm | Drive Method: | 1/8 Scan |
|---|---|---|---|
| Pixel: | 32X32 | Size: | 160X160mm |
| Weight: | 0.3KG/pcs | Package: | Carton Case |
| Refresh Rate: | >1500Hz | Hub Type: | Hub75 |
| Highlight: | waterproof led module,rgb led module |
||

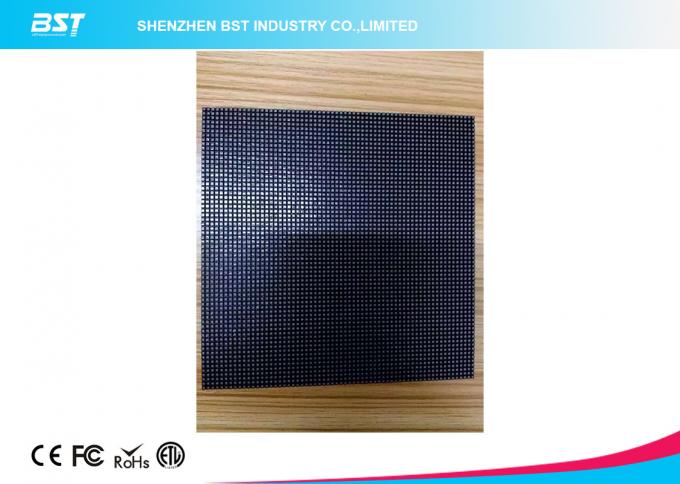

High Brightness P5 160mmX160mm RGB Led Panel Module For Advertising Display
Quick Detail:
1. 32 × 32 dots per LED module;
2. 160 × 160 mm module size;
3. SMD3528 LED type;
4. 1/8 scan constant current;
5. About 1.5 cm thick;

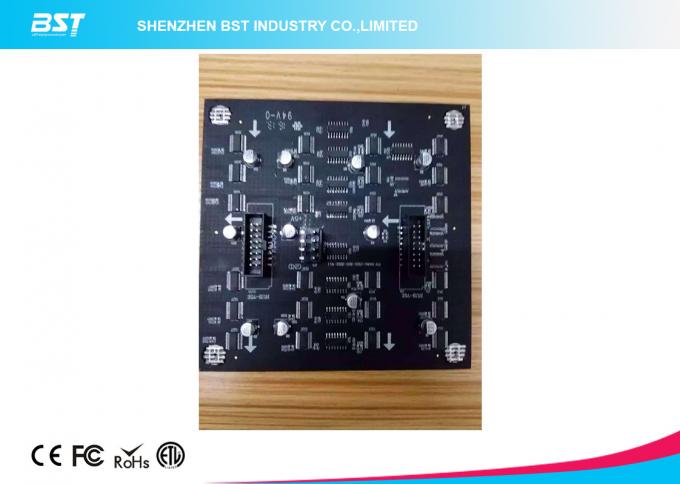

6. MBI5124 drive IC.
Detail Description:
The P5 LED module is 1R1G1B type, with 32 by 32 dots, 160 by 160 mm size;
The maximum current is about 4.2 Amp;
Carton box packed, EPE foam inside.
Specifications:
LED Parameters:
| Item | Luminous Intensity | Viewing Angle(H/V) | Wavelength | Test Condition |
| Red LED | 150 - 200mcd | 140º/140º | 620-630nm | 25℃,20mA |
| Green LED | 260 - 330mcd | 140º/140º | 520-535nm | 25℃,20mA |
| Blue LED | 55 - 65mcd | 140º/140º | 465-475nm | 25℃,20mA |
| Pixel Pitch | 5mm |
| Pixel Configuration | 1R1G1B SMD 3in1 |
| Module Resolution | 32dots*32dots for real |
| Module Pixels | 1024 dots |
| Module Size | 160mm*160mm |

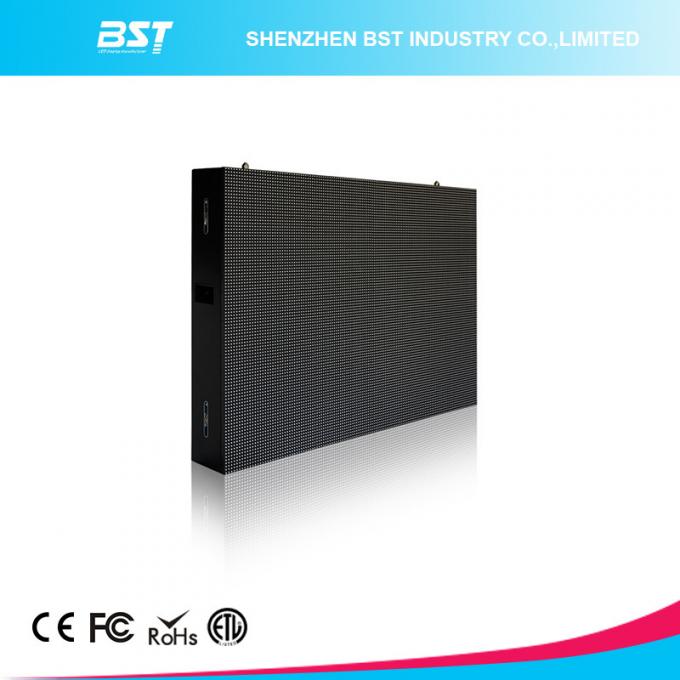

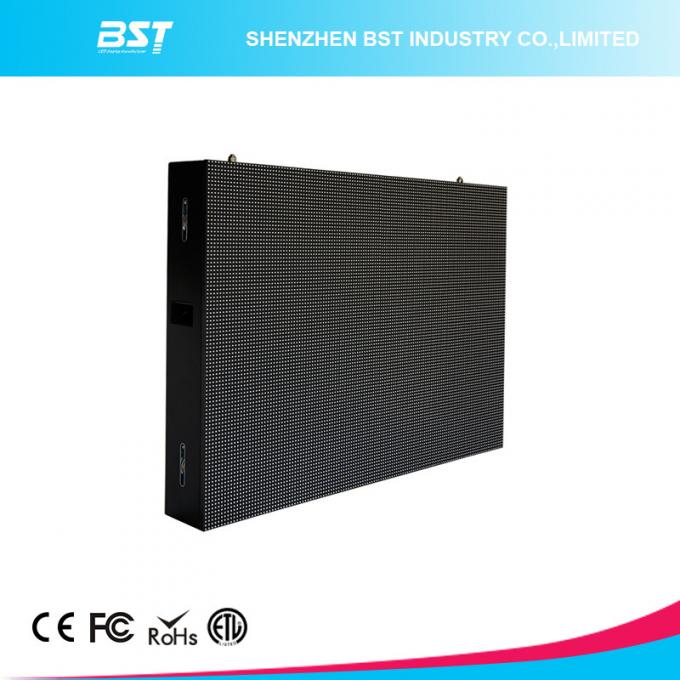

| Cabinet Size(W*H*D) | 960*800(mm) |
| Cabinet Resolution | 192dot*160dot for real |
| Module Quantity | 30 pcs |
| Cabinet Pixels | 30720 dots |
| Pixel Density | 40000 dot/sqm |
| Avg. Power Consumption | 250W/sqm |
| Max. Power Consumption | 750W/sqm |
| Material | Iron or Aluminum |
| Brightness | ≥1500cd/sqm |
| Contrasts (Max. /Min.) | 1.1:1 |
| Driving Method | 1/8 scan |
| View Angle | Horizontal 140° Vertical 140° |
| Optimal Viewing Distance | ≥5m |
| Brightness Control | Red, Green and Blue 256 Grade/Each |
| Fresh Frequency | ≥1500Hz |
| Frame Frequency | 50 - 60Hz |
| Input Voltage | AC220V/50Hz or AC110V/60Hz |
| Defects Rate | ≤0.00001 |
| MTBF | >10,000 hours |
| Life Span | ≥100,000 hours |
| Brightness Uniformity | <1% |
| Earth Leakage Current | <3mA |
| Protective Grade | IP43 |
| Temperature-operating | -40℃~80℃ |
| Humidity-operating | 10%~90% |
| Operating System | Windows98/me/2000/NT/XP/win7 |
