Product Details:
Payment & Shipping Terms:
|
Warranty: | 2years | Driving Method: | 1/13 Scan, Constant Current |
---|---|---|---|
Package: | Wooden Case | Brightness: | 1200nits /sqm |
Contrast: | 4000:1 | Color: | Full Color |
Refresh Rate: | >3000hz | ||
Highlight: | indoor full color led display,mobile led screens |
P4.8 SMD 3 In 1 Indoor Full Color Led Screen Video Wall Display For Event
Products Feature:
1) High precision LED, improve the smooth of the LED Display;
2) Slim& light cabinet, flexible to move and install for LED rental market and indoor advertise;
3) Die Cast Aluminum Cabinet, durable and won't deform;
4) High grey level, high refesh rate,high definition.
5) Support Different Input and output signals, such as HDMI, DVI, SDI, S-Video, 1080P Video wall.
6). Wide viewing angle will make your p4.8 indoor full color image and hd video led display have a better visual experience
7). High grey level, improve the contrast ratio, makes the image more real and have richful color
8). Light weight indoor p4.8 led display full sexy vedio details, easy to move and install
9).Quick-lock cabinet P4.8 indoor full color led display hd video led panel/led screen, stable and fast p4.8 indoor full color image and hd video led display
10). Navigation Holes for connectors, Navigation Cable, easy to operate and safe for rental market
Applications:
Indoor events in diferent place for rental, also can use for fixed install for indoor Advertising, Support Any installation type, hanging with truss, attached on the wall, install with pillars, on the top of the building, install on the truck or on the trailers, ect.
Specification:
BST-IF4.8 Specification | ||
Items
|
Details | |

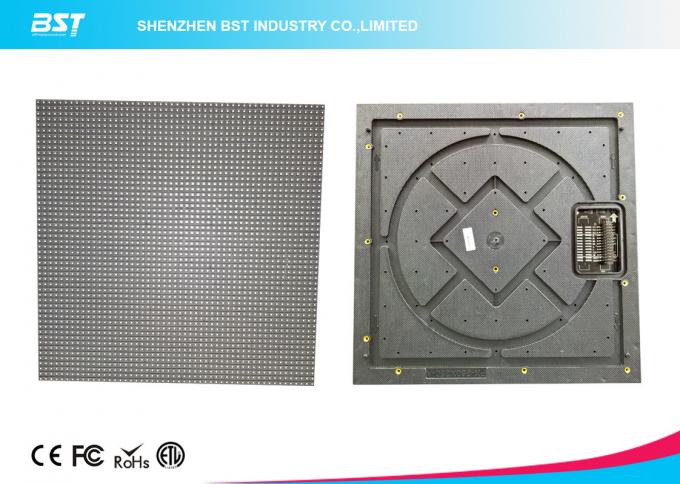

Module Details | Pixel Pitch | 4.81mm |
Pixel Configuration | SMD 3 in 1 | |
LED Size | 2121 | |
Pixel Density | 43,402 dots/sqms | |
Module Size | 250*250mm | |
Module Resolution | 52*52 dots | |
Module weight | 0.5kg/module | |

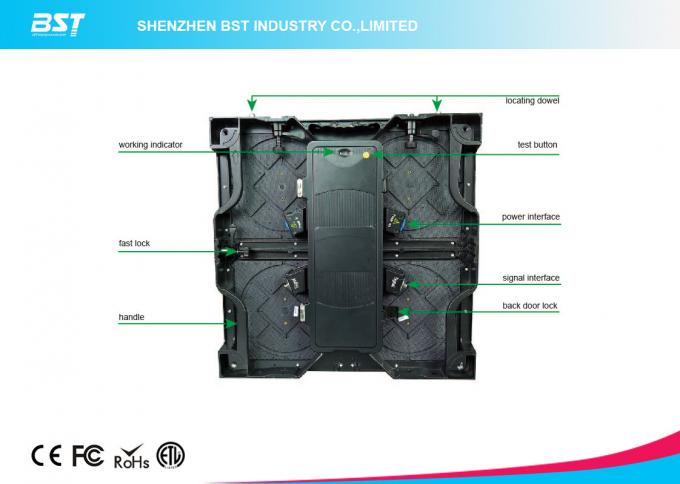

Cabinet Details | Cabinet Size | (W)500*(H)500*(T)80mm |
Cabinet Resolution | 104*104 dots | |
Optical Parameters | Brightness(cd/sqm) | 1000-1500 cd/sqms |
Grey Level | 14-15bit | |
Scan Type | 1/13 scan | |
Viewing angle | 140/140 | |
Best Viewing Distance | 4~50m | |
Electrical Parameters | AC Input voltage (V) | 110~240V |
AC Input frequency (Hz) | 50/60Hz | |
Power Consumption (W/SQM/H) | Max: 600; Ave:250 | |
Operation Environment | Storage Temperature (℃) | -40~+60 (℃) |
Operation Temperature (℃) | -20~+40 (℃) | |
Storage Humidity(Rh) | 10%~90% | |
Protection Level | IP31 | |
Lifespan | 100,000 hours | |
Installation Type | Indoor events in diferent place for rental, also can use for fixed install for indoor Advertising, Support Any installation type, hanging with truss, attached on the wall, install with pillars, on the top of the building, install on the truck or on the trailers, ect. | |
Control System | Control Type | Support both sychronous control system and asychronous control system |
Brand | Support all different kinds of control system, the most popular brand is: Nova, Linsn, ZDEC, ect
|

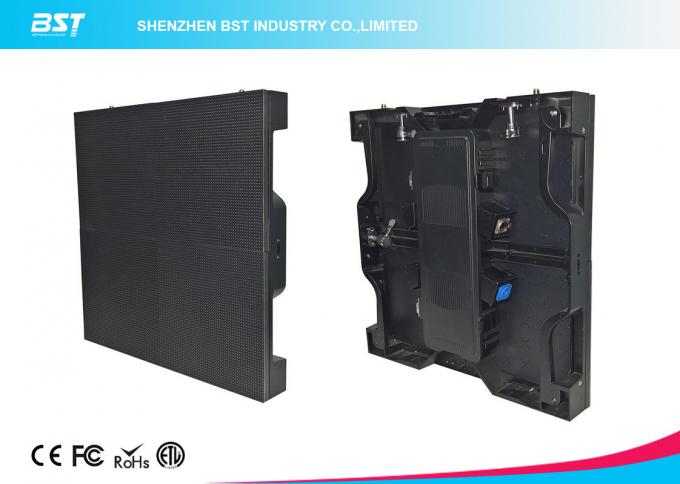

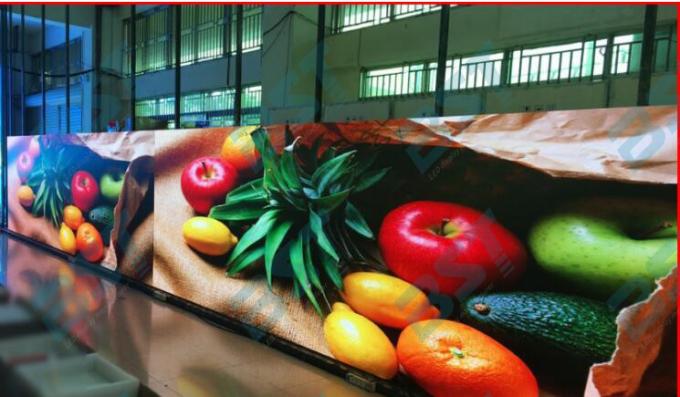

P4.81mm indoor full color LED Screen

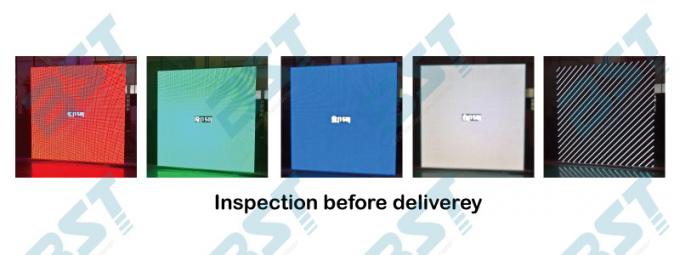

Aging Test
Controller

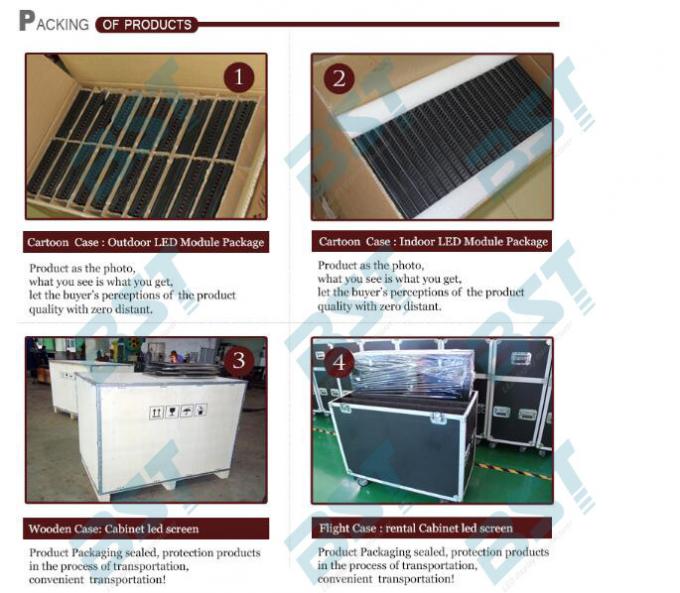

Packing

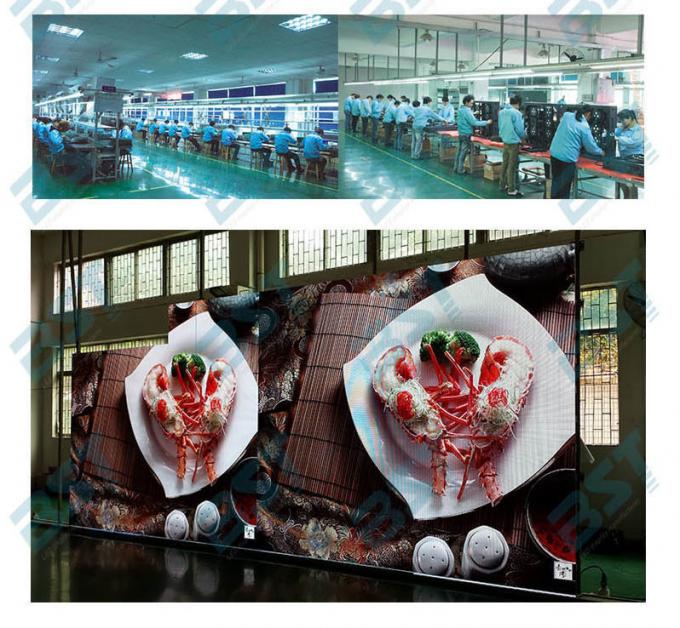

Working Shop
Our Service
After sale service:
1) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer’s country for on-site guidance.
2) Warranty period: 2 years after shipment.
3) Maintenance principles: response in time, solve problems as soon as possible and ensure the use.
4) Maintenance terms: In the Maintenance period, free of all maintenance charges. Under normal use and storage, our company will be responsible for the equipments. If there is any failure in product quality, our company will maintain and change the components for free.After Maintenance period, only charge the material costs free of manual work fees.
1.Pre-sales service:
1) Our company can arrange the original installation manual. If there is any special requirement, it is necessary to make changes of
part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time.
Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
2. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period,only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipments
FAQ:
1. May I know the Minimum order for your products:
For our products of LED Display, it's no limit for the size of the led screen, but generallay speaking, for one led display screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.
2. May I know the advantages of LED Display?
Right now, the Die Cast Aluminum Cabinet is very popular in rental market, why?
Because it has such advantages:
1) It's more light than traditional Steel/Iron LED Display cabinet;
2) It's durable and Corrosion-proof and anti- rust LED Display Cabinet;
3) It won't deform, so it can keep the uniform and flatness of the led display screen;
4) Small cabinet, easy to move, install and un-install in any advertising application and rental market..
3. How long time I can get the cargos?
For full color LED Display, Our production time is about 12~ 15 working days;
When we confirmed the order, after we get your deposit, we can start production, we will update the production details in time; Before finish, we will notice you and after we get full payment, we can delivery the goods to you.
About the time from start port to destination, that depends on the distance and the state of the sea company or airport company.
4. May I know the package details?
For our product, generally we can provide you package by Plywood case or Flight case.
For this product Promotion: p4.8 indoor full color led display hd video led panel/led screen SDI/DVI/HDMI Video on live, for rental market, we suggest you use flight case, generally 8 cabinets in one case.
1 | Customers send detailed inquiry to us by email or telephone. |
2 | We reply with price, specifications, packing, photos, and other details. |
3 | Both of us agree the price and confirm the details. |
4 | We write the proforma invoice and send to customers. |
5 | Customers make deposit. |
6 | We make mass production samples. |
7 | We send mass product samples or send photos to customers for approval. |
8 | Customers confirm the mass production samples. |
9 | We start mass production. |
10 | We show ready products' photos or customers inspect on site. |
11 | Customers make balance payment. |
12 | Delivery is arranged. Feedback from customers for better work in future. |
