High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan

High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan
High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan

Large Image :  High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan

Product Details:
Place of Origin: China
Brand Name: BST
Certification: CE,FCC, CCC, Rohs,ISO
Model Number: BST-IF7.62
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm / Piece
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 7 - 20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000sqm per month
Detailed Product Description
Warranty: 2years Driving Method: 1/4 Scan, Constant Current
Package: Wooden Case Brightness: 1500nits /sqm
Contrast: 4000:1 Color: Full Color
Highlight:

LED Video Wall Screen

,

mobile led screens

High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan


Products Feature:

 1. The Cabinet is made of Alumium, so it's lighter than the steel one.
 2. The Led Modules is 244X122mm/244mmX244mm, more easier for install and uninstall.
 3. The Brightness is higher, more than 1500nits/sqm.
 4.  High brightness which is adjustable to sufficiently meet the needs of various application environments.
 5.  The raw material of all of the Indoor products including LED chips, mask, and cabinets have
the ability of enduring high temperature and high humidity.
 6.  Every production process is well controlled and all of the electronic components are covered by
2mm Tri-Guard Lacquer to ensure no oxidation, no rusty and no moisture. Five-Guard Lacquer will be used
for special requirements
 7. Display even after long-term use of perfect quality reproduction and enough brightness .

High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan 0

Specification:


BST-IF7.62mm Specification
Parameter
Value
Brightness1500 nits (adjustable)
Red Wavelength (dominant)623nm±1.5nm
Green Wavelength (dominant)525nm±1.5nm
Blue Wavelength (dominant)470nm±1.5nm
View Angle (min, 50% brightness)Horizontal 120(+60/-60) deg. Vertical 120(+60/-60) deg.
Best Viewing Distance7meters
Brightness Control100 levels
Digital Processing 16 bits
Grey Scale65536 levels per color
Colors281 trillion
Display Refresh Rate≥1000Hz
Contrast1000:01:00
Frame Rate60 Hertz
Drive TypeConstant current drive
Scan Type1/4 scan
Input Voltage80VAC-264VAC wide range, 50/60Hz
Color Temperature6500 deg. k
Defects Rate≤0.00001
MTBF>10,000 hours
Life Span(< 50% Brightness)>100,000 hours
Module Brightness Uniformity<5%
Ingress ProtectionIP43
VentilationQuite running fans
Earth Leakage Current<2mA
Operating Temperature Range-50 to +60 deg. C
Storage Temp Range-40 to 60 deg. c
Operating Humidity Rangeoperating   10~90%RH
Display Input FormatVGA, DVI, RGBHV, PbPr(HDTV), Composite, S-Video, TV
System Operation PlatformWINDOWS(WIN2000,WINXP,WIN7,WIN8)


P7.62mm indoor full color LED Screen

High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan 1
High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan 2

High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan 3

Controller

High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan 4

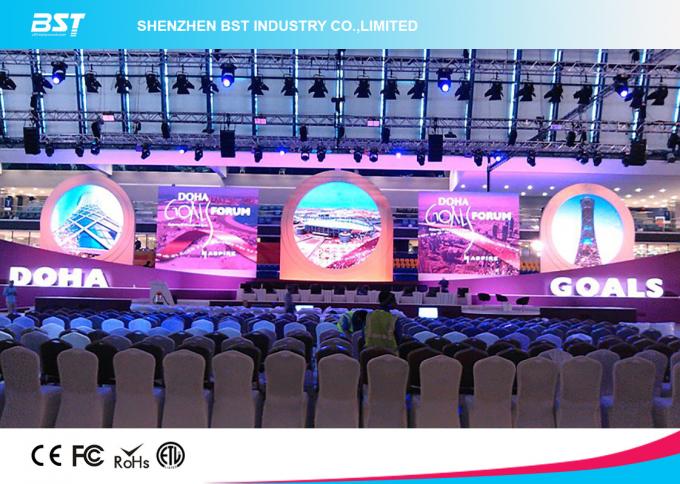

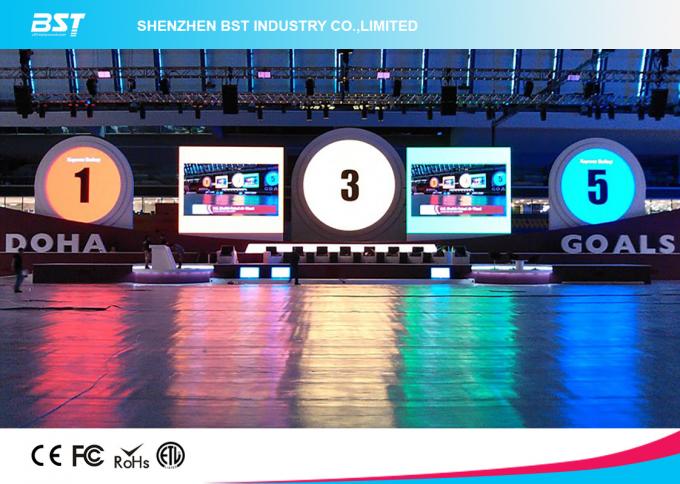

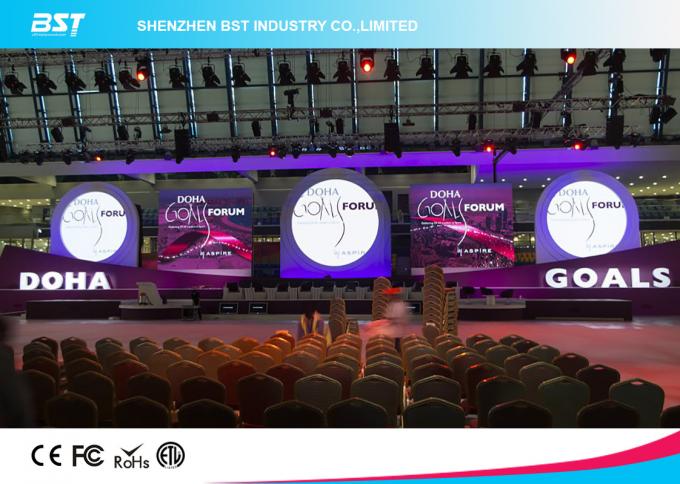

Applications:

Suit for advertisement, stage, stadium, exhibition, TV Show, mansion video wall, shopping mall, banks, schools,
bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.

High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan 5High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan 6High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan 7


Our Services



We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.

Technology Training

1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.

CAD Drawing and Fixing

1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.

Additional service:

We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.

Trade Terms

1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying

2.Shipping freight are quoted under your requests

3.Shipping port:ShenZhen,Mainland China

4.MOQ:1pc


High Brightness P7.62 Indoor Full Color Led Screen Video Wall Displays With 1/4 Scan 8
