Product Details:
Payment & Shipping Terms:
|
| Warranty: | 2years | Driving Method: | 1/8 Scan, Constant Current |
|---|---|---|---|
| Package: | Wooden Case | Brightness: | 1200nits /sqm |
| Contrast: | 4000:1 | Refresh Rate: | >1500hz |
| High Light: | LED Video Wall Screen,mobile led screens |
||
High Refersh rate P10 indoor full color LED Screen For Stage / Exhibition with 1/8 scan
Products Description:
1. indoor electronic advertising led display screen
2. Big viewing angle
3. High brightness
4. 2 years warranty
5. High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system
6. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system
7. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof your LED display screen's investment.
8. Long-term Brightness:More 2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
9. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
10. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Specification:
| BST-IF10 Specification | |
Technical DataModel | PH10 |
| Pixel Pitch | 10mm |
| Physical Density(pixels/m²) | 10000 |
| LED Shape & Size | SMD 3 in 1 |
| LED Arrangement | 1R1G1B |
| Module Size(mm) | 320X160 |
| Module Resolution | 32X16 |
| Drive Mode | Dynamic 1/8 Duty Constant Current |
| Brightness | ≥1200cd/m² |
| Contrast(cd/m²) | ≥2000:1 |
| View Angle, 50% Brightness | 140°/140° |
| Minimum View Distance | 10m |
| Grey Scale | 10bits/1024levels |
| Color Capacity | 1.07billion |
| Maximum Power Consumption | 860W/m² |
| Ave.Power Consumption | 280W/m² |
| Operation Power Source | AC90-260V 50-60HZ |
| Frame Frequency | 60HZ |
| Refresh Rate | 240-1000HZ |
| Brightness Adjustment | 0-100% 8 levels automatic |
| Gamma Correction | -10 |
| Correction Scale Level | 16bits |
| Color Temperature | 5000K |
| Brightness Correction | Pixels, Module, Cabinet Correction |
| Input Source Support | Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI |
| Control Distance | UTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km |
| Operating Humidity | 10-90%RH |
| Operating Life Span | 100,000Hours |
| MTBF | 5000 Hours |
| Protection Ratings | IP31 |
| Out of Control Rate | 0.01% |

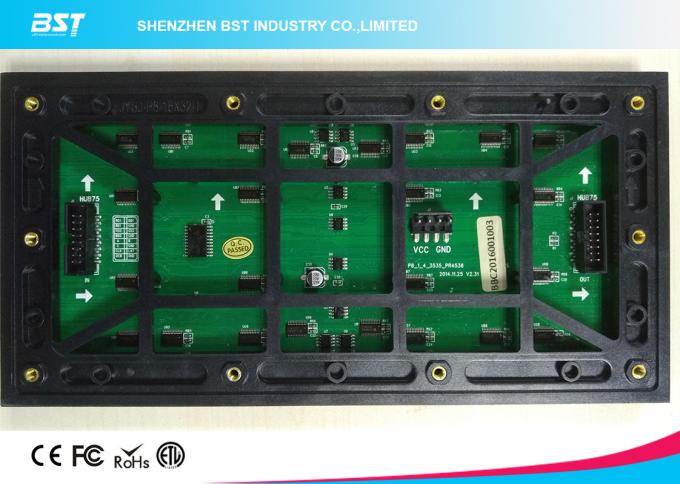

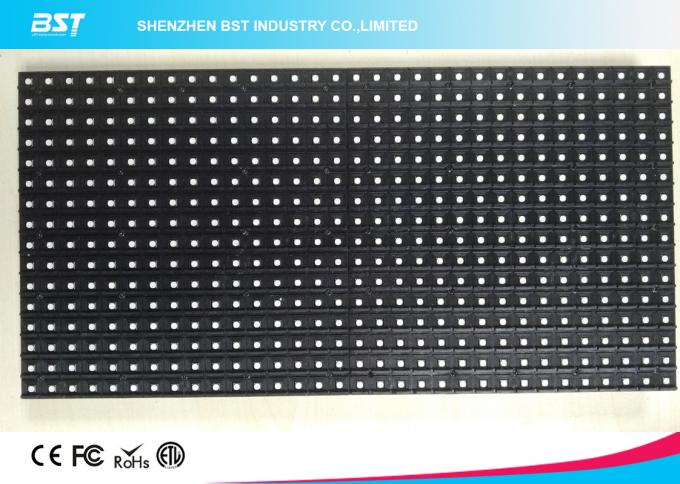

P10mm indoor full color LED display
Controller
Packing

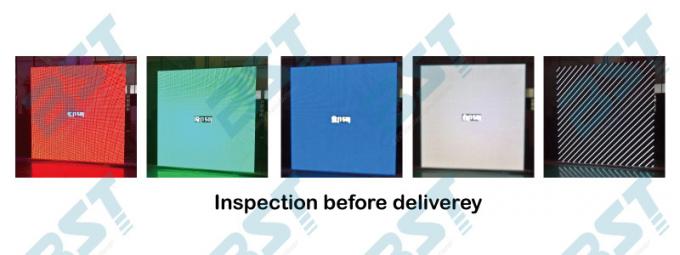

Methods for Quality Assurance
a.Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b.Vibration Testing
Condition: 3-5 mins up and down in 5mm range

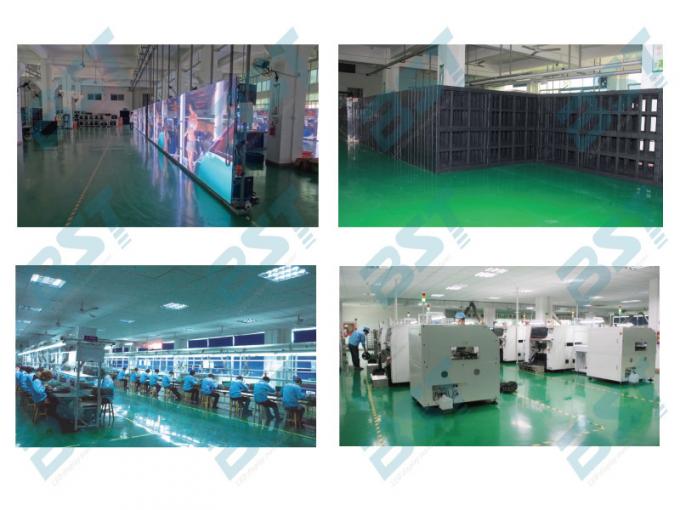

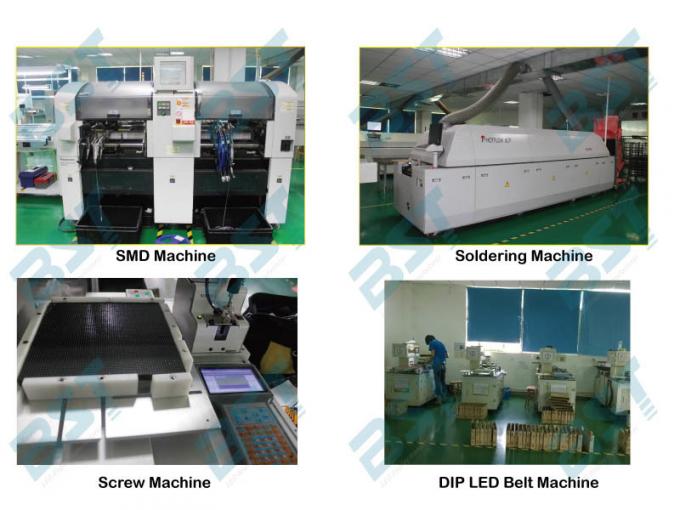

Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Applications:
Suit for advertisement, stage, stadium, exhibition, TV Show, mansion video wall, shopping mall, banks, schools,
bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.
Guidance service: We can guide on line if customers have questions about the installation and usage. For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, we can dispatch our engineer for on-site guidance.
Warranty period: 2 years after shipment.
Maintenance service:
Maintenance principles: response in time, solve problems as soon as possible and ensure the use.
Maintenance terms: In the Maintenance period, free of all maintenance charges. Under normal use and storage, we will be responsible for the equipments. If there is any failure in product quality, our company will maintain and change the components for free. After Maintenance period, only charge the material costs fees free of manual work fees.
