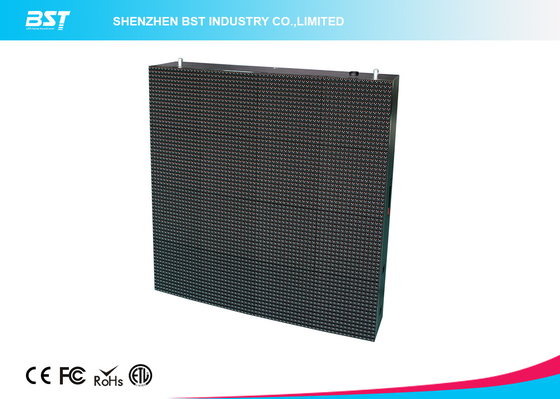

Wall Mounted Flexible P10 Outdoor Full Color Led Display For Advertising

Large Image : Wall Mounted Flexible P10 Outdoor Full Color Led Display For Advertising

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	BST
Certification:	CE,FCC, CCC, Rohs,ISO
Model Number:	BST-FL-10-F

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm / Piece
Price:	Negotiation
Packaging Details:	wooden case
Delivery Time:	10 - 20 days after receive payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Density:	10000 Dots Per Sqm	LED Type:	DIP346 Oval Lamp
Refresh Rate:	>1500Hz	Brightness:	>6500 Nits
Warranty:	2 Year	OEM:	Yes
High Light:	flexible led display screen , flexible led video screen

Wall Mounted Flexible P10 Outdoor Full Color Led Display For Advertising

Quick Detail:

1. High quality with reasonable price
2. Strict predelivery test,
3. User-friendly control

4, Strict predelivery test
5, IP65 class protection
6, Warranty: 2 year

Description:

1. High brightness which is adjustable to sufficiently meet the needs of various application environments.
2. The raw material of all of the outdoor products including LED chips, mask, glue and steel cabinets have the ability of enduring high temperature and high humidity, and being anti-UV, waterproof, anticorrosion and antirust.
3. Every production process is well controlled and all of the electronic components are covered by 2mm Tri-Guard Lacquer to ensure no oxidation, no rusty and no moisture. Five-Guard Lacquer will be used for special requirements.
4. Large viewing angle, up to 120°horizontally and 60°vertically, with no image distortion and no color cast at any angle within this range.
5. All of the cabinets are tested by flush, shower and soaking, to ensure the waterproof grade in front side to be IP65 and back side to be IP43.
6. Good performance in color uniformity. The differences among LED chips in the same screen are no more than 3nm in wavelength, 1.2 times in brightness, 0.2V in power voltage, the waveform must be normal distribution and the color formation must be RGB:3:6:1 as required.

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	BST-FL-10-F
Pixel Pitch	10mm
Module Size	160mm*160mm
Module Resolution (W*H)	16 dots*16 dots
Pixel Density	10000 dots/ ㎡
LED Type	DIP346
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	1280×960×150mm
Cabinet Resolution	128dots×96dots
Brightness	≥6500cd/㎡
Contrast	≥2000:1
Viewing Angle	120°(Horizontal )/70°(Vertical )
Best Viewing Distance	10m-300m
Grey Scale	10bits/1024levels
Color Capability	16777216
Color Temperature	5000-9300K
Maximum Power Consumption	1000 W/m2
Average Power Consumption	350 W/m2
Working Voltage	AC 220V/110V s±10% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	>1500HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40℃~+85℃Working:-20~+65℃
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000/Win 7/Win 8
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, RGB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	LINSN / NOVA / DB-STAR
Software	LED studio 10.0
Waterproof Level	IP65(Front Side), IP54 (Back Side)
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

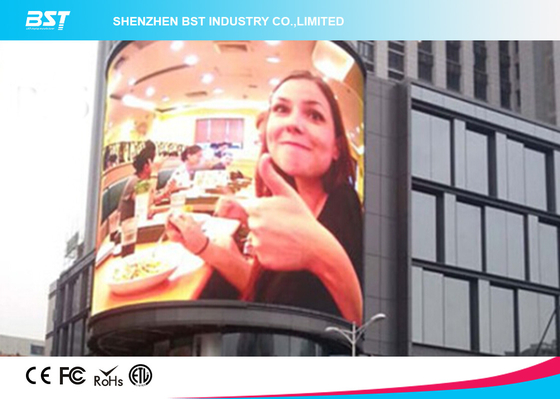

Applications:

Our products have been widely used in venues as banks,Commercial advertising, animation, mobile media, shopping center,exhibitions, fashion shows, concerts,Video, graphics,sports, entertainment, events,advertising, stage backdrop, stadium, business establishments,TV shows, car shows, Stadium perimeter, etc
