Product Details:
Payment & Shipping Terms:
|
Density: | 1600 Dots Per Sqm | LED Type: | Oval Lamp 3mm |
---|---|---|---|
Module Size: | 1000mmX17 Mm | Cabinet Size: | 1000mmX1000mm |
Warranty: | 2 Year | OEM: | Yes |
Highlight: | transparent led display,transparent video display |

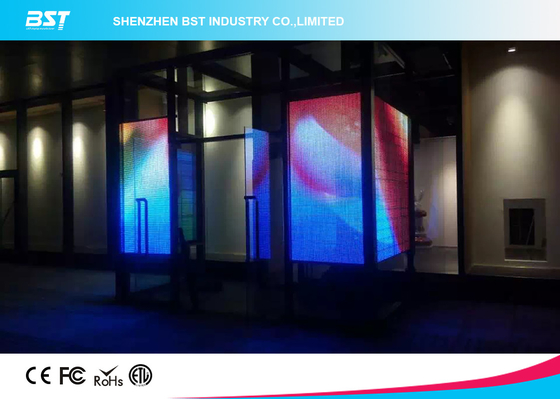

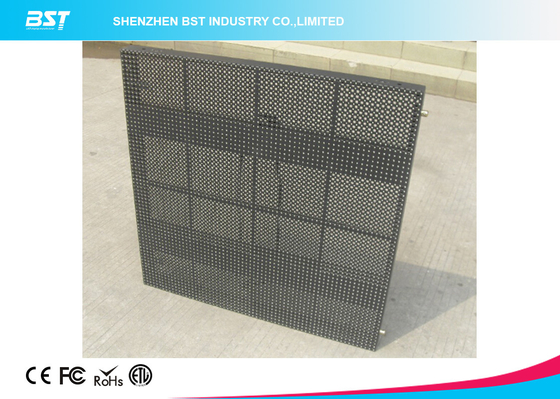

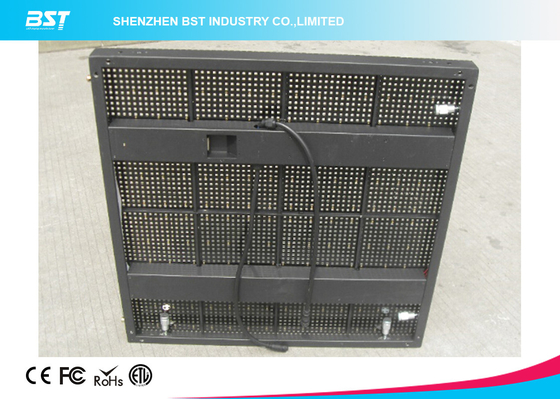

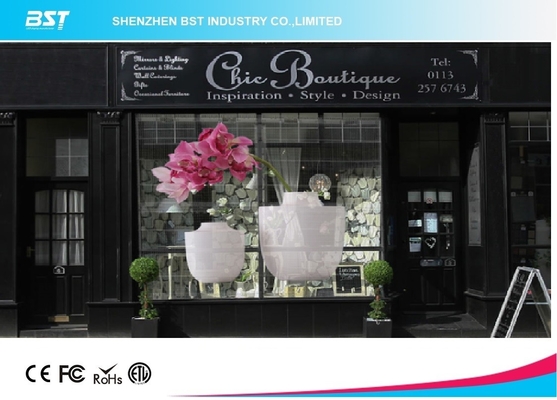

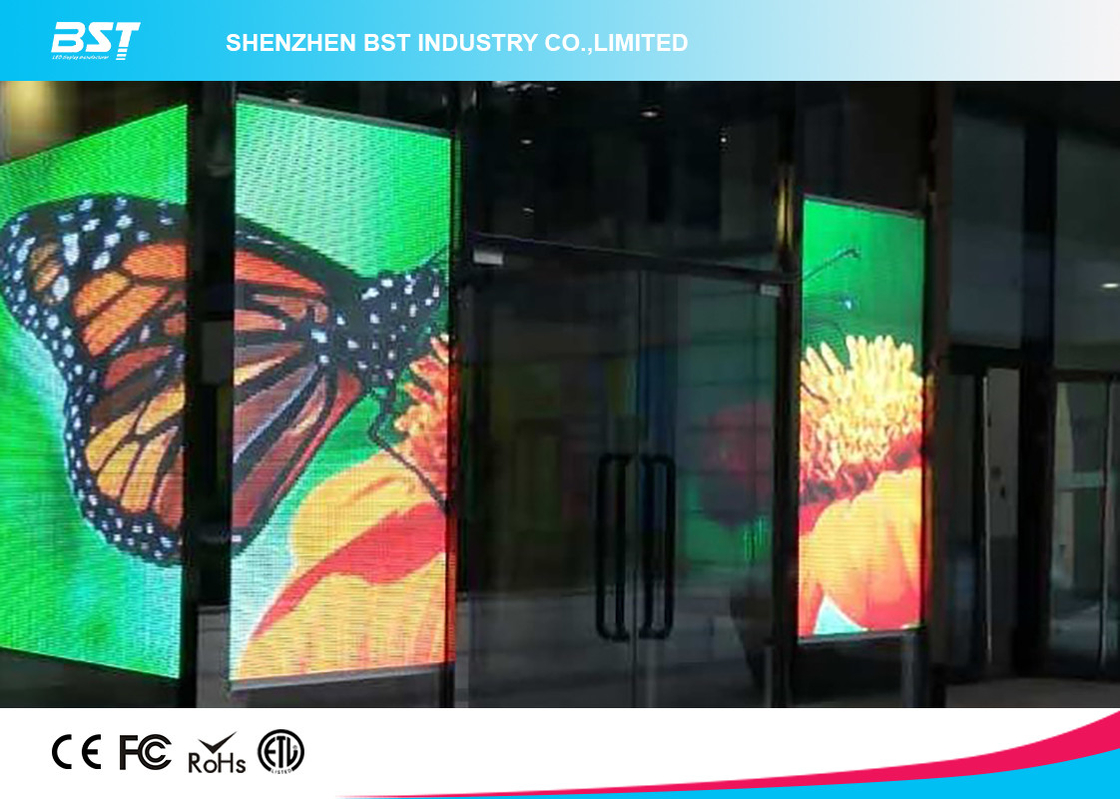

P25 Aluminum Outdoor Transparent LED Screen Curtain LED Advertising Display
Quick Detail:
1. Ultra thin and light weight (only 35Kg/panel), portable handy
2. Aluminum cabinet CNC process with high precision
3. Modular design, make it easy to maintain
4. HD show without water ripple on program broadcasting
5. Easy to assemble and dismantle with fast locks on each cabinet
6. High gray level and good color uniformity with brand IC, led lamp
7. Energy-saving without fans design, natural cooling effect
Description:
1. 3 Highs: high gray scale, high refresh, high contrast, with vivid display effect;
2. High brightness & Waterproof Brightness up to 5,000nits, IP65 waterproof level. It provides a perfect solution for outdoor stage use.
3. 2 Aging tests: 48 hours for led module test and 72 hours for led screen test to ensure the perfect quality.
4. Fast Lock System & Natural Cooling System Design .Fast lock system enables installation and dismantle to be much faster: an average worker can finish 50- 70 panels per hour. Natural cool system design results in good heat dissipation and less power consuming.
5. Various applications: suit for hanging up, piling and fixing installation. Usage: indoor information publish, indoor advertising, etc.;
Applications:
Stadium perimeter, entertainment events,Commercial advertising, mobile media, night club, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
Specifications:
1. LED Display Technical Parameter
BST-ORC-25 (Pitch 25mm outdoor full color) |
|
Colour temperature |
5000~9000 k |
Pixel structure |
φ3 oval lamp, 1R1G1B |
Pixel pitch |
25mm |
Pixel density |
1600 dots/㎡ |
Luminance |
5000cd/㎡ |
Module dimension |
1000mm(W) * 17mm(H) |
Module resolution |
40 pixel(W) * 1 pixel mm(H) |
Cabinet dimension |
1000 * 1000mm |
Cabinet resolution |
40* 40 |
Cabinet area |
1 sq. meter |
Optimal visual distance |
>20m |
Visual angel |
120 / 70 degree (H/V) |
Max power consumption |
≤600w / ㎡ |
Average power consumption |
≤300w / ㎡ |
Brightness adjustment |
Adjust according to the environment |
brightness software (0%-100%adjustable) |
|
Gray scale |
point by point 4096 gray grade levels of |
each color, 16 bits γ correction available |
|
Drive mode |
Static, constant current |
Frame frequency |
≥60HZ |
Refresh frequency |
≥1500HZ |
Input voltage |
AC110V220 volts |
Operation temperature |
﹣40℃~ +65℃ |
Operation humidity |
10%~90% |
Input signal |
S-video, RF, RGB, Yuv, YC, composite… |
Control system |
DVI card + master control card + receiver card |
MTBF |
>5000 hrs |
Life span (50% brightness) |
100, 000 hrs |
Malfunction dot rate |
1/10000 |
Ingress protection rate (Front/ rear) |
IP65 / IP54 |
Cabinet material |
Epoxy paint coated, aluminum / iron |
Application: |
Rental / Permanent installation available |
