Product Details:
Payment & Shipping Terms:
|
| Density: | 4096 Dots Per Sqm | LED Type: | SMD3535 |
|---|---|---|---|
| Module Size: | 500mmX95 Mm | Cabinet Size: | 500mmX500mm |
| Warranty: | 2 Year | OEM: | Yes |
| High Light: | transparent led panel,transparent led display |
||
High Definition P15.625 Transparent LED Screen , Mobile Media Stage LED Display
Quick Detail:
1. Excellent visual effect, better viewing effect for text and graphic or video
2. Large viewing angle,both H/V can reach 140 degree;getting vivid effect within any position of the viewing range;
3. High contrast ratio and good evenness, high uniformity,without mosaic
4. Resist of the high temperature and antioxidation and anti-statiic;
5. Any led in each pixel can be respectively replaced, which reduce the cost of the display maintaince.
6. Long using life & MTBF
Description:
1. 3 Highs: high gray scale, high refresh, high contrast, with vivid display effect;
2. High brightness & Waterproof Brightness up to 6,000nits, IP65 waterproof level. It provides a perfect solution for outdoor stage use.
3. 2 Aging tests: 48 hours for led module test and 72 hours for led screen test to ensure the perfect quality.
4. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
5. Various applications: suit for hanging up, piling and fixing installation. Usage: indoor information publish, indoor advertising, etc.;
.
Applications:

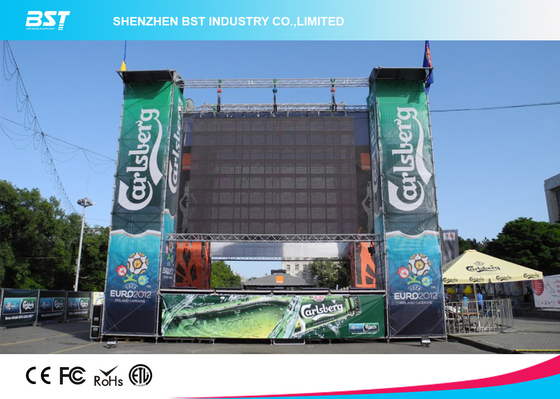

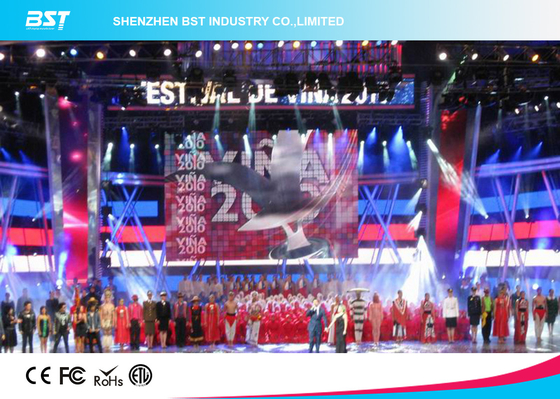

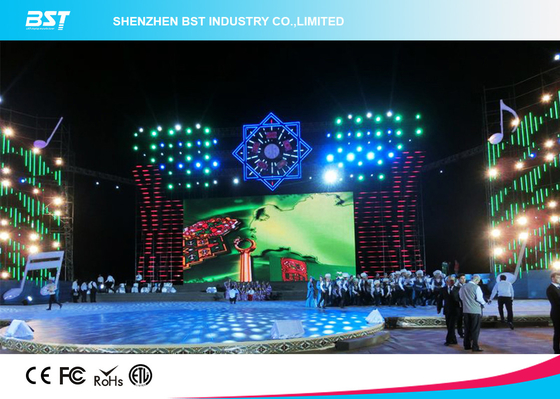

Stadium perimeter, entertainment events,Commercial advertising, mobile media, night club, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
Specifications:
1. LED Display Technical Parameter
|
Model No. |
BST-ORC-15 |
|
Pixel Pitch |
15.625mm |
|
Module Size |
500mm*95mm |
|
Module Resolution (W*H) |
32 dots*1 dots |
|
Pixel Density |
4096 dots/ ㎡ |
|
LED Type |
SMD 3535 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Static Drive Constant Current |
|
Cabinet Size |
500×500×95mm |
|
Cabinet Resolution |
32dots×32dots |
|
Brightness |
≥6000cd/㎡ |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
15m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
900W/m2 |
|
Average Power Consumption |
400 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
-40~+65℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000/Win 7/Win 8 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(Front Side), IP54 (Back Side) |
|
Installation |
hung and stand |
|
Out of Control Rate |
0.01 % |
