Product Details:
Payment & Shipping Terms:
|
Production Name: | Indoor Rental LED Display | Pixel Pitch: | 3.91,4.81,6.25 |
---|---|---|---|
LED Type: | SMD2121 Black LEDs, SMD3528 | Module Size: | 250mmX250mm |
Cabinet Size: | 500mmX500mm | Warranty: | 2 Year |
Highlight: | hire led screen,LED video wall rental |
High refresh rate P3.91 P4.81 P6.25 rental led display for stage
Quick Detail:
1, Lightweight - weighs only 8kg, single person can be a single portable, and extremely easy to install;
2, Thin - box with die casting aluminum, high-strength, high toughness, high precision and difficult to deformation, for the transport of effort;
3, High-precision - accurate to size of the electrical and mechanical processing 0.1mm;
4 Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements;
5, Fast - up and down box connected by quick-locking mechanism, 10 seconds to complete a cabinet installation, the installation of high accuracy;
6, Reliable - high strength hardness, good heat dissipation;
7, Cost - light weight housing, low cost of installation required; low power box, save operating costs and reduce labor costs.

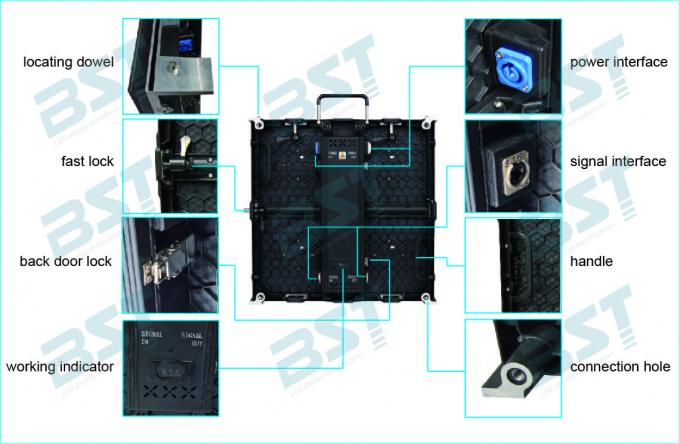

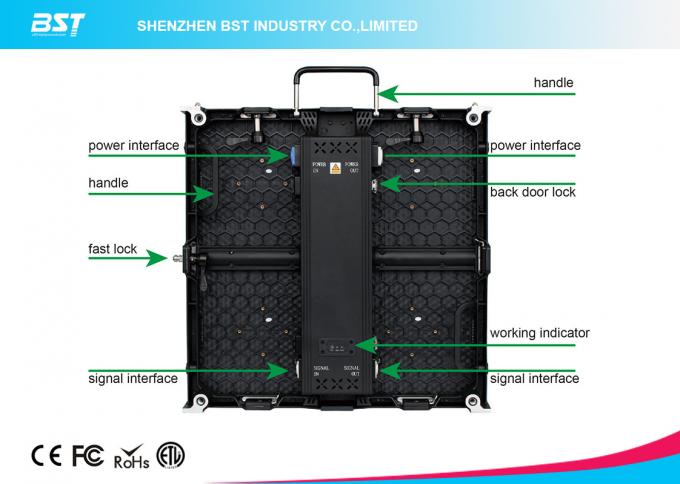

8. Indication lights to show status of power and signal status
9. Fast cooling: excellent heat dissipation performance to protect the module circuit
10. High precision: seamless splicing though CNC machine
Parameters of BST-IR-3
Module | Pitch/mm | P3.91 | P4.8 | P6.25 |
Module size/mm | 250x250 | 250x250 | 250x250 | |
Density of pixel/(dots/m2) | 65536 | 43264 | 40,000 | |
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | |
Led encapsulation | SMD2121 | SMD2121 | SMD3528 | |
Resolution of module | 64X64 | 52x52 | 40x40 | |
Main | Optimum viewing distance | 3-10m | 4-15m | 6-20m |
View angle / ° | 140H,120V | 140H,120V | 140H,120V | |
Max power consumption/W/M2 | 1,100 | 1,100 | 1,000 | |

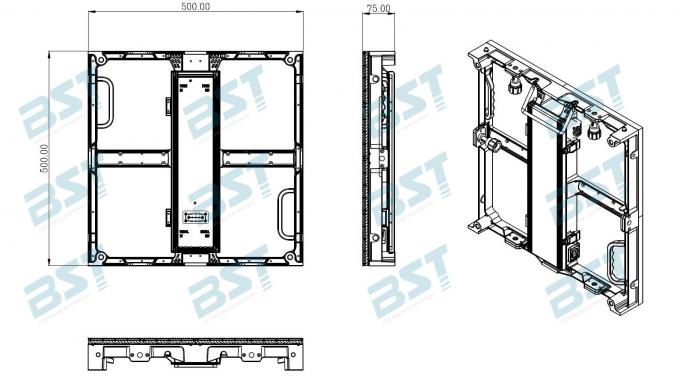

Size of cabinet/mm | 500X500 | 500x500 | 500x500 | |
Resolution of cabinet | 128X128 | 104x104 | 80x80 | |
Weight of cabinet/kg | 7.5 | 7.5 | 7.5 | |
Driving method | 1/16 scan constant current | 1/13 scan constant current | 1/6 scan constant current | |
Refresh rate Hz/S | ≥1500 | ≥1500 | ≥1500 | |
Luminance of white balance | ≥1500 nits | ≥1500 nits | ≥1800 nits | |
Operation of Environmental Temperature/°C | below 30 to above 50 | |||
Working vlotage | 110-220 VAC/+/- 10% | |||
Grey scale/color | displaying colors≥16.7M(synchronized) | |||
Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | |||
Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |||

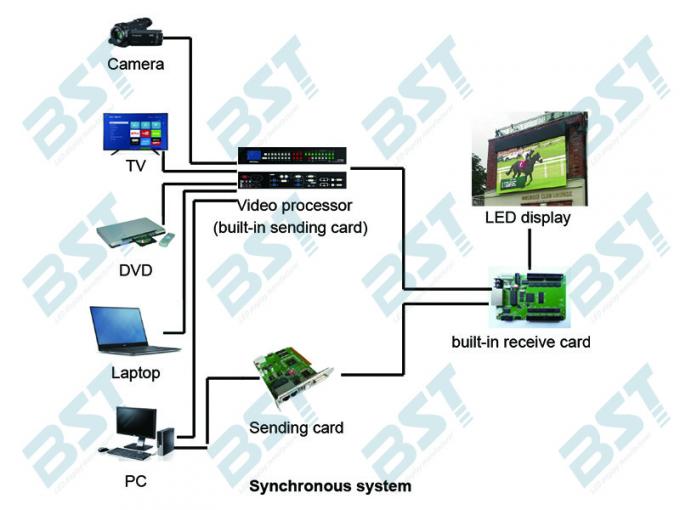

Control system | linsn(sending card,receiving cards and Hubs) | |||
Average of non-failure life | >50,00h | |||
Life span | >100,000h | |||
Defect dot rate | <0.0002 |
Our Service
1) Reply your inquiry in 24 working hours.
2) Customized design is available,OEM & ODM are welcomed.
3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4) Special discount and protection of sales area provided to our distributor.
5) Warmly welcome your visit in our company if available.
6) . Warranty
(A) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(B) We will provide maintenance for a lifetime and charge for the raw materials only.
7) Technology Training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country by negotiation.
8) Additional Service
We provide you the forwarding information, and some other information such as flight case, structure information for your reference for free.
Best Viewing Distance of Rental led display:
P3 led display for the best viewing distance between 3-10m
P4 led display for the best viewing distance between 4-15m
P5 led display for the best viewing distance between 5-20m
P6 led display for the best viewing distance between 6-25m
P8 led display for the best viewing distance between 8-30m
P10 led display for the best viewing distance between 10-33m
P12 led display for the best viewing distance between 12-40m
P16 led display for the best viewing distance between 15-45m
P20 led display for the best viewing distance between 18-60m
P25 led display for the best viewing distance between 20-70m
P31.25 led display for the best viewing distance between 25-100m
