Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 8mm | LED Type: | SMD3535 |
|---|---|---|---|
| Density: | 15625dots/sqm | Cabinet Size: | 1024mm X 768mm |
| Package: | Wooden Case | Brightness: | >6000nits |
| High Light: | outdoor advertising led display screen,outdoor full color led display |
||
P8 SMD3535 Iron/Aluminum Outdoor advertising LED Display screen with 64dots X 48dots
Quick Detail:

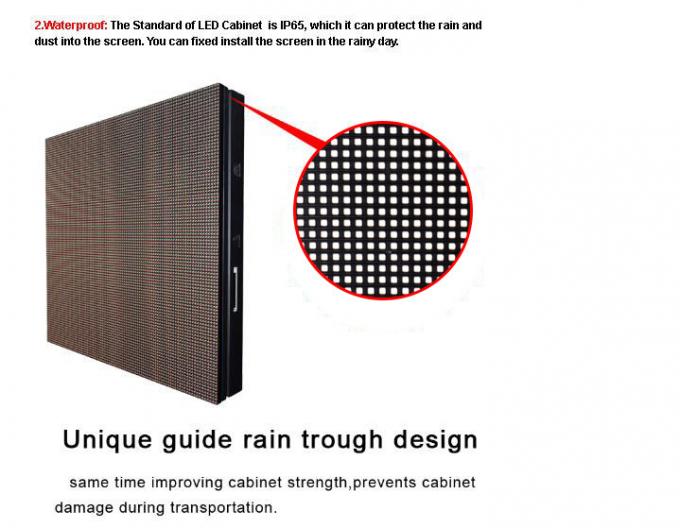

1. Antiseptic and durable, can be used outdoor in all weather.
2. LED module has easy & simple installation interface and user friendly software to ensure the user
friendly interface of the LED display system.
3. With full aluminum alloy structure for light weight and waterproof advantages, BST outdoor LED display
is an perfect external multimedia LED display system designed for changeable and adverse outdoor
environment.

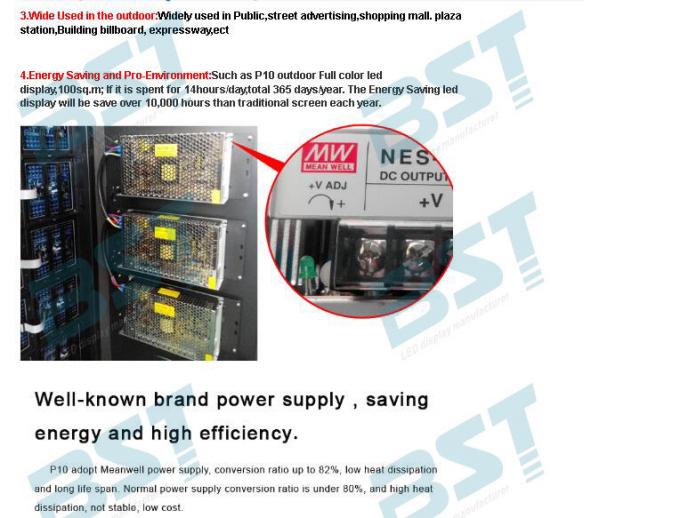

4.Energy Saving≥50%, Environment Protection
5.Free Back Service Path, Excellent Display Effect
6.Dark black surface, firm and flat, anti-UV module parts, which guarantees screen in firm shape
7.Power supplier and control system, backup solution is available to guarantee.

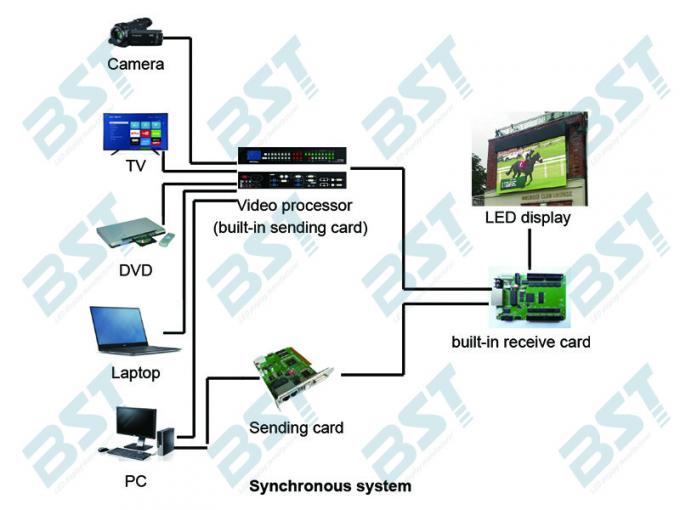

8.Camera optional, Lan cable, 3G, WIFI, Multi-control, Ethernet for data transmittance options.
9.Vivid and exact picture, minimum noise
10.advanced test equipment, support different PC operationsystem
11.play a variety of information like video, word, flash, music, clock, graph etc
Specification:
| Model Number | BST-OA6 | BST-OA8 | BST-OA10 |
| Pixel Pitch | 6mm | 8mm | 10mm |
| Pixel Density/㎡ | 27776 dots | 15625 dots | 10000 dots |
| LED Configuration | 1R1G1B SMD3535 | 1R1G1B SMD3535 | 1R1G1B SMD3535 |
| Module Size | 192mm*192mm | 256mm*256mm | 160mm*160mm |
| Module Resolution | 32*32 dots | 32*32 dots | 16*16 dots |
| Panel Dimension (WxHxD) | 960mm*960mm | 1024mm*768mm | 1280mm*960mm |
| Panel Resolution | 160*160 dots | 128*96 dots | 128*96 dots |
| Best Viewing Distance | 6-120 | 8-150 | 10-200 |
| Driving Mode | Constant 1/4 | Constant 1/4 | 1/2 scan |
| Refresh Rate | ≥ 1500 Hz | ≥ 1500 Hz | ≥ 1500 Hz |

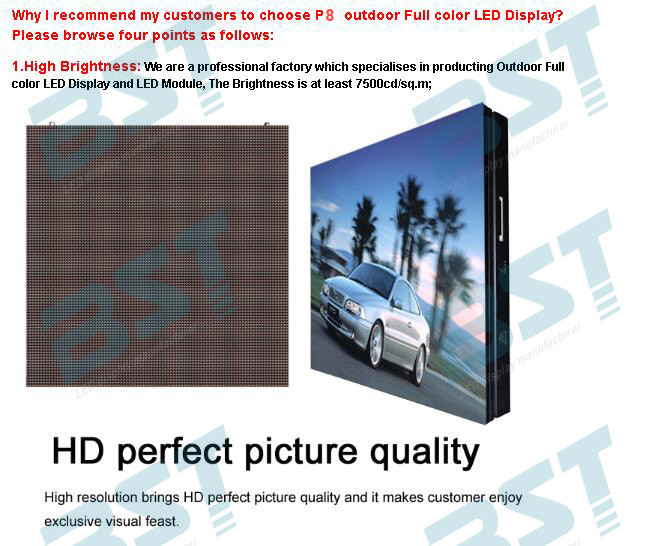

| Brightness | ≥ 6000 cd/㎡ | ≥ 6000 cd/㎡ | ≥ 6000 cd/㎡ |
| Power Consumption | Avg: 250 W/SQM | Avg: 250 W/SQM | Avg: 250 W/SQM |
| Gray Level (Colors) | 16.7 million | ||
| Viewing Angle (H/V) | 140°/140° | ||
| Lifespan | 100,000 hours at 50% brightness | ||
| Operating Temperature | -20℃~ +60℃ | ||

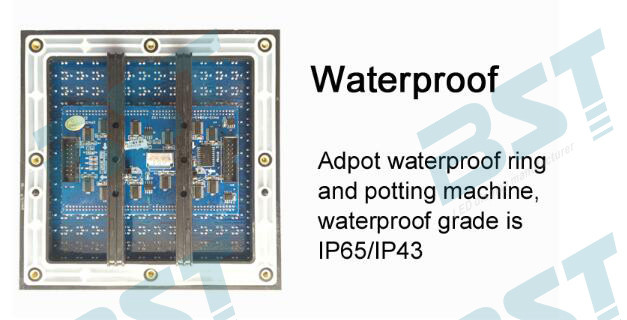

| IP Rating | IP65 Front, IP54 Rear | ||
| Control System | Novastar/Linsn | ||
Product advantages:
1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Quality advantage: From material to finished product, from design to produce, we control all steps
3) Service advantage: Better service at same situation, better cooperation at same service
Trade Terms:
1).Payment: T/T ,ususally 40% prepayment before production, 60% balance to be paid before delivering,it also change according to total quantity
2).Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days
3).Sample can be deliveried within 3days
4).Shipping port: Shenzhen, Mainland China
5).Discounts are offered based on order quantities
6).MOQ:1 sqm/1pcs
Our service:
1).Your inquiry related to our products or prices will be replied in 24hrs.
2).Well-trained and experienced staffs to answer all your enquires in fluent English .
3).OEM&ODM, any your customized screen we can help you to design and put into product.
4).Distributer ship are offered for your unique design and some our current models .
5).Protection of your sales area, ideas of design and all your private information
