Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | LED Type: | SMD3535 |
|---|---|---|---|
| Density: | 10000dots/sqm | Cabinet Size: | 1280mm X 960mm |
| Package: | Wooden Case | Brightness: | >5500nits |
| High Light: | outdoor advertising led display screen,outdoor full color led display |
||
5500nits 1/2 scan p10 outdoor LED display SMD Giant IP65 wateproof
Quick Detail:
1. Antiseptic and durable, can be used outdoor in all weather.
2. Good quality led trip with low led attenuation, long lifespan
3. Good resistance to deformation with high hardness body, thickness: 170mm.
4.Energy Saving≥50%, Environment Protection
5.Free Back Service Path, Excellent Display Effect
6.Stable performance, wide applicability, high brightness, high protection grade.
7.High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.
8.Installation become easily and more fasten with side locks on panel sides
9.The cabinets, featuring great moisture and corrosion proofing, enable themselves to work in all weather conditions.
10.Wide application field & short ROI time:
11.First-class LED chip:
LED display series
1. Indoor LED Display: P1.6,P1.9,P2.5,P3, P4, P5, P6, P7.62, P8, P10, P12
2. Outdoor LED Display: P6, P6.25, P6.94, P7.62, P8.928, P10, P12, P12.5, P14, P16, P20, P25 ,P31.25, P45
Specification:
| P10 Outdoor Advertising LED Display Screen | |
| Items | Specifications |
| Pixel Pitch(MM) | 10 |
| Pixel Composition | SMD3in1 |
| LED Encapsulation Type | SMD3535 |
| LED Chip | Epistar + Silan + Nicha + Opto |
| Pixel Density(Dots/M2) | 10000 |
| Module Size(MM) | 320 x 160 |
| Module Resolution(Dots) | 32 x 16 |
| Cabinet Size(MM) | 1280x 960mm |
| Cabinet Resolution(Dots) | 128 x 96 |
| Maximum Brightness | 5500cd/sqm |
| Before Dot to Dot Correction | 5500cd/sqm |
| After Dot to Dot Correction | 5000cd/sqm |
| Brightness Adjustment Range | Auto Stepless Continuous Adjustment |
| Color Temperature Adjustable | 3200K - 10000K |
| Best View Distance(M) | 10m - 180m |
| Horizontal View Angle | 140 deg |
| Vertical View Angle | 140 deg |
| Signal Processing | 16bit |
| Control Mode | Synchronization |
| Driving Mode | 1/2 scan |
| Contrast | 3000:01:00 |
| Colors | 549 Trillion Billion |
| Gray scale per color | 26720 level |
| Video Frame Frequency | More than 60HZ |
| Refresh Rate | 600-3000HZ |
| Lifetime | 100000 Hours |
| Maximum Power Consumption | Less than 600 w |
| Average Power Consumption | Less than 200 w |
| Cabinet Weight | 68 Kg |
| Working Voltage | 100-240V/AC 50/60HZ |
| IP Protection Rate | Outdoor Use |
| Screen Surface Evenness | Less than 0.5mm |
| Working Humidity | 10-99% |
| Storage Humidity | 10-99% |
| Malfunction Dot Rate | Less than 0.0001 |
| Display Screen Signals | RF, S-Video, RGB, RGBHV, YUV, YC |
| Wind Resistance | Level 12 |
| Shock Resistance | Level 8 |
Our service:
1).Your inquiry related to our products or prices will be replied in 24hrs.
2).Well-trained and experienced staffs to answer all your enquires in fluent English .
3).OEM&ODM, any your customized screen we can help you to design and put into product.
4).Distributer ship are offered for your unique design and some our current models .
5).Protection of your sales area, ideas of design and all your private information
6).Focused. We Believe Focus Makes Perfection. We Focus On LED Advertising Disputes
7).55+ Countries Projects Experience In The World So Far
8). Free Trainning: Installation, adjustment and operation
9). After-sales Technical Support: online analysis about product default ,operation demonstration
10). Free parts repairation and replcing during the warranty
11).Supervise installation on construction site (Optional)
Q1: How would I do when something was wrong with the screen?
A1: Professional engineers would offer onsite maintenance to your country.
Q2: How would I select LED screen that I need?
A2: The lower Pixel pitch,the more density,the more clear, the more expensive as well.
Q3: Where LED screen can be applied?
A3: It is seen everywhere in your life. Mall advertising;bank queue system,taxi top board ,stage background display and more.

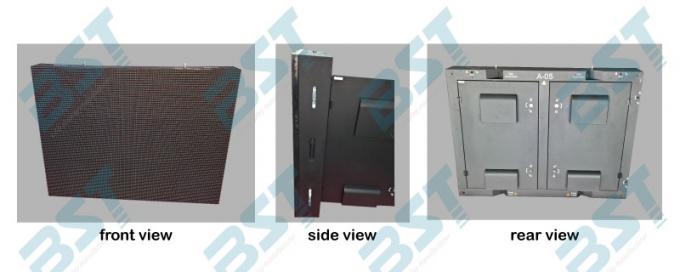

P10mm SMD outdoor advertising LED cabinet
Professional equipment for outdoor advertising led display
Quailty control test of outdoor advertising LED Display
Work Shop
