Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 2.5mm | Material: | Die Casting Aluminum |
|---|---|---|---|
| Led Type: | SMD212 | Cabinet Size: | 480mm X 480mm |
| OEM/ODM: | Yes | Brightness: | > 1000nits/sqm |
| Highlight: | advertising led display screen,led wall display screen |
||

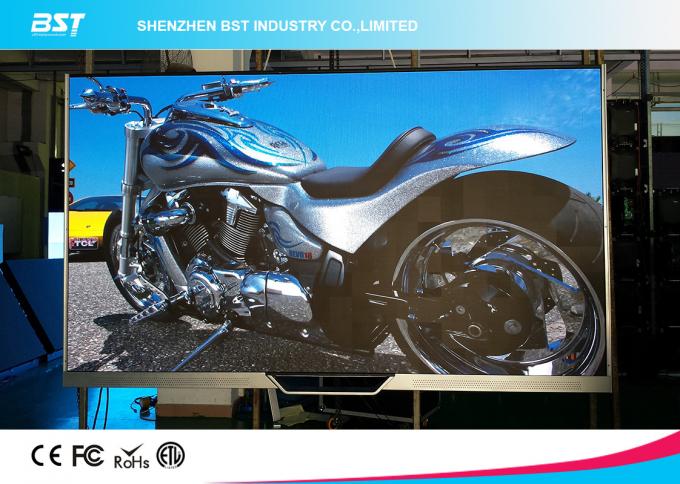

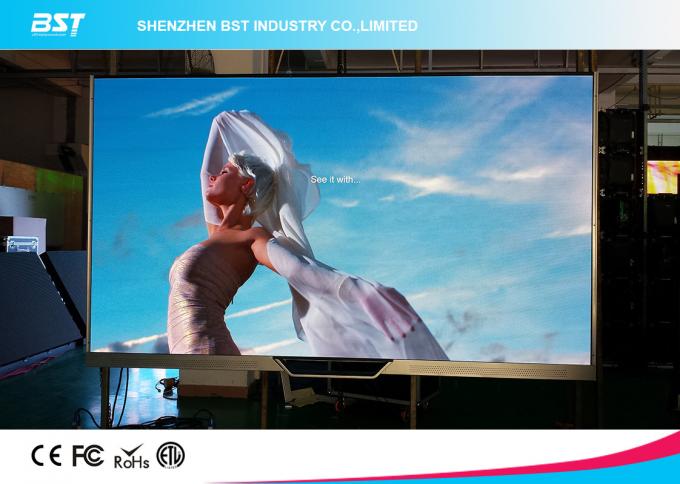

Large Indoor Advertising Led Display / High Definition full color led screen
Quick Detail:
1. First-level Led chip. Supplied by Nicha of Japan, CREE of USA, and other high strictly selected Led
chip to ensure long lifespan and high brightness of Led display screen system.
2. Random dismantling, convenient maintenance
3.Widely application field and short ROI time.
4. High Brightness can be adjusted, so can meet the request of the customers according the application environment.
5.Clear Vivid image qality displaying. Even in direct and full-on sunlight day to ensure you attract more
audience to get short ROI of your Led display screen's investment.
6. High refresh,Ghost-free image;
7. Good quality, commendable solve the problem of the mosaic, have the excellent consistency of light
8.Easy installation and programming. Easy and simple installation interface, use friendly software to ensure the user programme the Led display screen system.
9.Signal and power double backup for module interfaces
10.Customized design is available,OEM & ODM are welcomed.
11. High contrast ratio:4000:1. Which is a pretty high level to ensure vivid image of Led display screen
system.
Product Description:
Indoor Model Number:
P1.6/P1.9/P2.5/P3/P3.91/P4/P4.81/P5/P6/P6.25/P7.62/P10

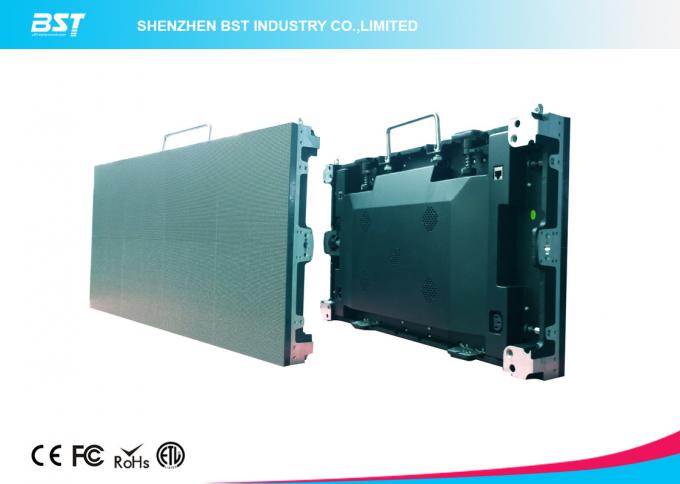

Iron&Die Casting Aluminum Rental Cabinet dimension:
480mm x 480mm
500mm x 500mm
500mmX1000mm
512mm x 512mm
576mm x 576mm
640mm x 640mm
768mm x 768mm
800mm x 800mm
960mm x 960mm
Outdoor Model Number:
P4.81/P5/P6/P6.25/P8/P10/P16/P20/P25/P31.25/P100
Iron&Die Casting Aluminum Rental Cabinet dimension:
480mm x 480mm
500mm x 500mm
500mmX1000mm
512mm x 512mm
576mm x 576mm
640mm x 640mm
768mm x 768mm
800mm x 800mm
960mm x 960mm
1280mmX960mm
Competitive Advantage:
1.Performance advantage: Best equality, high consistency ,big viewing angle ,can repair each led lights.
2.The cabinet adopts advantages in high strength, excellent ductility, and good precision and is difficult to deform.
3. Price advantage: we have the best competitive price and the same even better quality at the market
4.The cabinet design is simplified to be compatible within different dot pixels; also it is with good cooling design without fan or air condition etc. which reduces cabinet weight, and lowers noise; low installation cost and low consumption save operating cost.
5,Product advantage: we have 16 years experience to encapsulate.
6.Module designed cabinet is easily assembled and installed at any location, its maintenance is very convenient.
7.The led screen cabinet is light weight. It could be carried by one hand, could be installed quickly within 10 Seconds.
8.Service advantage: Better service at the same situation, better cooperation at same service!
Specification:
| Item | Parameter | |||
| Pixel Pitch | 2.5mm | |||
| LED Encapsulation | SMD2121/1R1G1B | |||
| LED Chips | Epistar | |||
| Module resolution | 96dots*96dots | |||
| Module size(mm*mm) | 240mm*240mm | |||
| Pixel density | 160000dots/m² | |||
| Weight | 07KG | |||
| Drive chip | MBI5124 | |||
| Drive Method: | 1/32 Scanning | |||
| Brand of power supply | CL/GE 5V~40A | |||
| Gray Scale | Recommended 256 level | |||
| The best viewing angle | Horizontal:140 Vertical:140 | |||
| Max Power Consumption | 350W/ m² | |||
| Control Mode | Video frequency synchronization | |||
| Optimal Viewing Distance | ≥3m | |||
| Brightness | ≥1000cd/m² | |||
| Blind Spot Rate | <0.0001 | |||
| Brightness Control | 0-255 Grade | |||
| Contrast | 100 levels adjustable | |||
| Earth Leakage Current | <2mA | |||
| MTBF | >5000Hours | |||
| Lifespan | >100000Hours | |||
| Power Supply Mode | AC220V/50HZ or AC110V/60HZ | |||
| Protection Level | IP41 | |||
| Humidity | 0%~90% | |||
| Operating System | Windows98/me/2000/NT/XP/WIN7/WIN8 | |||
| Operating temperture | Operation:-30°C~+60°C | |||
Applications:
Commercial advertising Led display screen, Stadium perimeter Led display screen, mobile trailer led display,led screen for mobile media, shopping mall led display, screen for logo showing,led display for bank or stock exchange rate showing, led moving sign for train and bus station, Led display screen for air port,telecommunication led display screen for information showing and instruction and ect.
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7)Warranty: 24 months, a little investment for longer warranty time.
8). We can provide customers a comprehensive solution delivery of series-related products
9). We can provide customers high quality products which allow they to scream
10). We can provide custom-made service.
11). We can provide customers one year free warranty, and support renewals extended
12). We can provide customers the free installation guidance and technical support
13). We willing to provide any countries and regions in the world with products and technical support. at present, our product has covered more than 100 countries and regions.
