Application:: | Outdoor Smd Led Display Screen | Viewing Angle:: | 140 H,140 V |
---|---|---|---|
Pixel Configuration:: | SMD1R1G1B | Luminance Of White Balance:: | ≥6500 Nits |
IP Rating(Front/Rear):: | IP65/IP54 | ||
Highlight: | outdoor advertising led display screen,outdoor full color led display |

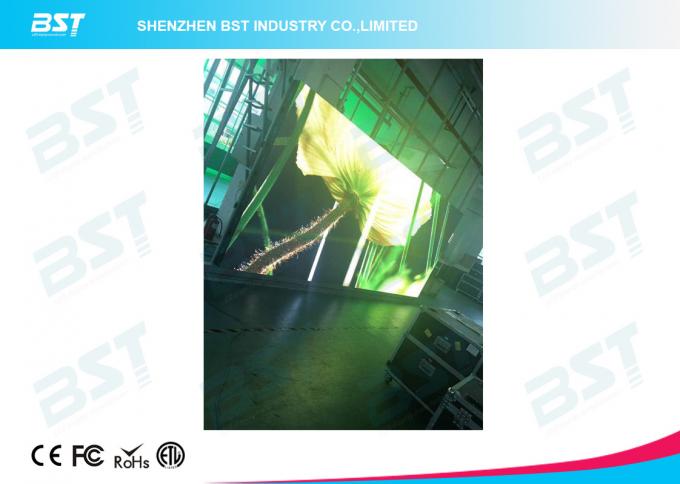

HD Floor Standing P8 Outdoor SMD LED Display RGB for Retail Store / Shopping Mall
Products Description:

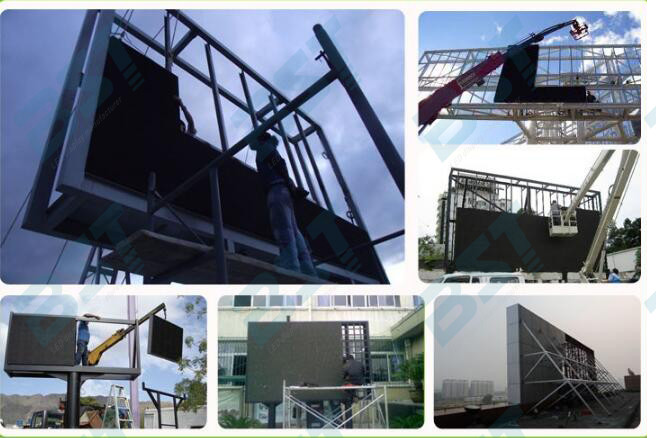

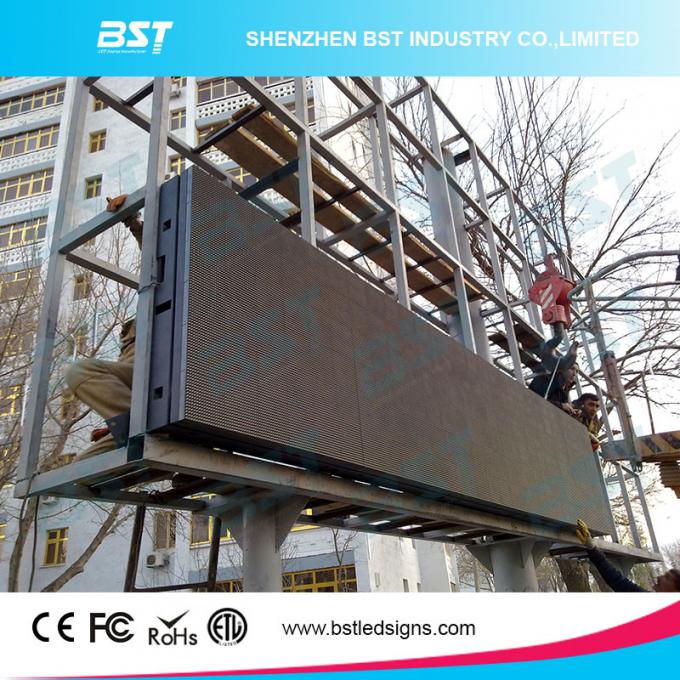

1.Hanging beam structural design makes it easy and fast for installation
2. Energy saving:low electric current,high-brigh lamps,equipped with PFC swithing power supply,save 30% electricity.

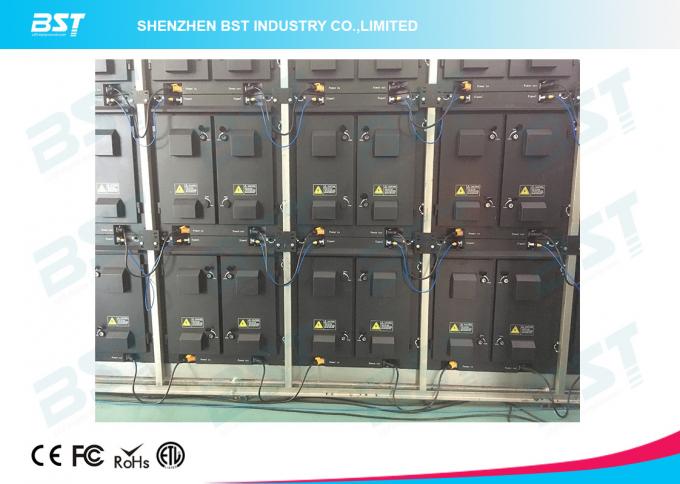

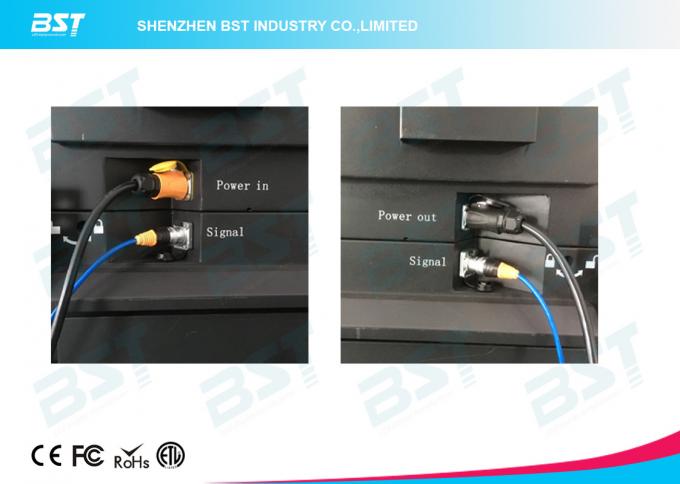

3. Neat and Hidden Wiring allow the display more tidy and beautiful.
4.. Good LEDs:use SMD3535 LEDs,it has excellent performance in antistatic ability and UV protection;Waterproof grade IP65,all weather available.

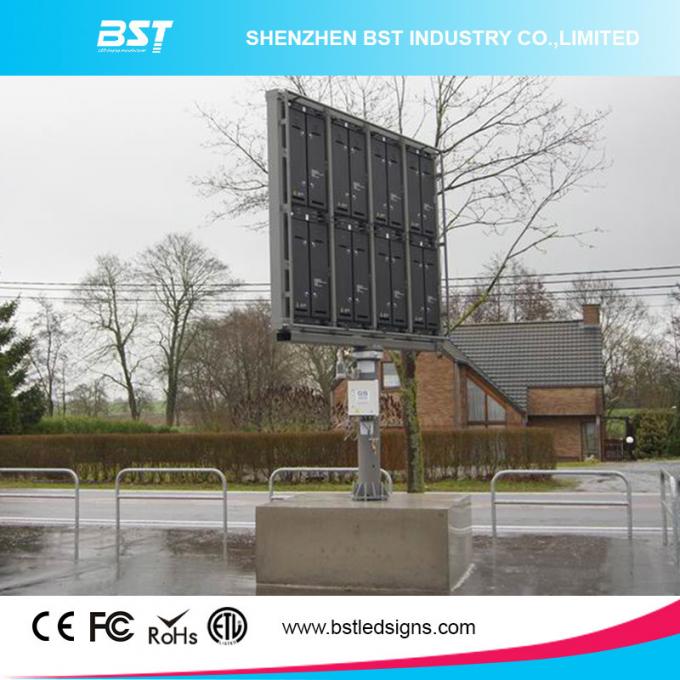

5.Hanging beam and the base come to unity, That is, hanging beam could be used as a base when we need to install display on
6. High refresh rate,high gray level:it can reach 16bit by using PWM driving IC,refresh rate is more than 1000HZ,the gray level is still high even under the condition of low brightness
7. The floor. Even no back frame, the base can support the whole display if only the display's weight is 4m more or less. Efficiently utilize resources, reduce costs, convenient for installation .
8.Long life time > 100,000 hours,Clear vivid image quality
9.Locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.
10.Can adjust the brightness auotomatically
11. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive

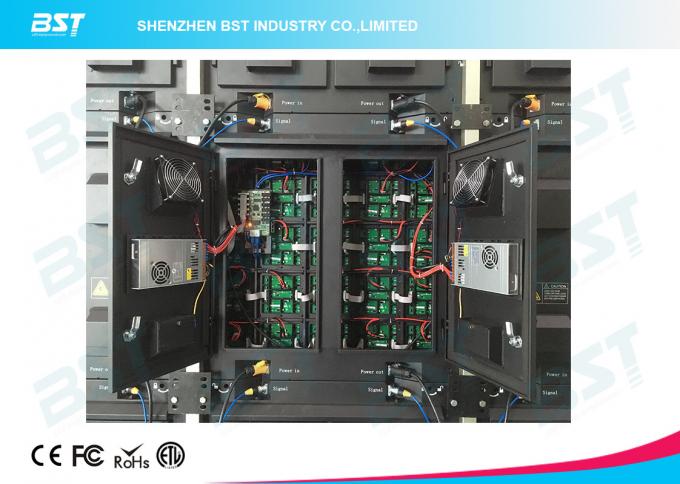

12. Good heat dissipation capability because of the unique design of vent fan.
Specification:

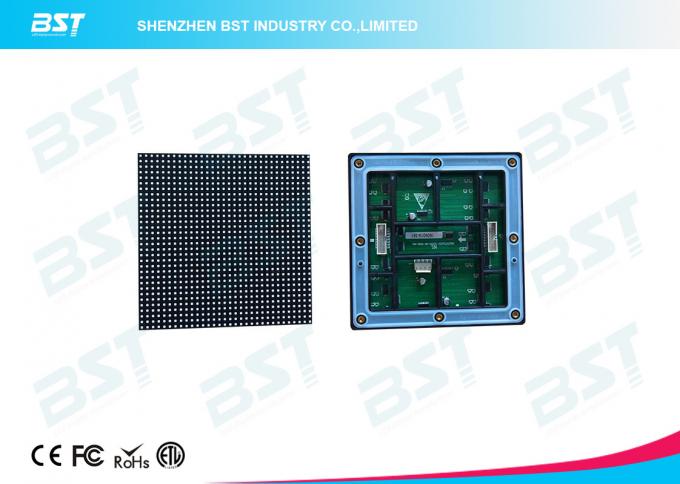

LED Module Parameters
Item | Parameter |
Model number | P8 |
Module size | 256x256mm |
Pixel pitch | 8mm |
Pixel density | 15625dots/m2 |
Pixel configuration | 1R1G1B |
Package mode | SMD3535 |
Pixel resolution | 32dots(W)*32dots(H) |
Max Power | 20W |
Module thickness | 30mm |
Weight | 0.6kg |
Drive type | constant drive |
scan mode | 1/4 scan |
Port type | hub75 |
Brightness of white balance | ≥6500cd/m2 |

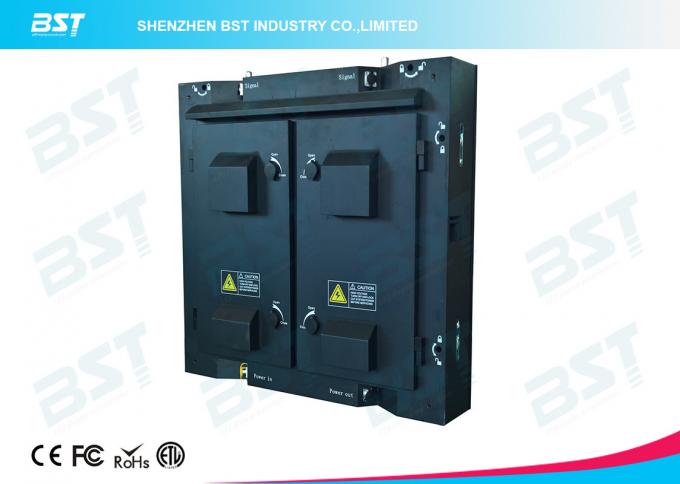

Cabinet Parameters
Dimension | 1024mm*1024mm |
Monomer Module Number | 16 |
Power supply | 5V/60A*3pc |
Thermal discharge | anto |
Pixel per cabinet | 128*128dots |
Best viewing distance | 8M~200M |
Best viewing angle | 120°(W)140°(H) |
Temperature |
storage:-35°C~+85°C working:-20°C~+50°C |
Relative humidity | 10%~95% |
Thickness | 150mm |
Screen Parameters
Power | Working voltage | AC220V/AC110V±10% |
Average Power consumption | 250W/m2 | |
Max Power consumption | ≤550W/m2 | |
Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4 or above P4 |
Operation systerm | WIN98/2000/NT/XP/WIN7 | |
Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
Refresh frequency | ≥1500HZ | |
Grey scale/colors | 4096 gray level/16.7M colors | |
MTBF | ≥10000hours | |
Fire rate | grade one | |
Display Mode | ≥800*600/1024*768 |

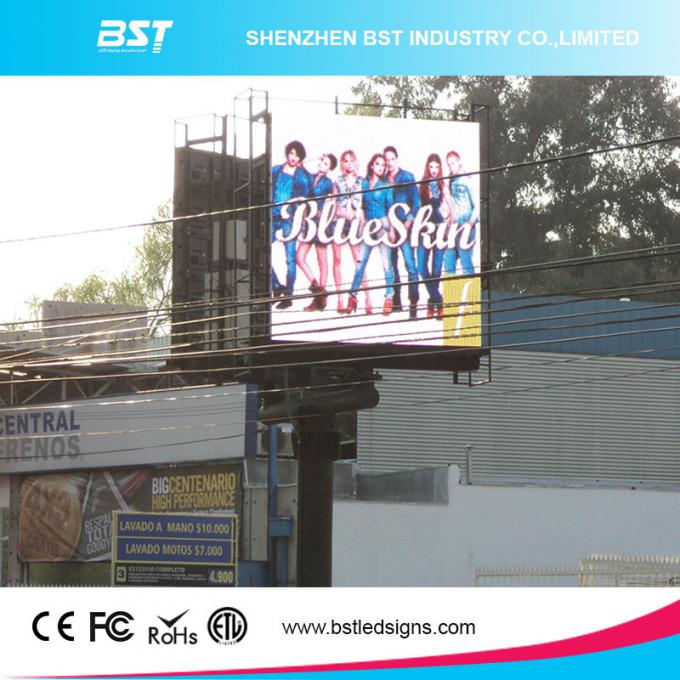

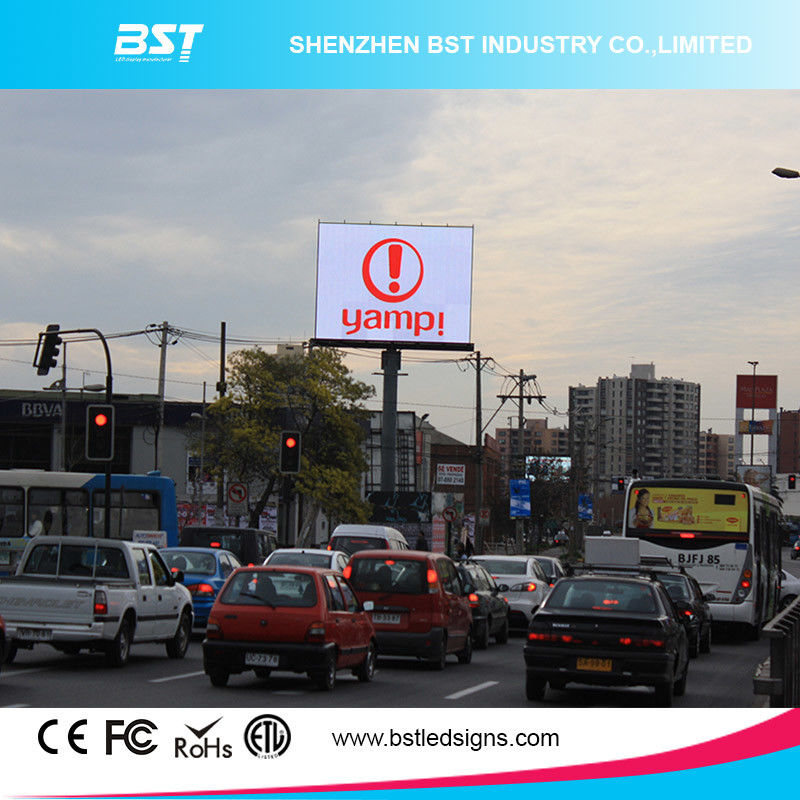

P8mm Outdoor advertising led display

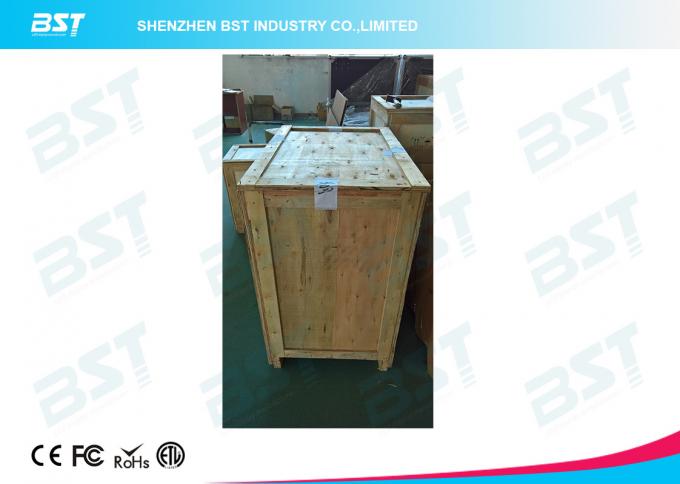

Packing and shipment
Application:

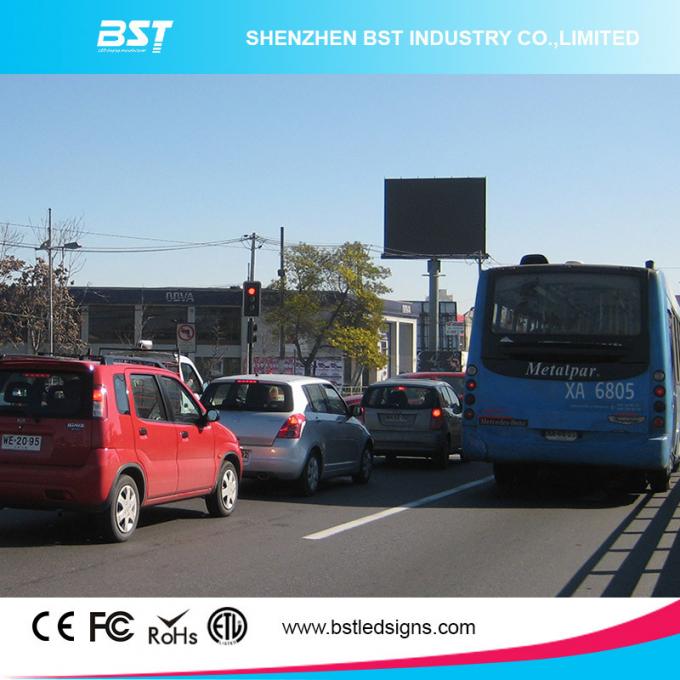

Stadium perimeter,Commercial advertising, business establishments,mobile media,, such as banks, stock exchange centers, telecommunications, customs, bus station, schools,stadiums, studio, shopping malls, airports, harbors,railways,etc;
