Product Details:
Payment & Shipping Terms:
|
| Power Supply:: | AC 110/220V | Display Function:: | HD Video,Image |
|---|---|---|---|
| Scan Mode:: | 1/16 Scan | Brightness: | 1200nits /sqm |
| Pixel Per Cabinet:: | 32768 | Color: | Full Color |
| LED Lamp:: | SMD2121 | ||
| Highlight: | LED Video Wall Screen,mobile led screens |
||

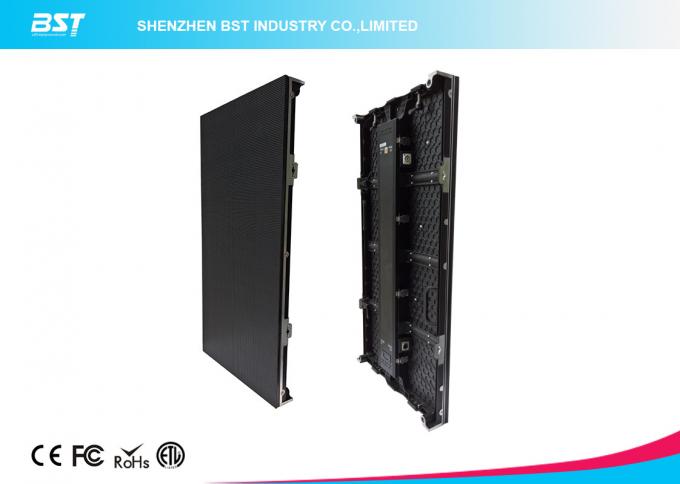

500*1000Mm full color led screen rental or fixed installation die casting aluminum
Products Feature
1.· Durable, reliable, precisely made Aluminum die-casting, fanless design Small expansion coefficient
2. Spring locks connect the cabinets vertically, hanging max 15 cabinets in a line;
3. Well-performing High contrast louver design with rain channel,Light tight design, no blocks on the image
BST processing with Radiant Calibration System
4. Macromolecular flexible mask with glareless surface and better contrast ratio;
5.· Slim .Perfect rounding off for 3m radius convex curve
6. Signal and power indicator & reset button well shows the working condition
of the whole screen;
7. Fast spring locks connect the cabinets horizontally, only 10 seconds for per
cabinet;
8. Light-weight 28kg/sq.m. for panel with light-weight sub-frame structure design
9. Nanotechnology and unique positioning system, making the installation and
dismantlement in one step;
10. BST robust electronics design
Specification:
|
|||
|
Pixel Pitch (mm)
|
3.91 |
||
|
LED Type |
SMD2121 |
||
|
Pixel Density (pixel/sq.m.) |
65536 |
||
|
Viewing Angle (H/V) |
140° / 140° |
||
|
Brightness(cd/sq.m.) |
1200 |
||
|
Refresh Rate(Hz) |
1920~4800 |
||
|
Optimized Viewing Distance (m) |
3~30 |
||
|
Average Power Consumption (W/sq.m.) |
272 |
||
|
680 |
||
|
Input Voltage
|
AC110V or AC220V±10% 50/60Hz |
||
|
Module Size in Pixel (W×H) |
64×64 |
||
|
Module Size in mm (W×H) |
250×250 |
||
|
Panel Size in Pixel (W×H) |
128×256 |
||
|
Panel Size in mm (W×H×D) |
500×1000×75 |
||
|
Weight (kg/Panel.) |
14 |
||
|
IP Rating |
IP43 |
||
|
Maintenance |
Rear |
||
|
Operating Temperature |
-10℃ ~40℃ |
||
|
Operating Humidity |
10~80RH% |
||
P3.91mm indoor full color LED Display
Controller connection
Packing and shipment

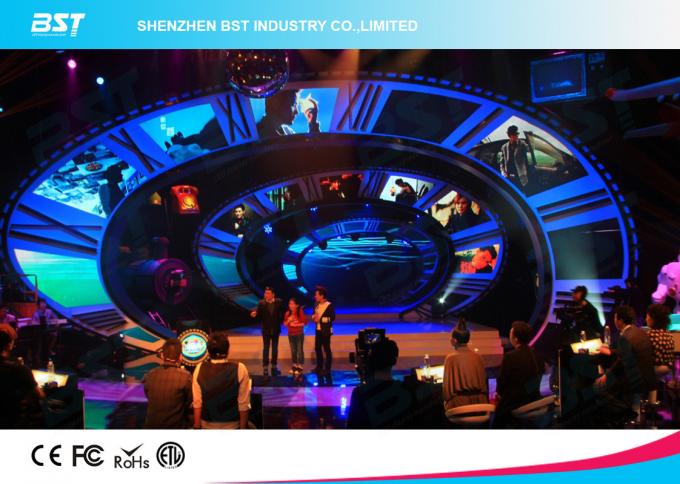

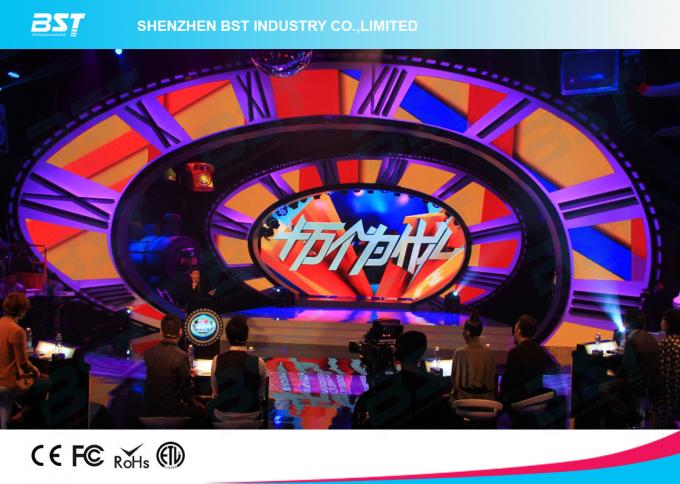

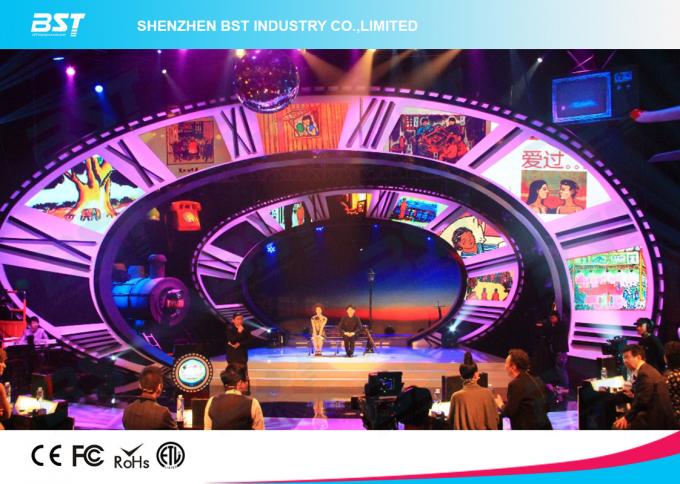

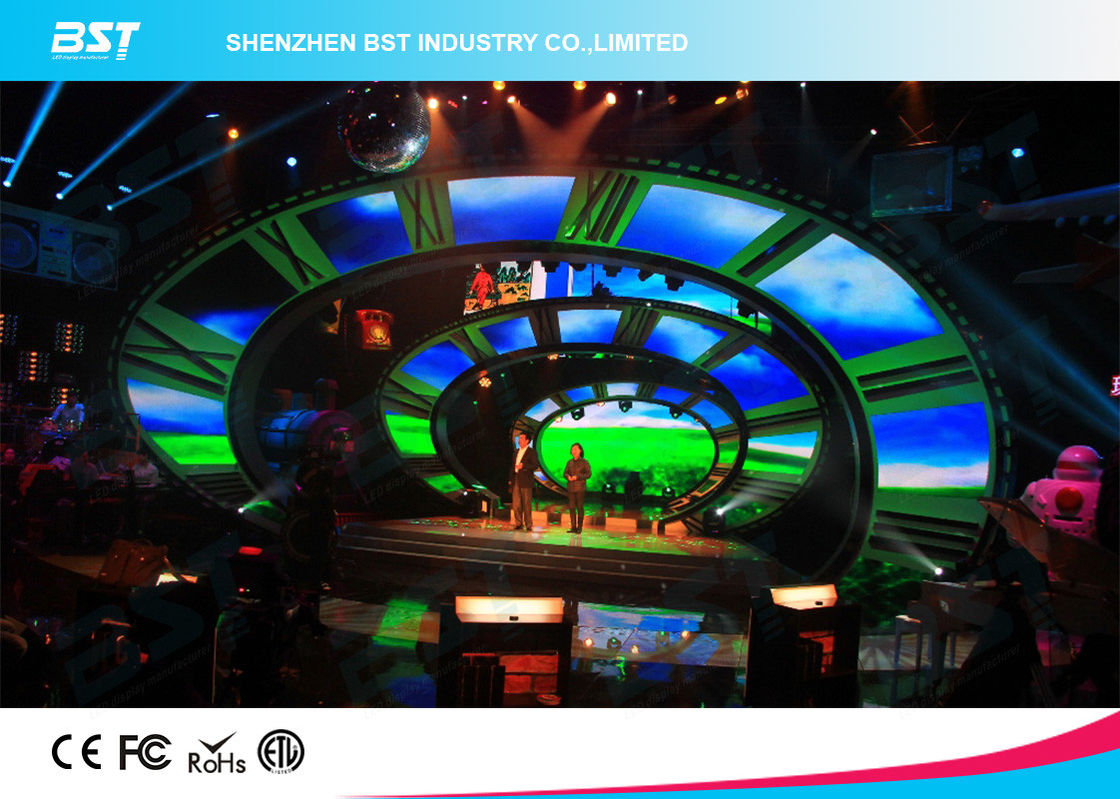

Applications:
various applications such as broadcasting studios, control rooms, command centers, monitoring centers, pavilions, conference rooms and etc.
