Product Details:
Payment & Shipping Terms:
|
| Density: | 40000 Dots Per Sqm | LED Type: | SMD2121 |
|---|---|---|---|
| Module Size: | 320mmX160mm | Cabinet Size: | 960mmX960mm |
| Warranty: | 2 Year | OEM: | Yes |
| Brightness: | >1500nits/sqm | Refresh Rate: | >1500hz |
| Color: | Full Color | Drive Mode: | 1/16 Scan |
| Service: | Front And Rear | Package: | Wooden Case |
| High Light: | flexible led screen,flexible led video screen |
||

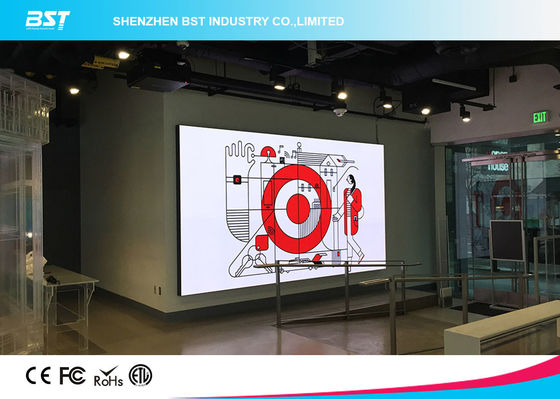

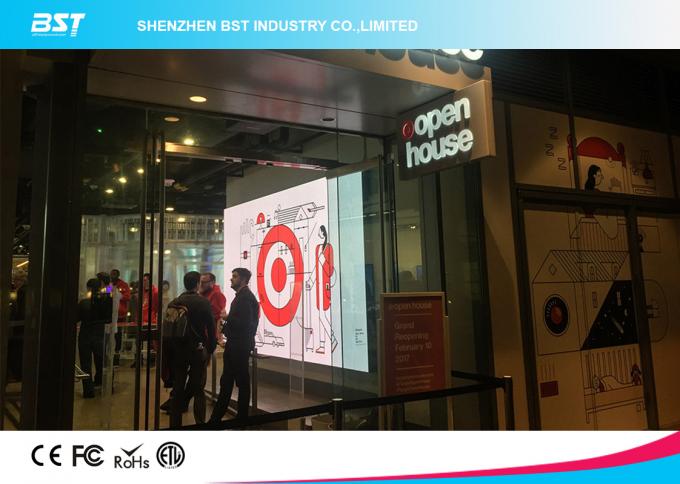

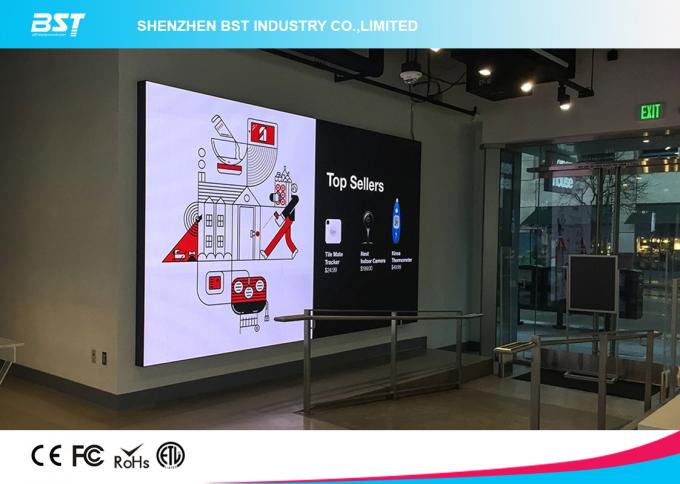

P5 Flexible LED Display , LED Video Curtain HD resolution for shopping center
Quick Detail:
1), the pitch size you need or project information
2) ,the height and wide of led curtain or stage
3), Shipping address in detail.
Features
1)Foldable. Fold like cloth, can match any shape and size of your requirement. The LED Display widely used for preparation of various 2D and 3D shapes such as round,triangle, cylinder, and cone, etc
2)Light. The LED Display is smart and light. Saving space and the transportation cost.
Installation & Maintains
1) The LED Display is easy to Install and maintains. No tools. Just your hand.
2) Finishing installation and debugging of 5 square meters takes just 1 hour, labor cost saving a lot.;
Quality
High quality with the high refresh rate. All the refresh rate are more than 1500Hz
Application
Shopping center, concert room, exhibition, showroom, shop, train station, airplane station etc.
Description:
1.Warranty:
1), We guarantee all our displays, modules, parts for two full year.
We will provide maintenance for a lifetime and charge for the raw materials only
2), Free spare parts come with each order
3), 24 hours technical support
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on when you required.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight case, structure information for your reference for free.
Specifications:
|
Model No. |
BST-FL-5-F |
|
Pixel Pitch |
5mm |
|
Module Size |
320mm×160mm |
|
Module Resolution(Pixel) |
64dots×32dots |
|
Pixel Density |
40000dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/16 Duty Constant Current |
|
Cabinet Size |
Depends |
|
Cabinet Resolution |
depends |
|
Brightness |
≥1500cd/cd2 |
|
Contrast |
≥4000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Minimum Viewing Distance |
5m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
300W/m2 |
|
Average Power consumption |
1000W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85HZ |
|
Refresh Frequency |
>1500HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C~+85°C Working:-20°C~+60°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000/Win 7/Win 8 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LINSN OR DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP40 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
