|Product Name:||LED Display Screen||Viewing Angle::||H:140° V:140°|
|LED Encapsulation::||SMD3535||Physical Pixel Density::||10000dots/sqm|
|Input Voltage::||AC220V/50Hz ±10%||Customed:||Yes|
curved led panels,
hd led screen

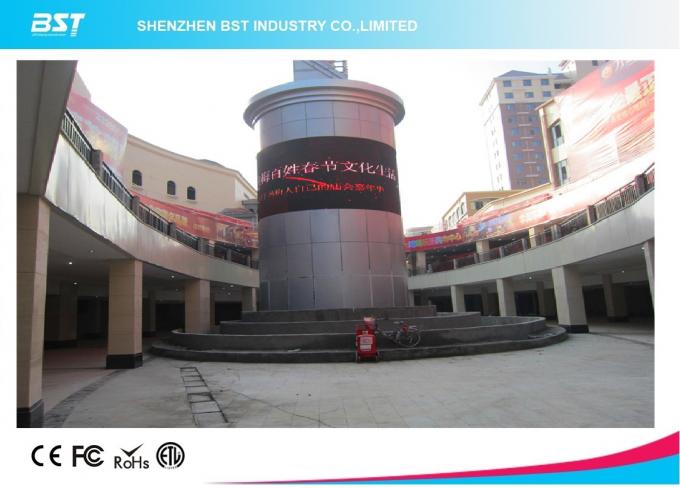

P10 Commercial Curcle Curve Led Display Advertising With Front & Rear Service
1. Pixel pitch: 10mm
2. Brightness: ≥7000 CD/sqm
3. Cabinet Size: 640*1280*90mm
4. Cabinet Weight: 50kg
1. IP67, Fast Installation and Maintenance
IP67 for modules, meets outdoor naked installation requirement, which can for front & rear 2kinds of maintenance way.
Design based on module, which saves installation and maintenance cost, fast speed, maintenance with power on.
Its transmittance is over 7% and gain the homogeneous emission. No fans, no air conditioning and save cost.
The thickness of the whole cabinet is only 90mm and it is 50mm thinner than the routine cabinet.
Front-maintenance module is convenient for disassembly and assembly. this nice design for the module front service, only need a tool to screw 2holes, then the module can be replaced.
It can save more than 50% energy compared with the conventional display.
Waterproof, dustproof, airproof and all-sealed design, IP67, 100% water proof.
7.Ventilated & Light-proof, Energy Saving≥50%
Outdoor HD LED Display Leader, very mature product. Initial creator for such panel, ventilated & light-proof. Super slim, light weight, can meet the most demanding requirements.
Using the high brightness led light with the lowest consumption, saving energy ≥30%, with 28 core technology patent, whole saving engergy≥50%, energy saving and environment protection.
8.Firm, Flat and Backup Solution
Dark black surface, firm and flat, anti-UV module parts, which grantee screen in firm shape.
Power supplier and control system, backup solution is available to grantee.
Camera optional, Lan cable, 3G, WIFI, Multi-control, Ethernet for data transmittance options.
9.Types Standardized LED Module, Excellent Display Effect
Standardized ventilation led module has 5 types, P6.67mm, p8mm,P10mm,P16mm,P20mm, make it possible for customer to upgrade the screen to smaller pixel pitch, increase the secondary marketing opportunity and maintain good relationship.
Broadcast color gamut, intelligent adjustment for color temperature and brightness. Uniform color, high contrast, the picture is vivid and nature.
Ideal for outdoor advertisement media, government& enterprise project culture & tourism, sports, propaganda Image, commercial real estate.
|Pixel Pitch,Resolution rate,size||10mm,32*32 Dots,640*1280*90mm|
|Pixel color, Pixel LED||1R1G1B, SMD3535|
|Working voltage,Module Power||DC5V,45W|
|Driving IC,Driving way||MBI5041B,1/4scan|
|Resolution rate,size,Module quantity||32*32 Dots,640*1280*90mm,2*4|
|White balance ,Color temperature||6500CD/,6500-8000K|
|view angel,Non-Flatness,Module interval||H:140°;V:140°,<1mm,<1mm|
|Maximal power/,Average power/||680 W/,220 W/|
|Frame frequency,Refresh frequency,Gray grade||60Hz,3840Hz,13bit|
|Control system,System supports||Novastar / Linsn /,Windows XP,WIN 7,|
|Working temperature,Protection grade||-20ºC - +50ºC,Front/Back:IP65/IP65|
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 10-15 working days
