Density: | 32768 Dots Per Sqm | LED Type: | SMD2121 |
---|---|---|---|
Module Size: | 500mmX250 Mm | Cabinet Size: | 500mmX500mm |
Warranty: | 2 Year | OEM: | Yes |
Color: | Full Color | Transparent Rate: | 60% |
Cabinet Materials: | Acrylic Glass,Aluminium Alloy | Brightness: | >1200nits/sqm |
Refresh Rate: | >1200hz | ||
Highlight: | transparent led display,transparent video display |

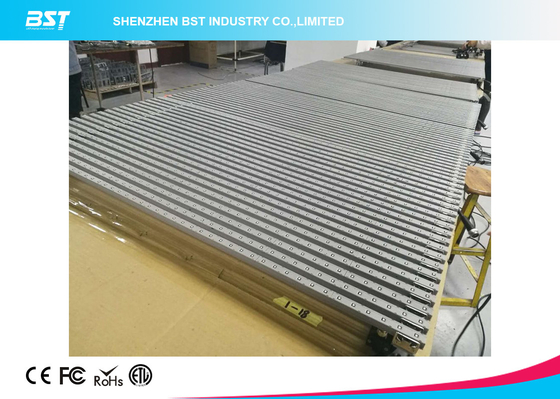

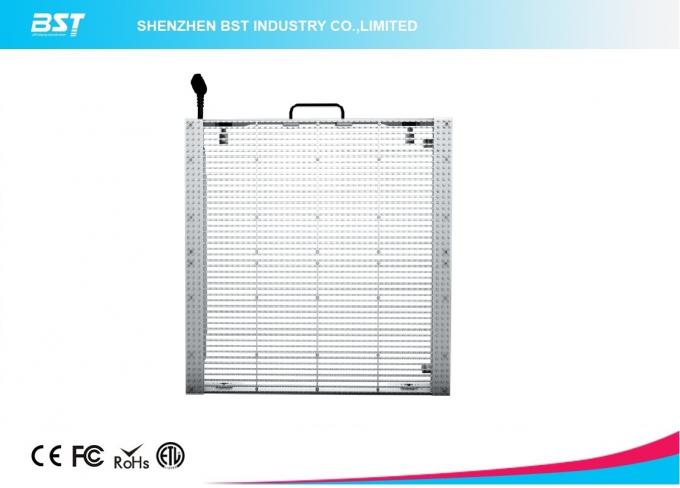

SMD2121 P3.91 Transparent LED Screen LED Mesh Curtain Super Clear Vision

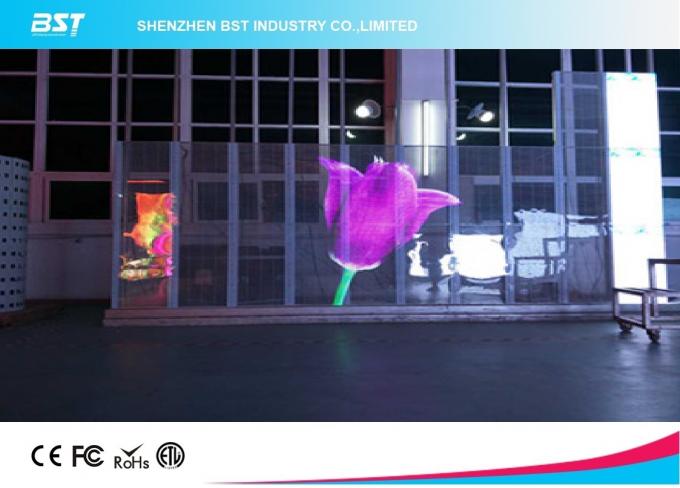

Transparent led screen is to create special stage lighting effect. It is ultra-thin and super-light, transparent, low power cost,can be mounted on ceiling or install as a bankdrop of the stage to make an amazing LED stage. It shows some video as well as stage lighting
Quick Detail:
1,easy to install.
2,Slim:only 18mm screen thickness.
3,High transparent image: transparent rate 60%.
4,Cost-saving:saving above 50%energy than traditional LED screen.
Features:
Highly transparent, better color performance.
Simple and easy to operate, install and transport.
Lightweight, quick-connect hanging brackets guarantee fast build-up and tear-down.
Silent system by fan-less design.
Cost-effective, create visual effects at special events on a limited budget.
Perfect for entertainment venues, events, exhibitions and architectures with long viewing distances.
It allows audio, wind, light and smoke to pass through, presenting dramatic effect. With a transparency factor of 60%.
Applications:
indoor applications, at music festivals, theatre, concert, large tradeshow booths, etc.
Specifications:
Pitch | P3.91-7.81 |
Pixel Resolution | 32768pixels |
Module Resolution | 128*32pixels |
Module size | 500mmX250mm |
LED type | SMD2121 |
Cbinet Size | 500mm*500mm |
Cabinet Materials | Acrylic Glass,Aluminium Alloy |
Weight | 7kg/ m² |
Transparent Rate | 60% |
Brightness | ≥1200nits |
Frame Rate | ≥60Hz |
Refresh Rate | ≥1920Hz |
Average Power Consumption | 120w/m² |
Max power consumption | 400w/m² |
Grey Scale | 14-16bits |
Working Voltage | DC5.0v |
Vewing Angle | H140° and V140° |
Working Environment | Temperature-10ºC-40ºC,Humidity10-90% |
MTBF | ≥100000 Hours |
