Product Name: | P10mm Curtain Led Display | Pixel Picth: | 10mm |
---|---|---|---|
LED Type: | SMD3528 | Density: | 10000 |
Module Size: | 240mmX320mm | Panel Size: | 480mmX960mm |
Color: | Full Color | Brightness: | >1500nits/sqm |
Refresh Rate: | >1920hz | Transparent: | >55% |
High Light: | High Refresh Stage Led Curtain Panel,P10 Led Curtain Display,Full color P10 Led Curtain Display |

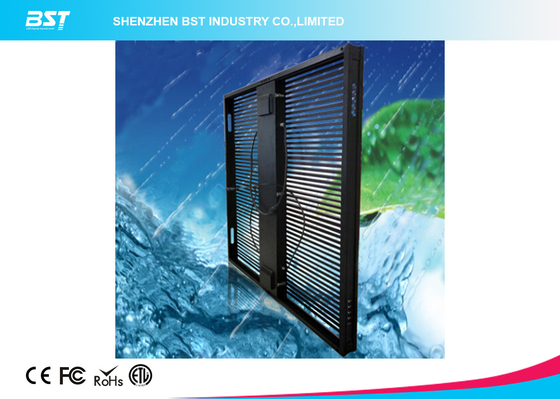

Full color P10 Led Curtain Display and High Refresh Stage Led Curtain Panel
Quick Detail:
1. Low maintenance
2. Precisely designed
3. Easy installation and dismounting
4. Ultra thin and super light
5. High refresh rate
6. Vivid picture and fantastic color
Features:
1. Easy installation, user can surface install and support any irregular shape, easy to connection, support signal double direction transference.
2. Flexible Easy shipping.
3. Supper transparent.
4. High brightness, low attenuation, high reliability, high consistency.
5. Aluminum alloy structure, high intention, low weight.
6. High level 65536, high refresh rate>1920Hz
7. Each unit is build inside power supply and integrate intelligent control module.
8. can be used as window advertising display, dynamic.
9. Ultra Slim and lightweight design.
Application:
Stage background, led video wall for a great campaign, ceremony and other activities.
Description:
Ph10 curtain led screen is a series for stage performance effects, rental events, live concerts, shows, this type of curtain led display usually half transparent, the effect is more than important than resolution.
- Light weight cabinet 960x480mm
High refresh rate>1920HZ
- Brightness >1500 nits.
- Stable quality image.
- Long life span.
- Cost effective solutions.
- Curved type cabinets available.
Generally, the curtain screen is decoration and style are fashionable, make people feels very comfortable. In such an upper-grade environment If with a Curtain LED display, it would add a sense of high tech to the store or event, outstanding its characteristics, more attractive and impressive.
Available pitches: P8mm ,P10mm, P12.5mm
Specification:
Model
|
P10mm aluminum LED curtain video wall |
Pixel pitch | 10mm |
Pixel density | 10,000dots /sqm |
Module size ( W * H ) | 240mm ( width ) * 320 mm ( height ) |
Module pixels ( W * H ) | 24 dots * 32 dots |
Pixel configuration | 1 Red 1 Green 1 Blue |
Drive mode | constant current driving 1/8 scan |
LED lamp type | SMD3528 |

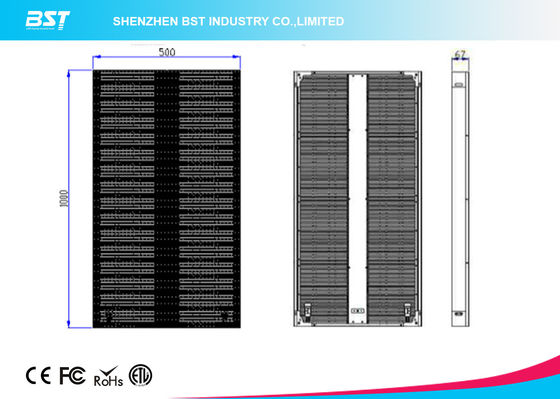

Cabinet size ( W * H ) | 480mm*960mm |
Cabinet resolution | 48*96 dots |
Net weight | 9.3Kg / cabinet |
Color scale | 65,536 degree |
View angle ( H / V ) | 140 / 140 degree |
Brightness ( White balance ) | >1500 nits / SQM. |
Power consumption | Max : 300W / cabinet , Average : 100W / cabinet |
Inputting Voltage | 100-240 Voltage 47--63Hz |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%-95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.5mm Juncture |
Frame frequency | 60 Hz/s |
Refresh rate | ≥1920Hz /s |
Control distance | 100m ( without repeater ) , single mode fiber : 20km , |
multi mode fiber : 500m | |
LED control system | LINSN , Nova-star are selectable |
Operating system | Windows Xp / Windows 7 / windows 8 / 8.1 / windows 10 |
Protection grade | IP40 |
Maintenance way | Rear Access |
Accepting signal with video processor | HDMI , PAL , NTSC , HDMI , BNC , TV , SDI , VGA ,Media player etc . |
