Product Details:
Payment & Shipping Terms:
|
| Product Name: | P16mm Outdoor Led Curtain Display | Pixel Picth: | 16mm |
|---|---|---|---|
| LED Type: | SMD3535 | Density: | 3906 |
| Module Size: | 320mmX320mm | Panel Size: | 640mmX640mm |
| Highlight: | led stage curtain,led video curtain |
||

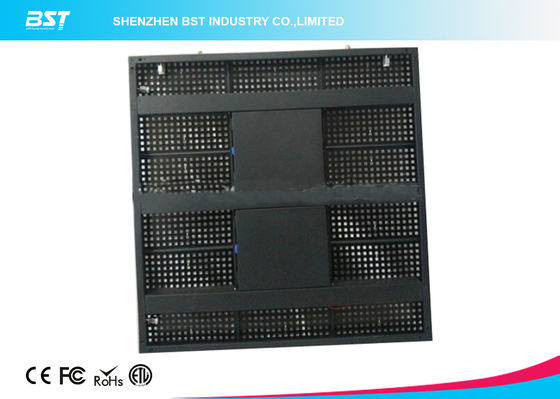

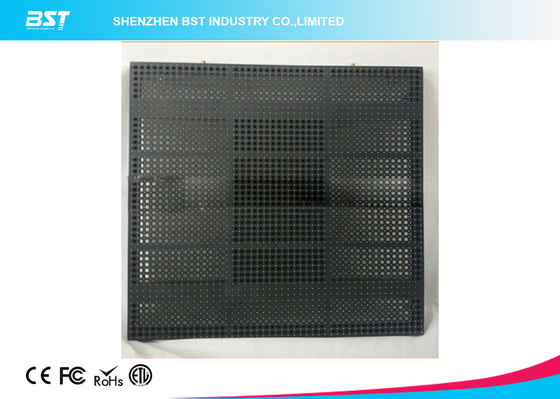

High Resolution P16 Folding Led Screen / Led Video Curtain Rental
Quick Detail:
1, Lightweight & Pretty Thin
2. Clear vivid image quality
3. Cabinet connection angle can be adjusted by -15 degree to +15 degree
4. High transparence, excellent heat-sinking
6. Truly seamless design and multi-angle splicing

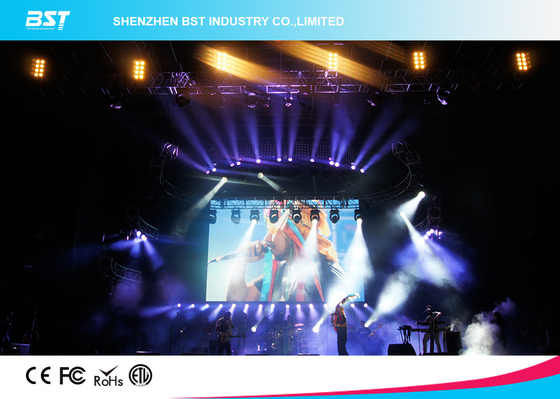

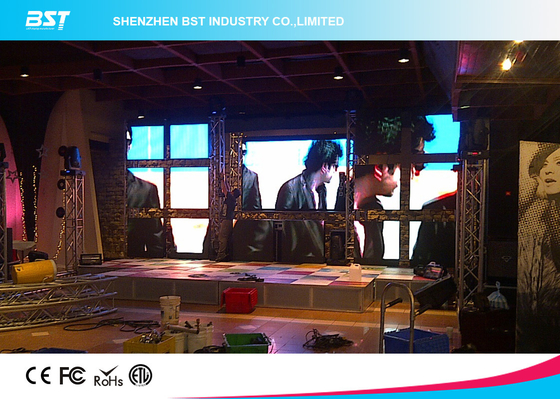

Application:
Stadium perimeter,mobile media,wedding, openning, promotion, bus station, customs, stadiums, studio, railways, airports, harbors, shopping malls, such as banks,schools, telecommunications, night club, business establishments, entertainment events,Commercial advertising, stock exchange centers,etc;
Parameters of BST-ORC-16
|
Technique |
SMD |
|
Pixel structure |
1R1G1B 3in1 |
|
Pixel pitch |
16mm |
|
Pixel density |
3906 dots/㎡ |
|
Luminance |
5, 500 cd/㎡ |
|
Cabinet dimension |
640* 640mm |
|
Cabinet resolution |
40* 40 |
|
Cabinet area |
0.409 sq. meter |
|
Optimal visual distance |
>16m |
|
Visual angel |
140 degree (H/V) |
|
Max power consumption |
≤900w / ㎡ |
|
Average power consumption |
≤500w / ㎡ |
|
Brightness adjustment |
Adjust according to the environment |
|
brightness software (0%-100%adjustable) |
|
|
Drive mode |
Static scan, constant current |
|
Input voltage |
AC110/220 volts |
|
Operation temperature |
﹣40℃~ +60℃ |
|
Operation humidity |
10％～90％ |
|
Inout signal |
S-video, RF, RGB, Yuv, YC, composite… |
|
Control system |
DVI card + master control card + receiver card |
|
MTBF |
>5000 hrs |
|
Life span (50% brightness) |
100, 000 hrs |
|
Malfunction dot rate |
1/10000 |
|
Ingress protection rate |
IP65 |
|
Transparency ratio |
50% |
|
Cabinet material |
Epoxy paint coated aluminum |
|
Application: |
Rental / Permanent installation available |
Description:
1. Easy to install and dismantle
2. Lightweight :< 11KG/panel.
3. Natural cool system design and good heat dissipation
4. Multiple usage of one screen possible;
5, Low noise generation and high cost-performance ratio
