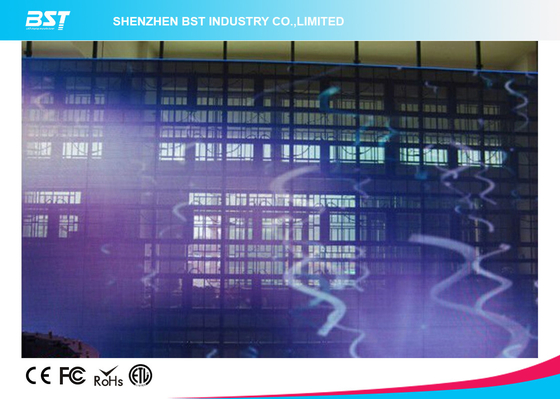

Super Slim Rotating Led Curtain Display , P12.5mm Led Stage Curtain Screens
Quick Detail:
1, Accurate color uniformity and smoother, flicker-free video
2. Low noise generation and high cost-performance ratio
3. Cabinet connection angle can be adjusted by -15 degree to +15 degree
4. Light weight and super transparency ratio
6. Fast Lock System & No Fan Design

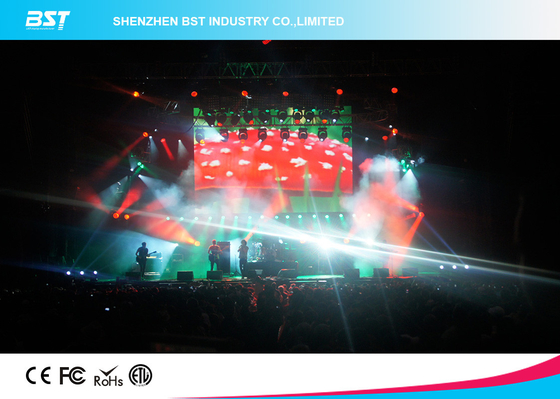

Application:
Stadium perimeter,weddings, openings, promotions customs, stadiums, studio, railways, airports, harbors, shopping malls, such as banks,schools, telecommunications, night club, business establishments, entertainment events,mobile media, bus station,Commercial advertising, stock exchange centers,etc;
Parameters of BST-IRC-12.5
|
Model No.
|
IRC-12.5
|
|
Pixel Pitch
|
12.5mm
|
|
Module Size
|
200mm*400mm
|
|
Module Resolution (W*H)
|
16 dots*32 dots
|
|
Pixel Density
|
6400 dots/ ㎡
|
|
LED Type
|
SMD 3528
|
|
Pixel Configuration
|
1R1G1B
|
|
Wavelength (R.G.B)
|
R:625±2nm G:525±2nm B:470±2nm
|
|
Drive Mode
|
Dynamic 1/4 Duty Constant Current
|
|

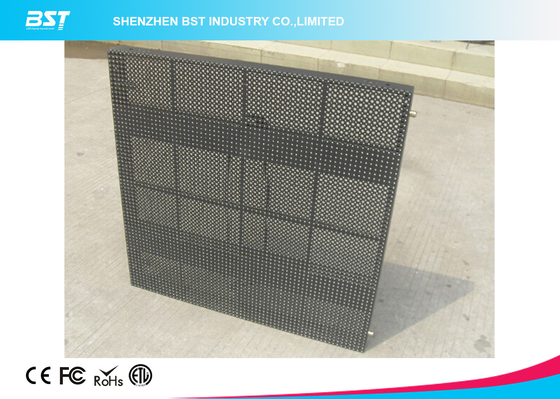

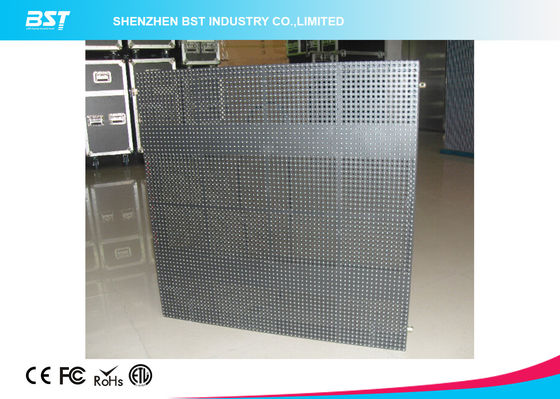

Cabinet Size
|
400×800×75mm
|
|
Cabinet Resolution
|
32dots×64dots
|
|
Brightness
|
≥1200cd/㎡
|
|
Contrast
|
≥2000:1
|
|
Viewing Angle
|
140°(Horizontal )/140°(Vertical )
|
|
Best Viewing Distance
|
10m-300m
|
|
Grey Scale
|
10bits/1024levels
|
|
Color Capability
|
16777216
|
|
Color Temperature
|
5000-9300K
|
|
Maximum Power Consumption
|
500 W/m2
|
|
Average Power Consumption
|
200 W/m2
|
|
Working Voltage
|
AC 220V/110V s±15% 50-60 HZ
|
|
Frame Frequency
|
60-85 HZ
|
|
Refresh Frequency
|
240 - 1000HZ
|
|
Brightness Correction
|
Pixel, Module, Cabinet Correction
|
|
Operating Temperature
|
-40~+65℃
|
|
Operating Humidity
|
10-90% RH
|
|
LED Lifespan
|
100,000 hours
|
|
MTBF
|
≥50,000 hours
|
|
Computer Operation System
|
Win 98/ Win XP/ Win 2000/Win 7/Win 8
|
|
Video Signal Input
|
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
|
|
Video Signal Output
|
RF, S-Video, RGB, RGBHV, YUV, YC etc.
|
|
Graphics Card
|
DVI Graphics Card
|
|
Control Distance
|
LINSN / NOVA / DB-STAR
|
|
Software
|
LED studio 10.0
|
|
Waterproof Level
|
IP65(Front Side), IP54 (Back Side
|
|
Installation
|
hung and stand
|
|
Out of Control Rate
|
0.01 %
|
Description:
1. Most user-friendly stage LED screen
2. Smart cabinet with lock design, ensuring fast maintenance during the event
3. Angle-adjustable connection parts between cabinets; each cabinet side with 7.5 degree curved angle
4. Multiple usage of one screen possible
5,Excellent heat release performance
